Duplexer Celwave
Rp11.850.000
Duplexer Celwave, duplexer VHF frekuensi VHF 138-150 MHz, 150-162 MHz, 162-174 MHz, duplexer UHF frekuensi UHF 355-406 MHz, 406-450 MHz, 440-470 MHz, 406-450 MHz, 406-470 MHz.
In stock

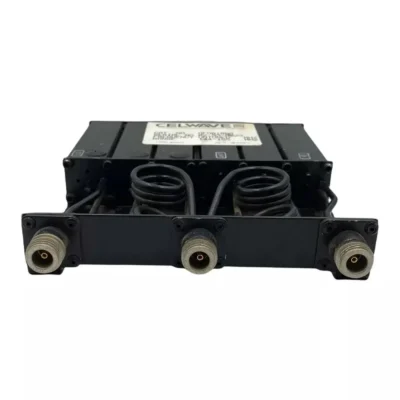

Duplexer Celwave
Duplexer Celwave, alat canggih untuk komunikasi radio yang membuat pengguna dapat mengirim dan menerima sinyal secara bersamaan melalui satu antena.
Dibuat untuk berbagai pekerjaan yang menggunakan radio komunikasi dan sistem repeater. Selain itu, duplexer ini dibuat untuk menangani power radio yang lebih tinggi dan umumnya dapat dipasang pada rak.
Keunggulan Duplexer Celwave
Bebas Gangguan
Duplexer Celwave menghadirkan isolasi tinggi antara port Tx dan Rx sehingga meminimalisir gangguan dan memastikan kualitas komunikasi yang optimal.
Loss Insertion Rendah
Duplexer Celwave Celwave memiliki loss rendah sehingga kekuatan sinyal yang dikirimkan ke antena tidak banyak hilang.
Bobot Ringan
Selain itu, duplexer ini memiliki ringan dan mudah dipasang dan digunakan di berbagai tempat.
Spesifikasi Duplexer Celwave
| UHF Mobile Duplexers | 633-A-1* | 633-A-2* | 633-A-3* | 633-A-4* | 633-A-4* | 633-A-4* |
| Frequency band, MHz | 406-440 | 440-470 | 470-512 | 406-470 | 470-512 | 406-470 |
| Tx – Rx spacing, MHz | 5 | 10 | ||||
| Rx Insertion loss, dB | 1.2 | 0.8 | ||||
| Tx Insertion loss, dB | 1.2 | 0.8 | ||||
| Tx/Rx isolation, dB | 50 | 60 | ||||
| Connector type | BNC/N | |||||
| Tx/Rx Bandwidth, KHz | 25 | |||||
| Max Power, W | 50 | |||||
| UHF Mobile Duplexers | 633-6A-1* | 633-6A-2* | 633-6A-5* | 633-6A-6* |
| Frequency band, MHz | 406-450 | 450-470 | 406-450 | 450-470 |
| Tx – Rx spacing, MHz | 4 to 7 | 4 to 8 | 7 to 15 | 9 to 15 |
| Rx Insertion loss, dB | 1.4 | 1.2 | ||
| Tx Insertion loss, dB | 1.4 | 1.2 | ||
| Tx/Rx isolation, dB | 75 | 80 | ||
| Connector type | BNC/N | |||
| Tx/Rx Bandwidth, KHz | 25 | |||
| Max Power, W | 50 | |||
| 633-6A-7* | 633-6A-8* | 633-6A-9* | 633-6A-11N* | |
| Frequency band, MHz | 470-512 | 355-406 | 470-512 | 355-406 |
| Tx – Rx spacing, MHz | 8 to 12 | 7 to 16 | 3 to 5 | 4.5 to 7 |
| Rx Insertion loss, dB | 1.2 | 1.4 | ||
| Tx Insertion loss, dB | 1.2 | 1.4 | ||
| Tx/Rx isolation, dB | 80 | 70 | 75 | |
| Connector type | BNC/N | N | ||
| Tx/Rx Bandwidth, KHz | 25 | |||
| Max Power, W | 50 | |||
| VHF Compact Base Station Duplexers | 5085-1 | 5085-2 | 5085-3 | 5085-5 | 5085-6 |
| Frequency band, MHz | 138-150 | 150-162 | 162-174 | ||
| Tx – Rx spacing, MHz | 3 | 5 | 3 | 5 | |
| Rx Insertion loss, dB | 1.4 | ||||
| Tx Insertion loss, dB | 1.4 | ||||
| Tx/Rx isolation, dB | 75 | ||||
| Connector type | N Female | ||||
| Tx/Rx Bandwidth, KHz | 25 | ||||
| Max Power, W | 100 | ||||
| VHF Mobile Duplexers | 636-6A-1* | 636-6A-2* | 636-6A-3* | 636A-1* | 636A-2* | 636A-3* |
| Frequency band, MHz | 144-154 | 154-164 | 164-174 | 144-155 | 155-162 | 162-174 |
| Tx – Rx spacing, MHz | 4.5 to 6 | 4.5 | ||||
| Rx Insertion loss, dB | 1.2 | 0.8 | ||||
| Tx Insertion loss, dB | 1.2 | 0.8 | ||||
| Tx/Rx isolation, dB | 80 | 60 | ||||
| Connector type | BNC/N | |||||
| Tx/Rx Bandwidth, KHz | 25 | |||||
| Max Power, W | 50 | |||||
| Weight | 2 kg |
|---|
