Yaesu FT-991A

Yaesu FT-991A

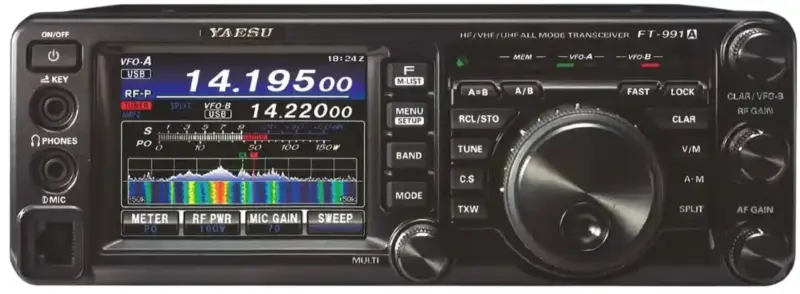

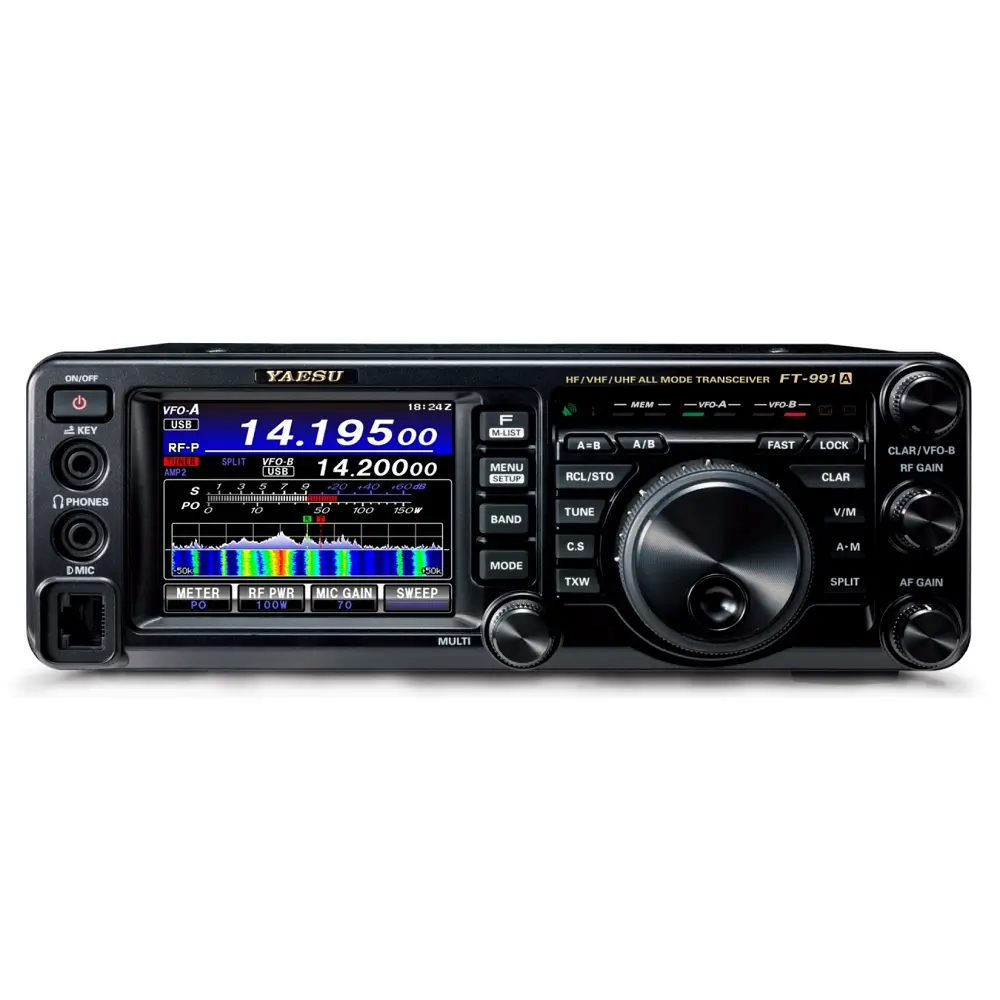

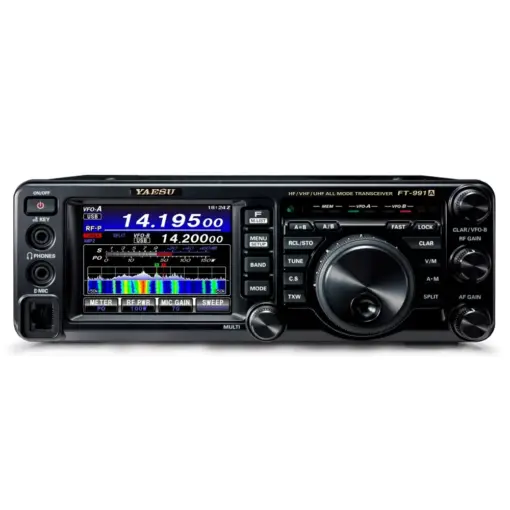

Yaesu FT-991A is the next generation in all mode, all band MF/HF/VHF/UHF transceiver with C4FM (System Fusion) Digital capability.

ALL-BAND, MULTIMODE PORTABLE TRANSCEIVER

Yaesu FT-991A includes multi-mode operation on CW, AM, FM, SSB, and Digital Modes (Packet, PSK31, RTTY and C4FM), with 100 Watts of HF/50mhz Capability (50 Watts VHF/UHF).

The New FT-991A now includes a high-resolution full color 3.5″ TFT Touch panel for superior operability and visibility, incorporating a High Speed Spectrum and High Resolution real-time scope with ASC (Automatic Spectrum-scope control) built right in.

Yaesu FT-991A is designed for the most competitive operating situations, with a suite of new features to enhance the experience. Whether you primarily operate at home, mobile or in the field, Yaesu FT-991A will provide outstanding fundamental performance plus give you easy access to the full range of exciting modes available on the ham bands today.

Real-time Spectrum Scope with Automatic Scope Control (ASC)

The new dynamic real-time spectrum scope gives radio operators the ability to graphically view the location of signals on the band while they listen to the received audio allowing them to quickly move to the desired signal. The strength of signals on the band can readily be seen on the Multi-color waterfall display. Chronological order color differentiation allows operators to easily recognize weak signals at a glance; signals that might otherwise be missed on the spectrum scope.

Advanced Spectrum Scope with ASC (Automatic Spectrum-Scope Control) located just below the LCD display gives the operator all the information for comfortable QSO on the DXing scene.

Multi-color waterfall display

Yaesu FT-991A now includes a Real-time Multi-colored waterfall display that enables you to quickly and easily identify and pick out signals without the need to mute the receive audio.

State of the art 32-bit Digital Signal Processing System

Recognizing an all-important Golden Rule Amateur Radio – “You cannot work them if you cannot hear them”– the FT 991 features a rugged state-of-the-art highly balanced receiver circuit configuration. The high-speed floating point TMS320C6746 DSP chip (3000 MIPS / 2250 MFLOPS) from Texas Instruments used in the receiver design guarantees excellent interference rejection with actual signals under real-world conditions, not only on HF but also in the VHF and UHF bands.

3kHz Roofing Filter for enhanced performance

Yaesu FT-991A now includes a 3Khz roofing filter for the triple conversion receiver that effective attenuates interfering signals and enables outstanding performance while still producing high quality audio.

3.5 Inch Full Color TFT

Yaesu FT-991A could not provide functions easier than at your fingertips with a 3.5″ Full Color TFT Display for Superior Operability and Visibility.

USB Capable

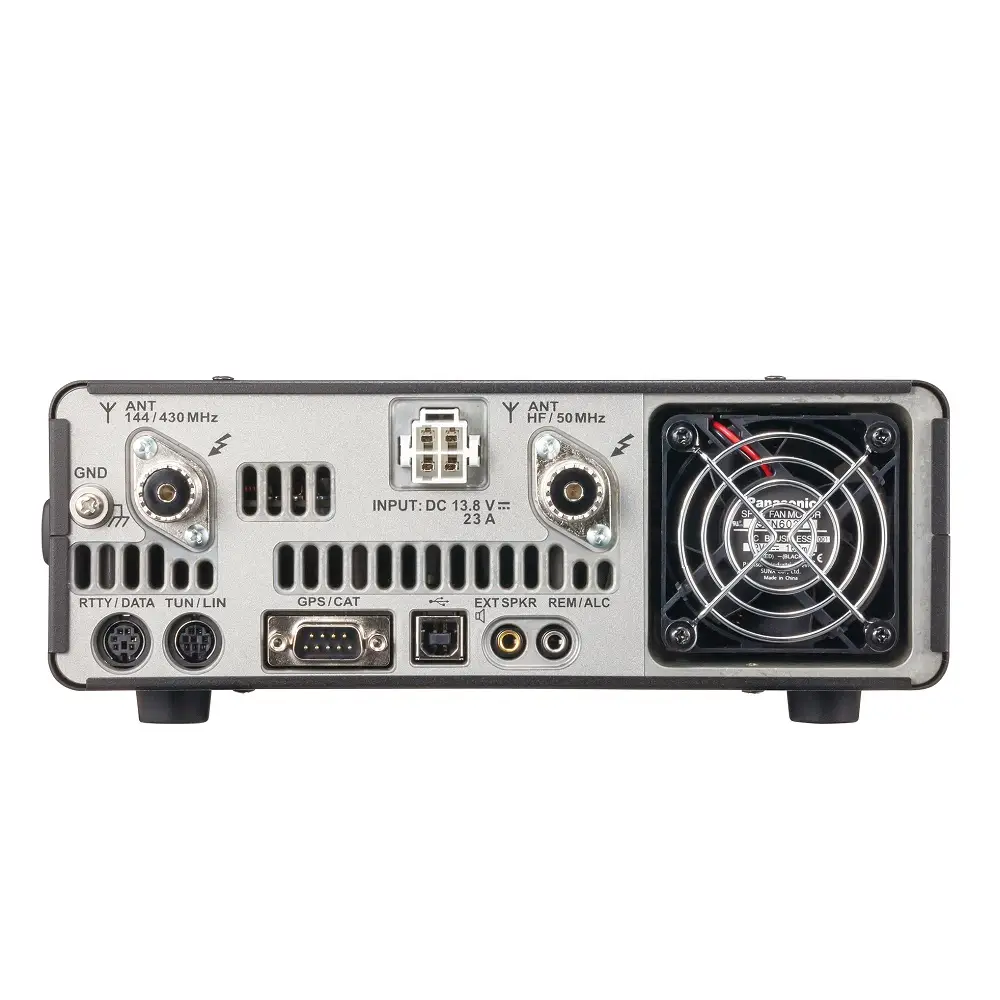

Yaesu FT-991A can be connected to a computer using a USB cable for CAT control and firmware updates, or the use of an integrated SCU-17 Interface Unit to support USB Audio In/Out, TX Control (PTT, Key, Shift).

100 Watts of Solid Performance

The RF Amplifier in Yaesu FT-991A provides a clean and solid 100 Watts of Operating Power (50 Watts VHF/UHF) and is combined with a large heat-sink and forced air automatic cooling fan to increase operating time and prevent overheating.

Compact, Lightweight & Portable

Yaesu FT-991A Comes in a compact, lightweight package suitable for portable, mobile and base installations. Measuring 8.8″(W) x 3″ (H) x 9.9″ (L) at just 9.7 pounds this robust full featured mobile/portable radio is ready to go when and where you are!

Internal Automatic Antenna Tuner

Internal High Speed Automatic Antenna Tuner included in the package. The antenna tuner uses a LC switching network that has a large capacity 100 channel memory. The tuning data is automatically memorized to reduce tuning time when changing frequency.

High Accuracy TCXO

+/-0.5PPM High Resolution DDS/PLL local Oscillator included as part of the standard package.

Specifications

Describtions	Detail
Frequency Ranges	RX: 30 kHz – 56 MHz, 118 MHz – 164 MHz, 420 MHz – 470 MHz (specified performance, amateur bands only)
	TX: 1.8 MHz – 54 MHz, 144 MHz – 148 MHz, 430 MHz – 450 MHz (amateur bands only)
Circuit Type	Triple-Conversion Superheterodyne: SSB/CW/AM
	Double-Conversion Superheterodyne: FM/C4FM
Modulation Type	A1A(CW), A3E(AM), J3E(LSB, USB), F7W(C4FM), F3E(FM), F1D(PACKET), F2D(PACKET)
Power Output	SSB/CW/FM: 160-6 Meters: 100 W, 2 Meters/70 Centimeters: 50 W
	AM Carrier: 160-6 Meters: 25 W, 2 Meters/70 Centimeters: 12.5 W
Case Size (W x H x D)	9.0″ x 3.2″ x 9.3″ (w/o knob and connector)
Weight	9.5 lb
Qty in Master Carton	4
Warranty	3 Years

Aksesoris Radio Rig Yaesu FT-991A

Antena

• Yaesu ATAS-120A (Active-Tuning Antenna (Automatic Type)
• Yaesu ATBK-100 (Balcony Mount Counterpoise Kit)
• Yaesu FC-40 (Antenna Tuner)

Bracket

• Yaesu MMB-90 (Mobile Mounting Bracket)

Cable

• Yaesu CT-39 (Packet Interface Cable)

Microphone

• Yaesu MH-31A8J (Hand Microphone)
• Yaesu MH-36E8J (DTMF Mobile Microphone)

Power Supply

• Yaesu FP-1023 (Power Supply 23 A)
• Yaesu FP-1030A (Power Supply 30 A)

Speaker

• Yaesu SP-10 (External Speaker)
