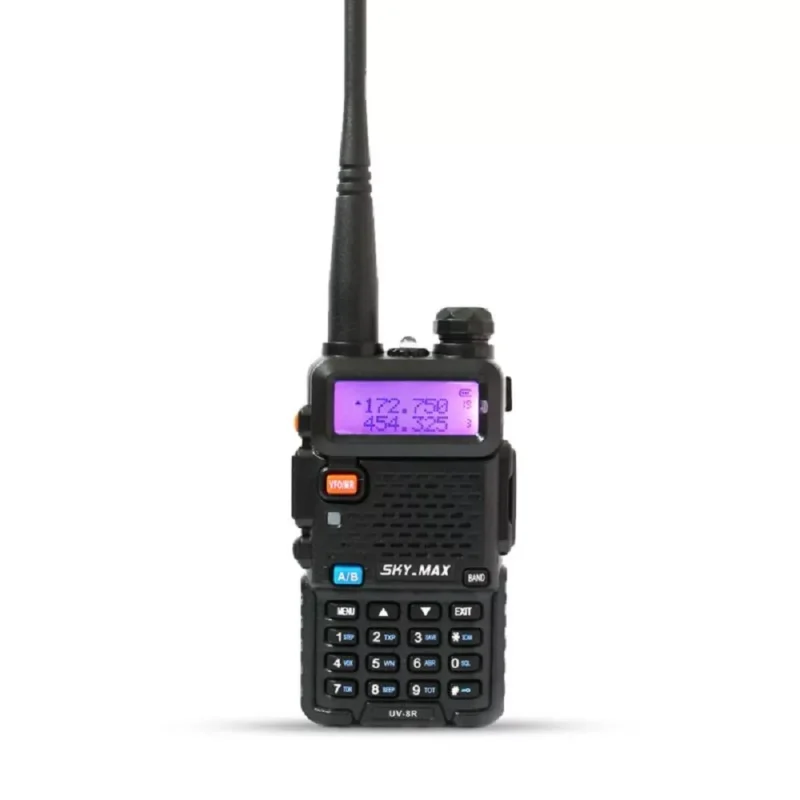

Sky Max UV-8R Dual Band

Sky Max UV-8R Dual Band

SKY MAX UV-8R Dual Band, Radio HT bekerja pada frekuensi dual band, VHF 136-174 Mhz dan UHF 400-470 Mhz, dengan power RF 5 Watt. Ht yang dapat disetting secara manual dengan body yang kecil sehingga cukup sempurna digenggam dalam segala situasi.



Fitur Sky Max UV-8R

• Frequensi dual band plus radio FM
• VHF : 136 MHz – 175 MHz & UHF : 400 MHz – 470 MHz
• Power High 5W
• Hemat Baterai / Rechargeable Battery
• Batterai 1800 mAh
• 128 Channel Memory
• 25 Channel untuk menyimpan Radio FM
• ANI Code
• Scan Otomatis CTCSS / DCS- DTMF Decoding & Encoding
• 3 Pilihan Warna LCD
• SMA Female Antenna ( dapat di lepas dan di pasang kembali maupun di ganti dengan model antena lain )
• LED Flashlight / Lampu Senter

Fitur Lainnya Sky Max UV-8R

• 25KHz/12.5KHz Switchable (Wide/Narrow Band)
• FM Radio (65.0MHz-108.0MHz)
• Large Tri-color LCD Display (3 Selectable Colors)
• LED Flashlight
• Scanning Modes: Channel, Frequency, and Tone
• High /Low RF Power Switchable
• VOX
• 50 CTCSS/ 208 DCS Tones
• Tone searching/scanning
• Talk Around Mode
• Dual standby
• PC programmable
• Alpha Numeric Channel Storage
• Work Mode (Selectable VFO/ Menu Lockout)
• Squelch Tail Elimination (STE)
• Frequency Reverse (Repeater Reverse)
• Channel Receive Only (TX OFF)
• Transmission Time Out (TOT)
• Busy Channel Lock-Out (BCLO)

Spesifikasi

Frequency	Channel Capacity
VHF: 136MHz – 175MHz	128 Channels
UHF: 400MHz – 470MHz

Channel Spacing	Sensitivity
25KHz (wide band)	≤0.25μV (wide band)
12.5KHz (narrow band)	≤0.35μV (narrow band)

Operation Voltage	Battery
7.4V DC ±20%	1800 mAh

Frequency Step (kHz)	Output Power
2.5K/5.0K/6.25K/10.0K/12.5K/20.0K/25.0K/50.0K	5W / 1W
