Motorola SLR 8000

Motorola SLR 8000

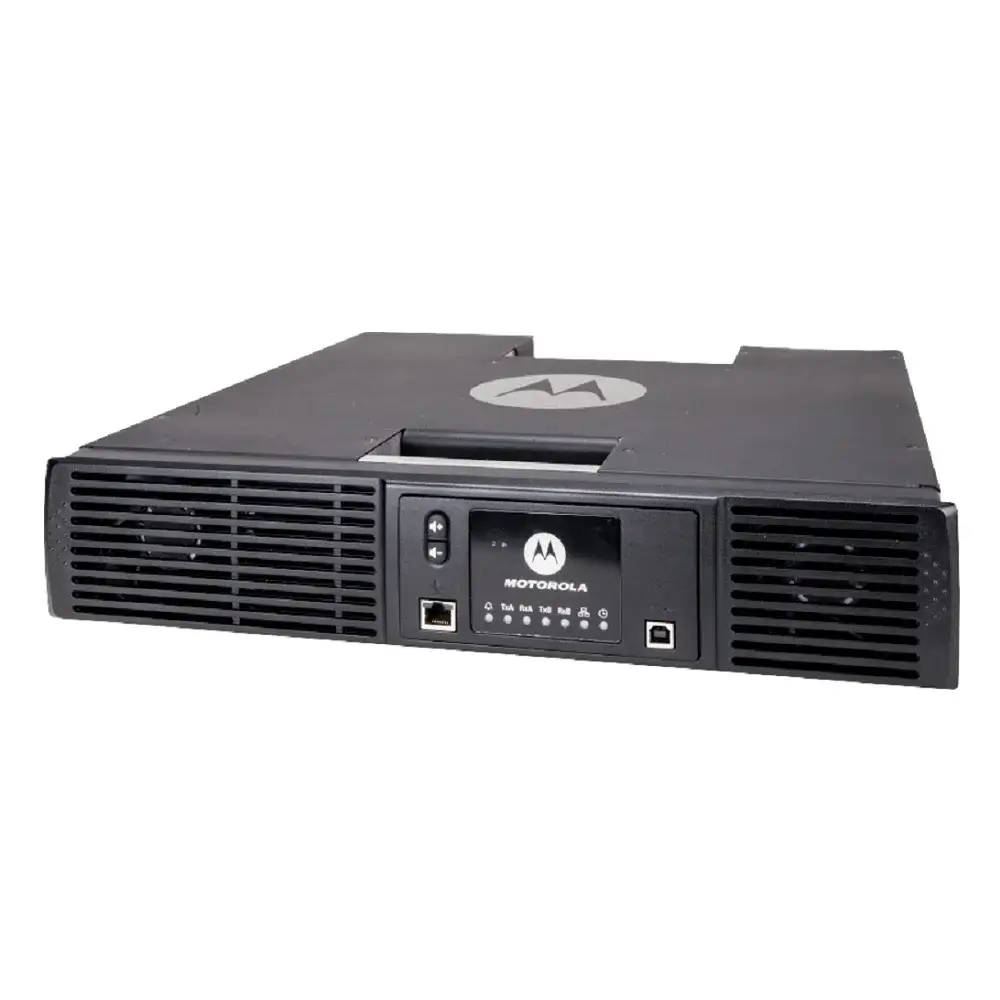

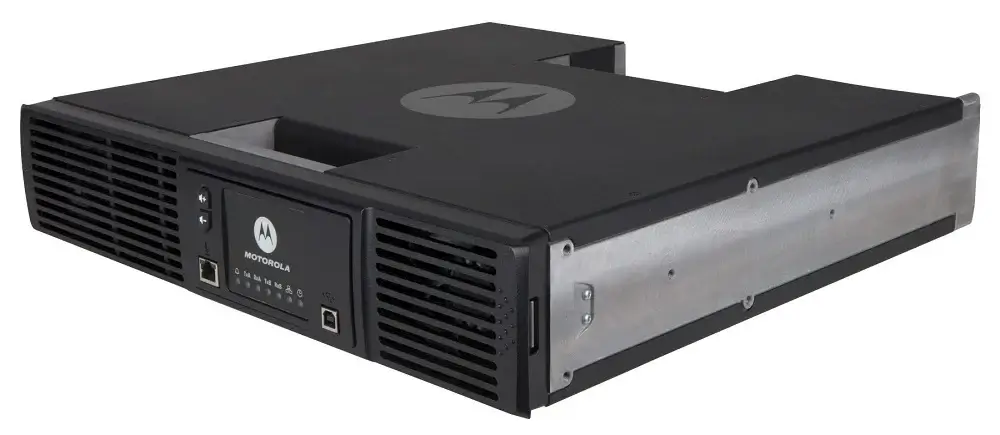

Motorola SLR 8000 sebagai repeater digital hadir dengan menggabungkan fungsi komunikasi dua arah terbaik dengan integrasi suara dan data yang mulus. Repeater ini memiliki fitur-fitur canggih yang mudah digunakan serta kapasitas yang ditingkatkan untuk memenuhi berbagai kebutuhan.

Fitur-Fitur Motorola SLR 8000

Ukuran Minimalis dan Power Output Besar

Meski hanya setinggi 2U, repeater Motorola ini dapat beroperasi secara terus-menerus hingga 100 watt dengan sensitivitas tinggi.

Dapat Dikembangkan

Baik anda memerlukan sistem konvensional di satu lokasi, SLR 8000 dapat mendukung semua konektivitas luas melalui IP Site Connect. Selain itu, repeater ini juga dapat digunakan sebagai repeater analog atau sebagai repeater campuran analog/digital saat dalam proses migrasi.

Serbaguna

Repeater HT original Motorola ini menggabungkan fungsi komunikasi dua arah terbaik dengan integrasi suara dan data yang mulus. Repeater ini hadir dengan fitur-fitur canggih yang mudah digunakan serta kapasitas yang ditingkatkan untuk memenuhi berbagai kebutuhan.

Spesifikasi Motorola SLR 8000

GENERAL
	VHF	UHF	800/900
Frequency Range	136 – 174 MHz	400 – 470 MHz	800 RX: 806 – 825 MHz TX: 851 – 870 MHz 900 RX: 896 – 902 MHz TX: 935 – 941 MHz
Channel Spacing	25*/ 12.5 kHz		12.5 / 20 kHz / 30 kHz
Channel Step Size	5 Hz
Frequency Stability	+ / – 0.5 PPM		+ / – 0.1 PPM
Channel Capacity	64
RF Output Power	1 – 100W
Dimensions (H x W x D)	3.5 x 19 x 17.25 in (89 x 483 x 438 mm)
Weight	31 lbs (14.1 kg)
Input Voltage (AC)	100 – 240 Vac, 47 – 63 Hz
Current (standby), 110/240 V	0.25 / 0.3 A		0.27/0.31 A
Current (transmitting at 100 W), 110/240 V	2.1 / 1.1 A (typical)	2.0 / 1.1 A (typical)	2.8 / 1.3 A (typical)
Input Voltage (DC)	12 V (11.0 – 15.5 V) / 24 V (21.6 – 32.0 V)
Current (standby), 24 V	0.5 A		0.6 A
Current (transmitting at 100 W), 24 V	8.6 A (typical)	8.2 A (typical)	12 A
Input Power Modes	AC only, DC only, AC with Battery Revert
Operating Temperature Range	-22 to +140 °F (-30 to +60 °C)
Humidity	RH of 95%, Non-condensing at 50 °C (122 °F)
Max Duty Cycle	100%
Digital Vocoder Type	AMBE+2™
Battery Charger Capacity (12 / 24 V)	5 A

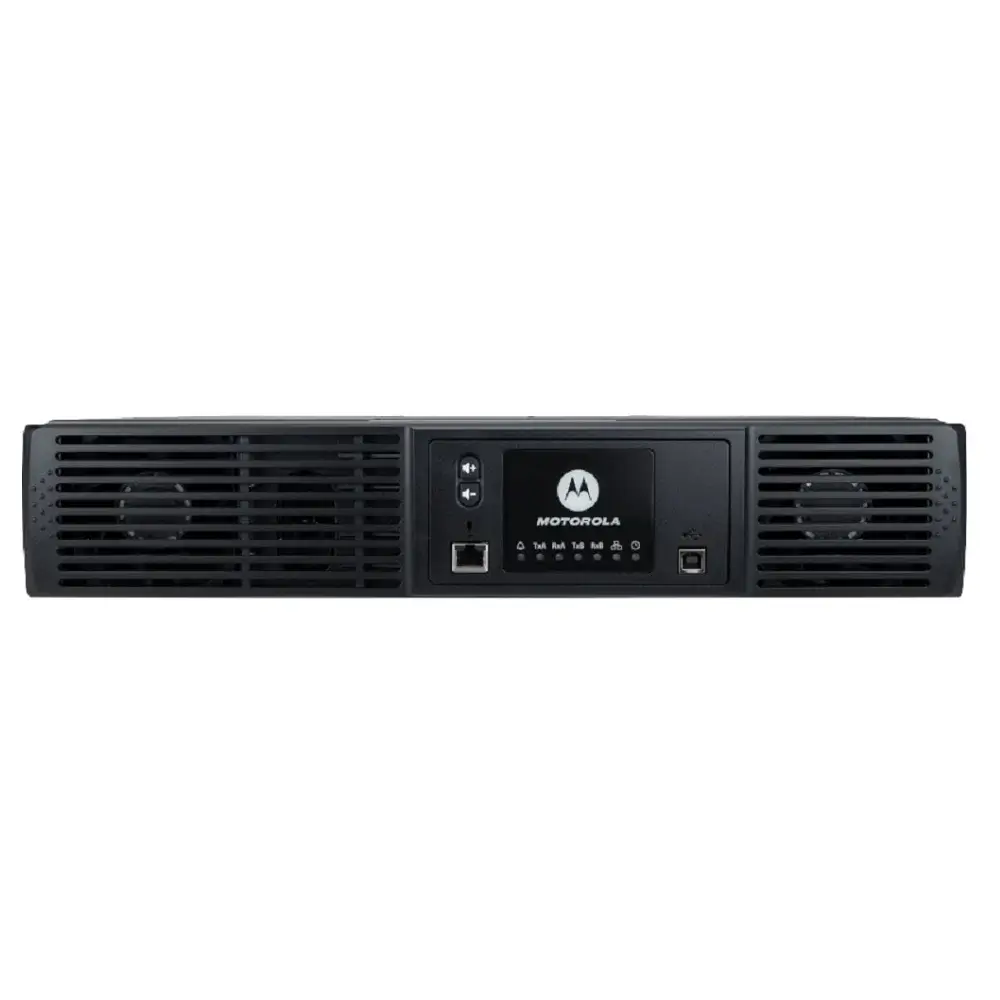

Connectivity, front panel	USB B Receptacle, Microphone (RJ45), Speaker (integrated)

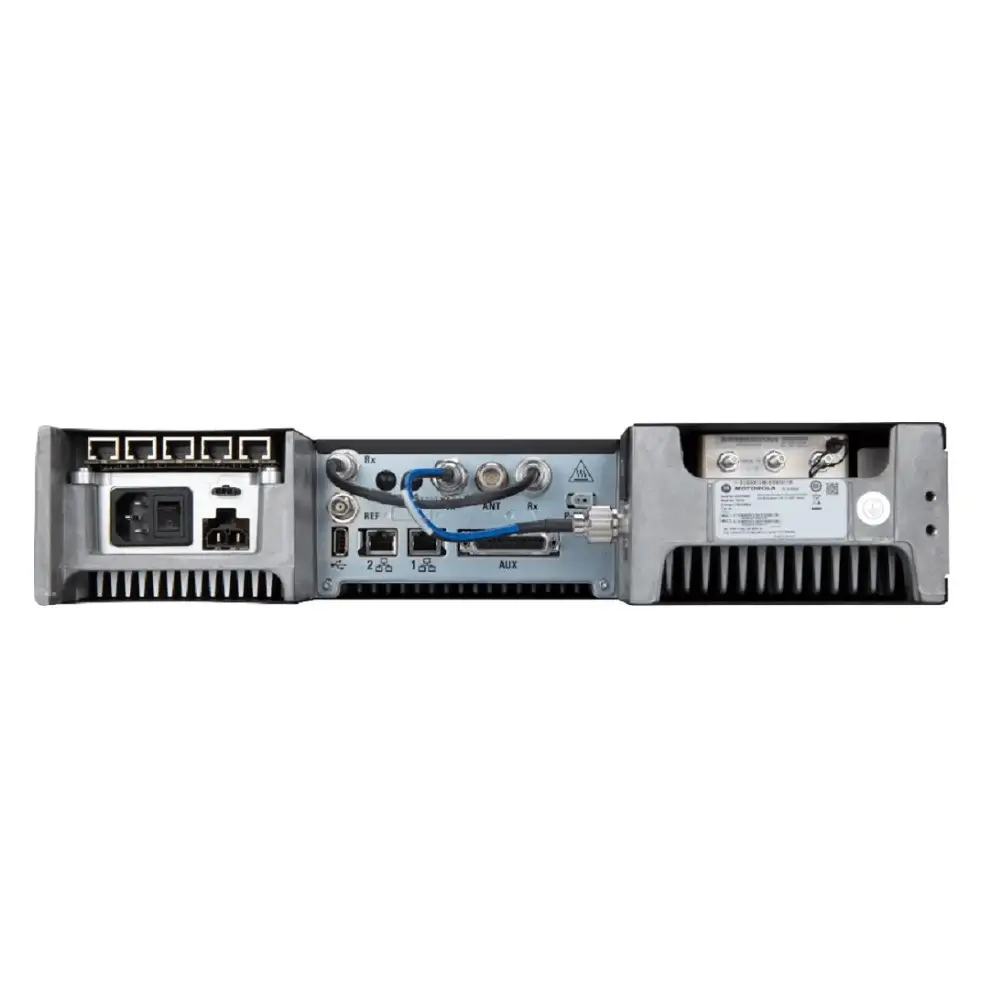

Connectivity, rear panel	Tx (N female), Rx (BNC female), USB A Receptacle, 2x Ethernet, DB25 Accessory Connector, External Reference (BNC Female)
External Reference	5 / 10 MHz (Auto-detect)
Supported System Types	Digital Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus Analog Conventional, Analog Conventional Voting, MPT 1327
Audio Types	Input: Balanced (600 ohms and Country-specific Impedances), Unbalanced (1000 ohms), Microphone Accessory Port. Output: Balanced (600 ohms and Country-specific Impedances), Unbalanced (600 ohms), Integrated Speaker.
Audio Levels	Input: Balanced: +10 to -30 dBm, Unbalanced: Adjustable, 80 mV rms nominal for 60% RSD. Output: Balanced: +7 to -30 dBm, Unbalanced: Adjustable, 330 mV rms nominal @ 60% RSD.
FCC Emission Designators	11K0F3E, 16K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60F7W		11K0F3E, 16K0F3E, 7K60FXD, 7K60F7D, 7K60FXE, 7K60F7E, 7K60F7W, 21K7D7E, 21K7D7D, 21K7D7W
FCC Type Acceptance	ABZ99FT3095B	ABZ99FT4098B	ABZ99FT5101B
IC Description	109AB-99FT3095B	109AB-99FT4098B	109AB-99FT5101B
RECEIVER
	VHF	UHF	800/900
Frequency Range	136 – 174 MHz	400 – 470 MHz	806 – 825 MHz 96 – 902 MHz
Sensitivity, 12dB SINAD	0.3 uV (0.22 uV typical)		0.28 uV (0.18 uV typical)
Sensitivity, 5% BER	0.25 uV (0.18 uV typical)		0.28 uV (0.18 uV typical)
Selectivity (TIA603E), 25* / 12.5 kHz	83/52 dB	78/52 dB	78/52 dB
Selectivity (TIA603), 25* / 12.5 kHz	83/75dB	80/75dB	80/75 dB
Intermodulation Rejection (TIA603E/ETSI)	85/73 dB (87/78 dB typical)		85/73 dB (88/79 dB typical)
Spurious Rejection (TIA603E/ETSI)	85/75 dB (95/90 dB typical)		90/75 dB (105/90 dB typical)
Audio Distortion	< 3% (<1.5% typical)
Hum and Noise, 25* / 12.5 kHz	-50/-45 dB (-56 / -52 dB typical)
Blocking	> 110 dB (113 dB typical)
TRANSMITTER
	VHF	UHF	800/900
Frequency Range	136 – 174 MHz	400 – 470 MHz	851 – 870 MHz 935 – 941 MHz
RF Output Power	DC (24 V) or AC 1 – 100 W DC (12 V) 1 – 50 W
Max Duty Cycle	100%
Intermodulation Attenuation	55 dB
Adjacent Channel Power (TIA603E), 25*/12.5 kHz	75/60 dB
Adjacent Channel Power (ETSI), 25* /12.5 kHz	75/60 dB (78 / 62 dB typical)		70 dB/63 dB (82 / 76 dB typical)
Conducted Spurious Emissions	-36dBm
Audio Response	TIA603D
Audio Distortion	< 3% (<1% typical)
Hum and Noise, 25*/ 12.5 kHz	-50/-45 dB (-55 / -52 dB typical)
Rated System Deviation, 25* /12.5 kHz	±5.0 / ±2.5 kHz
