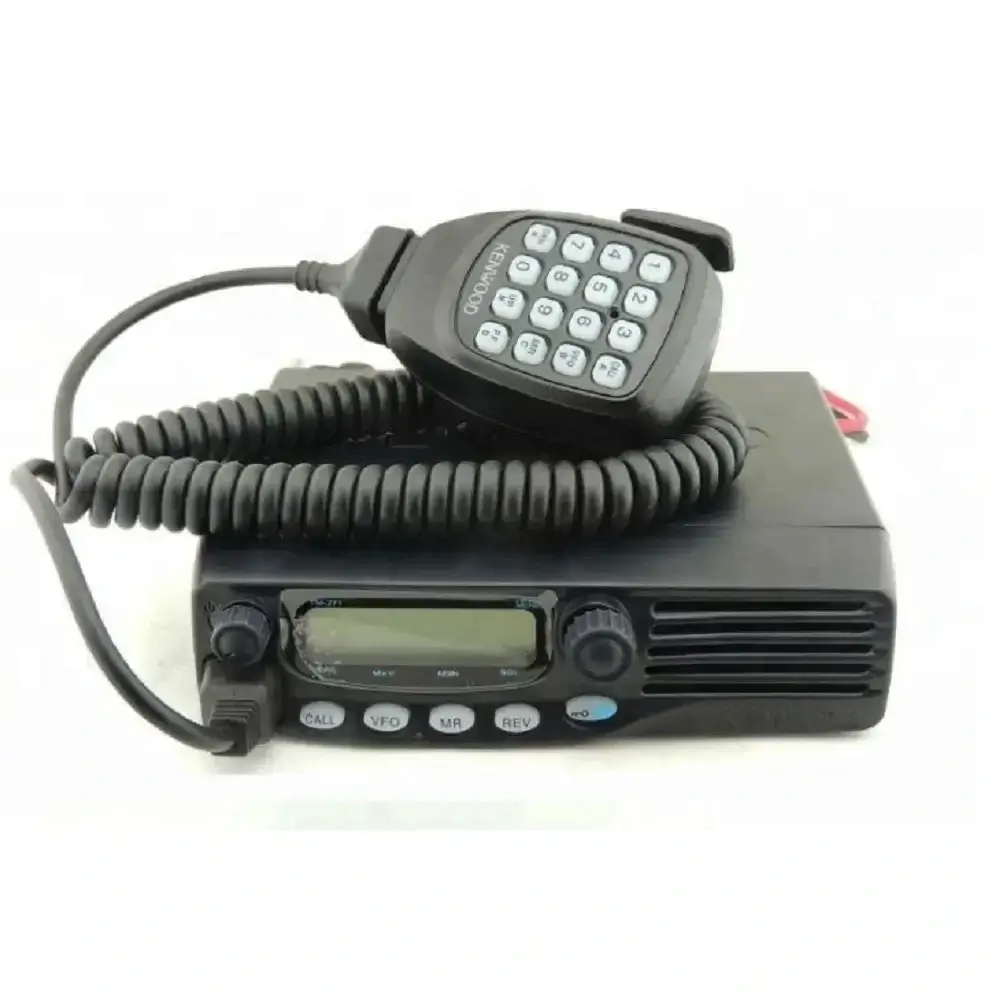

Kenwood TM-271A

Name: Kenwood TM-271A
Availability: OutOfStock
Rating: 5 (4 reviews)

Rated 5.00 out of 5 based on 4 customer ratings

(4 customer reviews)

DISCONTINUED

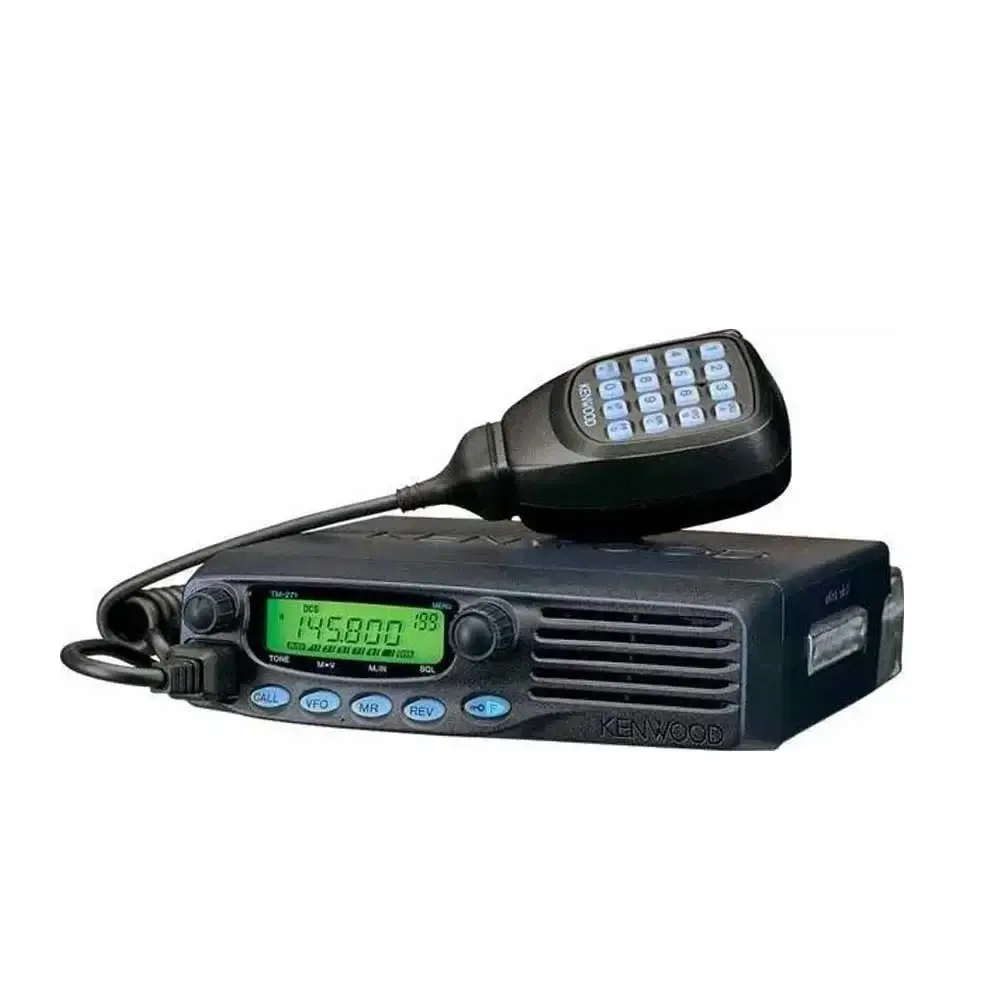

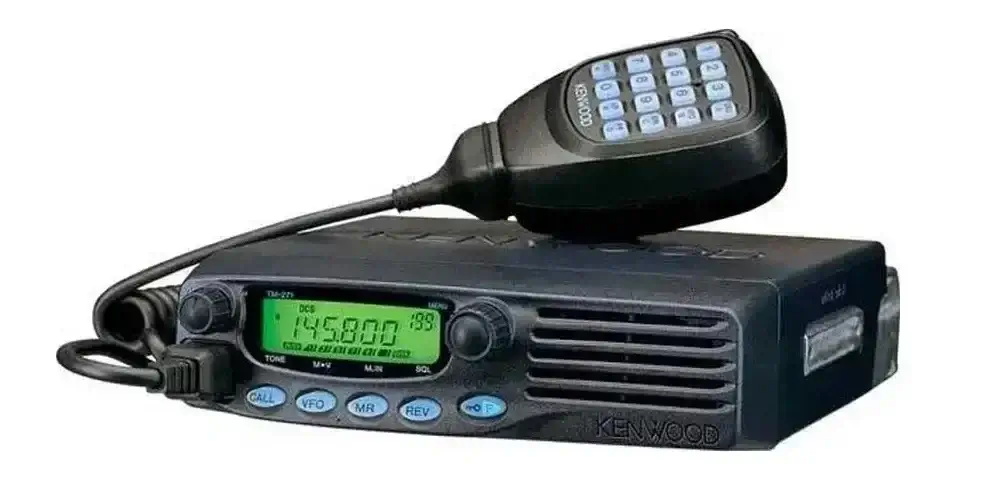

Rig Kenwood TM-271A

Kenwood TM-271A dengan MIL-STD-compliant transceiver memberikan performa mobile yang kuat dan fitur-fitur canggih seperti fungsi beberapa scan dan nama memori. Sangat cocok digunakan untuk kendaraan.

Category: Discontinued

	TM-271A
General
Frequency Range	TX:144-148 MHz RX:136-174 MHz
Mode	F3E (FM)
Power Requirement	13.8V DC ±15%, negative ground
Current Drain Transmit Receive	Less than 13.0 A High), less than 8.0 A (Low) Less than 1.0 A
Operation Temperature Range	-20° C ~ +60° C
Antenna Impedance	50 ohms
Microphone Impedance	600 ohms
Frequency Tolerance	±2.5 ppm (-20°C ~ +60°C)
Dimensions (W x H x D) (Projections included)	6.30″ x 1.69″ x 5.39″ (160 x 43 x 137 mm) 6.33″ x 1.69″ x 6.65″ (161 x 43 x 169 mm)
Weight	2.6lbs (1.2 kg)
Transmitter
RF Output Power (approx.) HI LO	60 W 25 W
Modulation	Reactance modulation
Maximum Frequency Deviation	±5 kHz
Modulation Distortion	Less than 3% (300 MHz ~ 3 kHz)
Receiver
Circuitry	Double Conversion Superheterodyne
Intermediate Frequency 1st IF 2nd IF	49.95 MHz 450 kHz
Sensitivity (12dB SINAD)	Less than 0.18 µV (Narrow: less than 0.22 µV)
Squelch Sensitivity	Less than 0.1 µV
Selectivity -6 dB -60 dB	More than 12 kHz (Narrow: more than 10 kHz) Less than 30 kHz (Narrow: less than 24 kHz)
Audio Output Power	More than 2 W (5% distortion)

Weight	5 kg
