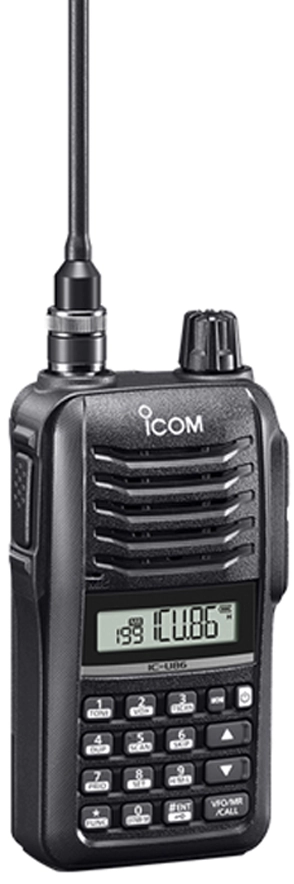

Icom IC-U86
Icom IC-U86 adalah handy talky yang dirancang untuk memenuhi kebutuhan komunikasi profesional dengan performa tinggi dan daya tahan luar biasa. Teknologi canggih dan desain yang tangguh, IC-U86 menjadi pilihan ideal yang membutuhkan keandalan dan kualitas dalam berbagai situasi.
Fitur – Fitur Unggulan Icom IC-U86
Frekuensi
Handy Talky Icom ini dibuat dengan frekuensi UHF 350-390 MHz.
Power Output Besar
Power output sebesar 7 watt untuk jangkauan komunikasi yang lebih luas di ruang terbuka.
Suara Keras
HT VHF ini juga memiliki suara yang keras hingga 1500 mW yang memberikan tekanan suara 1.5 kali lebih tinggi.
Waterproof
Radio HT ini juga dibuat sesuai standar IP54 dan standar militer MIL-STD 810G sehingga tahan debu, percikan air hingga tahan banting.
Baterai Awet
Selain itu, HT waterproof ini juga dibuat dengan baterai berkapasitas besar yang dapat digunakan hingga 19 jam.
Setting Manual
Handy talky ini juga dapat diprogram atau disetting manual tanpa perlu PC atau laptop.
Spesifikasi Icom IC-U86
GENERAL | |
Frequency range (TX/RX guaranteed range) |
UHF 350-390MHz |
Type of emissions | F2D, F3E (FM, FM-N) |
Number of channels | 207 channels (200 memory channels, 1 call channel and 6 scan edges) |
Antenna impedance | 50Ω |
Power supply requirement | 7.5VDC |
Operating temperature range | –20 ˚C to +60 ˚C, –4 °F to +140 °F |
Frequency stability | ±2.5ppm (–20 ˚C to +60 ˚C, –4 °F to +140 °F) |
Current drain | |
TX (EX Hi/Hi/Mid/Low) | EXP1: 1.6/1.5/1.0/0.5 A typ. EXP2: 1.6/1.4/0.9/0.5 A typ. |
RX (Max. audio) | 450 mA typ. (INT SP), 190 mA typ. (EXT SP, Single end) 450 mA typ. (EXT SP, BTL) |
Dimensions (W×H×D) (Projections not included) |
58.6 × 112 × 30.5 mm, (with BP-298) |
Weight (Approximate) | 290 g, 10.2 oz (with BP-298, FA-B57U) |
TRANSMITTER | |
Output power (EX Hi/Hi/Mid/Low) | 5.5/4/2/0.5 W |
Maximum frequency deviation | ±5.0 kHz/±2.5 kHz (Wide/Narrow) |
Spurious emissions | Less than –60 dB |
External microphone connector | 3-conductor 2.5 (d) mm (1/10″)/2.2 kΩ |
RECEIVER | |
Sensitivity | EXP1: –121 dBm typical EXP2: –123 dBm typical |
Squelch sensitivity | EXP1: –123 dBm typical EXP2: –125 dBm typical |
Selectivity (Wide/Narrow) | 70 dB typical/ 68 dB typical |
Intermodulation | 65 dB typical |
Audio output power | |
Internal SP | 1500 mW typical (with 8 Ω load) |
External SP | 450 mW typical (single end) 1500 mW typical (BTL, HM-222HLWP connected) |
External speaker connector | 3-conductor 3.5(d)mm (1/8″)/8Ω |
Applicable U.S. Military Specifications | MIL-810 G |
Applicable IP Rating | |
Ingress Protection Standard | |
Dust and Water | IP54 (Dust-protection, water resistance) |

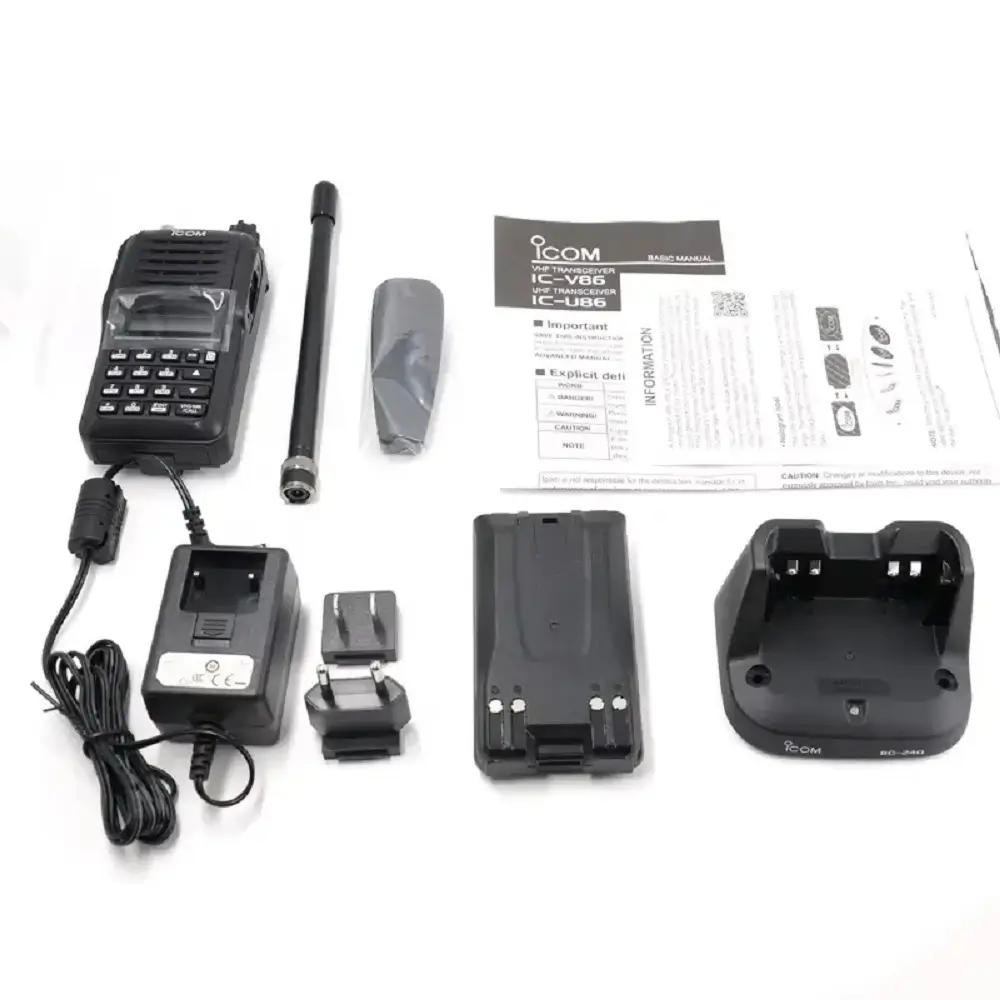

Aksesoris Standar Icom IC-U86
- Baterai – BP-264
- Antena – FA-B57U UHF 403-450 MHz
- Charger – BC-192
- Adaptor Charger – BC-206SE
- Belt Clip – MB-124
- Buku Panduan
