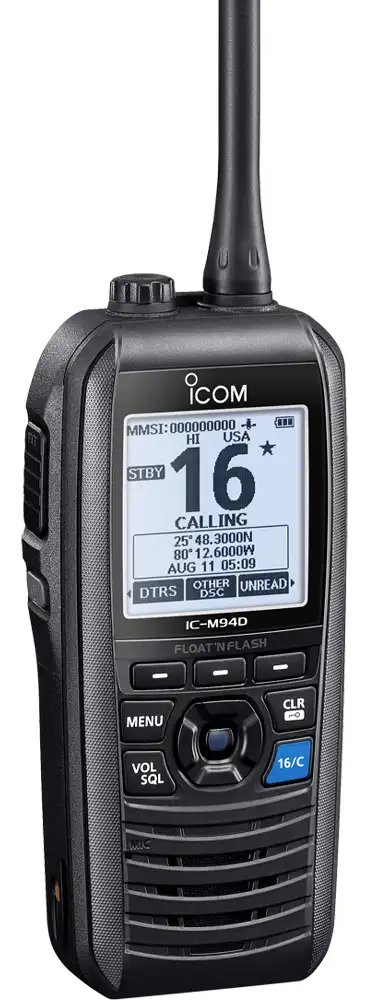

Icom IC-M94D – HT Marine VHF dengan DSC dan AIS
HT Icom IC-M94D radio HT Marine VHF dengan DSC dan AIS receiver, serta GPS terintegrasi. HT waterproof submersible IP Rating IPX7 dan dapat mengapung (Float’n Flash), dengan power output 6W, dan audio output kelas dunia 1500 mW. Radio marine yang tangguh dan andal, dirancang khusus untuk kebutuhan komunikasi di lingkungan maritim.
6 W RF Output Power and 10 Hours of Operating Time
- Daya transmisi sebesar 6 watt memberikan jangkauan komunikasi yang luas bagi pengguna.
- Baterai Li-ion BP-306 berkapasitas tinggi sebesar 2400 mAh (tipikal) memberikan waktu operasi hingga 10 jam, dalam kondisi normal.
AIS Receiver and DSC in One Package
- Penerima AIS dan fungsi DSC menambahkan kepastian keamanan di laut.
- Dengan penerima AIS terintegrasi, informasi lalu lintas kapal ditampilkan pada layar.
- Fungsi panggilan target AIS memungkinkan Anda dengan mudah mengatur panggilan individual DSC.
- Panggilan darurat dapat dilakukan dengan tombol panel belakang.
Integrated GPS receiver
- Penerima GPS terintegrasi memungkinkan pemantauan posisi Anda dengan akurasi.
Class-Leading 1500 mW Audio Output
- Speaker khusus Icom dengan kapasitas daya tinggi menghasilkan suara audio sebesar 1500 mW (tipikal) yang jelas dengan klaritas suara yang ditingkatkan untuk lingkungan maritim yang bising.
Simplified Navigation Function
- Fungsi Navigasi memandu Anda ke waypoint yang ditentukan.
- Anda dapat menetapkan hingga 50 lokasi favorit atau tujuan penangkapan ikan sebagai waypoint.
Float’n Flash and MOB Auto Set Functions
- Radio ini dapat mengapung dan layar LCD, tombol, dan tombol darurat di panel belakang berkedip untuk membantu Anda mengambilnya dari air.
- Menekan tombol darurat sementara Float’n Flash bekerja akan mentransmisikan sinyal darurat MOB, bukan sinyal yang tidak ditentukan, untuk perlindungan yang lebih baik bagi pelaut.
HT waterproof IPX7 submersible
- Tahan air dengan perlindungan IPX7 (kedalaman 1 m selama 30 menit), memastikan kinerja yang handal bahkan di lingkungan maritim yang keras.
Fitur Icom IC-M94D lainnya
- Active noise canceling technology
- Weather channel receive (for USA version)
- Dualwatch and Tri-watch functions
- Favorite channel function
- Supports 4-digit channels
- AquaQuake™ prevents audio degradation from a water-logged speaker
Spesifikasi Icom IC-M94D
GENERAL | ||
Frequency range | Tx | 156.025–157.425 MHz |
Rx | 156.050–163.275 MHz | |
Rx (CH70) | 156.525 MHz | |
RX (AIS) | 162.025 MHz | |
Usable channel groups | INT, USA, CAN, WX channels | |
Type of emission | 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (GMSK) | |
Current drain | TX (6 W/1 W output) | 1500 mA/700 mA (approx.) |
(at 7.2 V DC) | RX (Inter SP/Exter SP Max. audio) | 700 mA/350 mA (approx.) |
Operating temperature range | –20°C to +60°C; –4˚F to +140˚F | |
Antenna impedance | 50 Ω | |
Dimensions (W×H×D) | 60.9 × 145.8 × 43.8 mm; | |
(Projections not included) | 2.4 × 5.7 × 1.7 in | |
Weight (approximately) | 357 g ; 12.6 oz | |
(With BP-306, antenna, MB-133) | ||
TRANSMITTER | ||
Output power (Hi/Low) | 6 W/1 W | |
Max. frequency deviation | ±5 kHz | |
Frequency stability | ±10 ppm | |
Spurious emissions | –68 dBc typical | |
RECEIVER | ||
Sensitivity (at 12 dB SINAD) | 0.25 μV typical | |
DSC receiver (at 1% BER) | –3 dBμ emf typical | |
AIS receiver (at 20% PER) | –107 dBm | |
Squelch sensitivity (Threshold) | 0.25 μV typical | |
Adjacent channel selectivity | 70 dB typical | |
DSC receiver (at 1% BER) | 73 dBμ emf | |
AIS receiver (at 20% PER) | 50 dB typical | |
Spurious response | 70 dB typical | |
DSC receiver (at 1% BER) | 73 dBμ emf | |
AIS receiver (at 20% PER) | 50 dB typical | |
Intermodulation | 70 dB typical | |
DSC receiver (at 1% BER) | 68 dBμ emf | |
AIS receiver (at 20% PER) | 50 dB typical | |
Hum and noise | 40 dB | |
Audio output power | Internal SP | 1500 mW typical (8 Ω load) |
(at 10% distortion) | External SP | 350 mW typical (8 Ω load) |
Applicable U.S. Military Specifications | ||
Mil Standard | MIL-810 G | |
IP Rating | ||
Water | IPX7 (Waterproof protection) |
Aksesoris Icom IC-M94D
- Baterai Icom BP-306
- AC Adapter Charger Icom BC-123SE, Desktop Charger Icom BC-251
- Antena Icom FA-SC59V
- Belt Clip Icom MB-133
Aksesoris Opsional Icom IC-M94D
- Microphone Icom HM-165, Icom HM-228
- AC Adapter Charger Icom BC-242
- Lighter Cable Icom CP-25H
