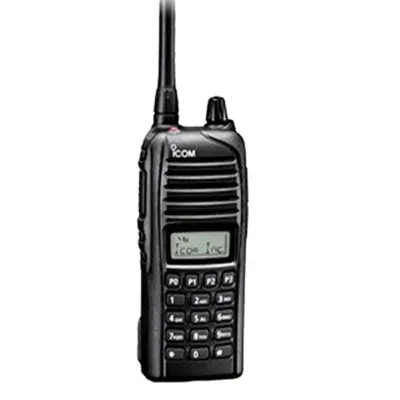

Icom IC-F3033T VHF
Harga terbaru HT Icom IC-F3033T VHF 136–174MHz, 128 channels, waterproof IP67, garansi resmi 1 tahun. Dapatkan harga penawaran terbaik. Call (021) 4211456
Handy Talky ICOM IC-F3033T memberikan perlindungan yang luar biasa terhadap air / HT water proof, tahan debu setara dengan IP67. Handy Talky HT IC-F3033T dapat bertahan 1m kedalaman air selama 30 menit dan konstruksi debu – ketat yang mencegah masuknya debu bubuk , pasir , lumpur juga benda-benda lainnya
Icom IC-F3033T Waktu operasi lebih lama
- ICOM IC-F3033T Didukung baterai Li-Ion BP-232WP 7.4V , 2300mAh menyediakan 17,5 jam * waktu operasi . Baterai telah dirancang untuk keandalan dalam lingkungan sangat dingin .
- * Tx : Rx : Standby = 5:5:90 . Fungsi Hemat daya ON .
Panggilan selektif , stand-by
Handy Talky Icom IC-F3033T series memiliki built-in 2 – Tone , 5 – Tone , CTCSS dan DTC sinyal kemampuan untuk komunikasi kelompok atau panggilan selektif . Ketika 2-Tone/5-Tone cocok diterima , tindakan berikut yang diprogram untuk setiap kode.
- Menjawab kembali panggilan
- bunyi suara
- icon Bell
- Radio setrum / kill / menghidupkan kembali
- Auto TX
- Pindai
ICOM IC-F3033T Kompatibel dengan MDC 1200
- Panggilan selektif & ANI fitur berikut adalah diprogram dengan sinyal built -in MDC .
- PTT ID
- Darurat ( ada transmisi ACK )
- Radio cek ( RX only)
- Stun / Bangkit ( RX only)
ICOM IC-F3033T memiliki Fungsi Darurat
Sebuah tombol merah pada panel atas dapat digunakan sebagai tombol darurat dan dapat digunakan untuk mengirimkan sinyal darurat . Manusia bawah ( opsional UT – 124R diperlukan ) dan fungsi pekerja mandiri juga dapat digunakan untuk fungsi memicu darurat .
Fitur pemindaian
Prioritas scan memungkinkan Anda untuk memonitor satu atau dua saluran prioritas saat memindai saluran lainnya . Mode pemindaian tergantung secara otomatis mengubah daftar scanning berikut saluran operasi . Saluran TX dan berbicara kembali fungsi memungkinkan Anda untuk membuat respon cepat saat memindai .
Unit opsi internal ICOM IC-F3033T
Icom IC-F3033T memiliki soket internal untuk berbagai unit pilihan termasuk pengacak suara, DTMF decoder atau people down man
Fitur ICOM IC-F3033T
- Up to 128 memory channel with 8 zones
- 8-character alphanumeric LCD
- 8 DTMF autodial memories
- Optional HM-168LWP, waterproof speaker-mic
- BIIS PTT ID transmission
- Low battery alert
- 2-step power save
- PC programmable
- Time out timer
- Talk around function
- Surveillance function
General
|
IC-F3033T |
|||
|---|---|---|---|
| Frequency coverage (Varies according to version) |
136–174MHz
|
||
| Number of channels |
128 channels/8 zones
|
||
| Channel spacing (Varies according to version) |
25/12.5 kHz
|
||
| Type of emission |
16K0F3E/11K0F3E
|
||
| Current drain | Tx High |
1.5A (at 5W)
|
|
| Rx | Stand-by |
75mA
|
|
| Max. audio |
250mA
|
||
| Dimensions (projections not included; W×H×D) |
53×120×37 mm
(With BP-232WP) |
||
| Weight (approx.) |
310g (With BP-232WP)
|
||
Transmitter
|
IC-F3033T |
|
|---|---|
| RF output power (at 7.2V DC) |
5W, 2W, 1W
(Hi, L2, L1) |
| Spurious emissions |
80dB typ.
|
| Frequency stability |
±2.5ppm
|
| Audio harmonic distortion |
3% typ. (AF 1kHz 40% deviation)
|
| FM Hum and Noise (W/N) |
46/40dB typ.
|
Receiver
|
IC-F3033T |
|
|---|---|
| Sensitivity at 12dB SINAD |
0.25μV typ.
|
| Adjacent channel selectivity (W/N) |
75/65dB typ.
|
| Spurious response rejection |
70dB (min.)
|
| Intermodulation rejection |
75dB typ.
|
| AF output power (at 5% distortion with an 8Ω load) |
500mW (typ.)
|
FUNCTION COMPARISON AND INTERNAL UNIT OPTIONS
| Number of option slots |
1
|
|
|---|---|---|
| CTCSS/ DTCS | encoder |
Available
|
| decoder |
Available
|
|
| 2-Tone | encoder |
Available
|
| decoder |
Available
|
|
| 5-Tone | encoder |
Available
|
| decoder |
Available
|
|
| DTMF autodial |
Available
|
|
| DTMF decoder |
UT-108R
|
|
| Voice Scrambler | Inversion |
–
|
| Non-rolling |
UT-109R
|
|
| Rolling |
UT-110R
|
|
| APCO P25 digital |
–
|
|
| AES encryption |
–
|
|
| DES encryption |
–
|
|
| 6.25kHz digital |
–
|
|
| MPT 1327 |
–
|
|
| MDC 1200 |
Available (Limited functions)
|
|
| LTR™ trunking |
–
|
|
| PassPort |
–
|
|
| Man Down function |
UT-124R
|
|
| Intrinsically safe |
–
|
|
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 F Method, Proc. |
|---|---|
| Low Pressure Storage |
500.5 I
|
| Low Pressure Operation |
500.5 II
|
| High Temperature Storage |
501.5 I
|
| High Temperature Operation |
501.5 II
|
| Low Temperature Storage |
502.5 I
|
| Low Temperature Operation |
502.5 II
|
| Temperature Shock |
503.5 I-C
|
| Solar Radiation |
505.5 I
|
| Rain Blowing |
506.5 I
|
| Rain Drip |
506.5 III
|
| Humidity Induced |
507.5 II
|
| Salt Fog |
509.5
|
| Dust Blowing |
510.5 I
|
| Immersion |
512.5 I
|
| Vibration |
514.6 I
|
| Shock Functional |
516.6 I
|
| Shock Transit Drop |
516.6 IV
|
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
| Ingress Protection Standard (IC-F3033T/S, IC-F4033T/S, BP-232WP & HM-168LWP) | |
|---|---|
| Dust & Water |
IP67 (Dust-tight and waterproof protection)
|
All stated specifications are subject to change without notice or obligation.
| Weight | 2,6 kg |
|---|
