Commscope F4PNMV2-HC

Name: Commscope F4PNMV2-HC
Price: 400000 IDR
Availability: InStock

Rp400.000

Commscope F4PNMV2-HC – Konektor kabel coaxial Heliax Andrew Commscope FSJ4-50B berukuran 1/2 inci, impedansi 50 ohm, dan rentang frekuensi operasional 1 – 10200 MHz.

Category: Cable and Connectors Tags: Andrew Commscope, Konektor

Description

Commscope F4PNMV2-HC

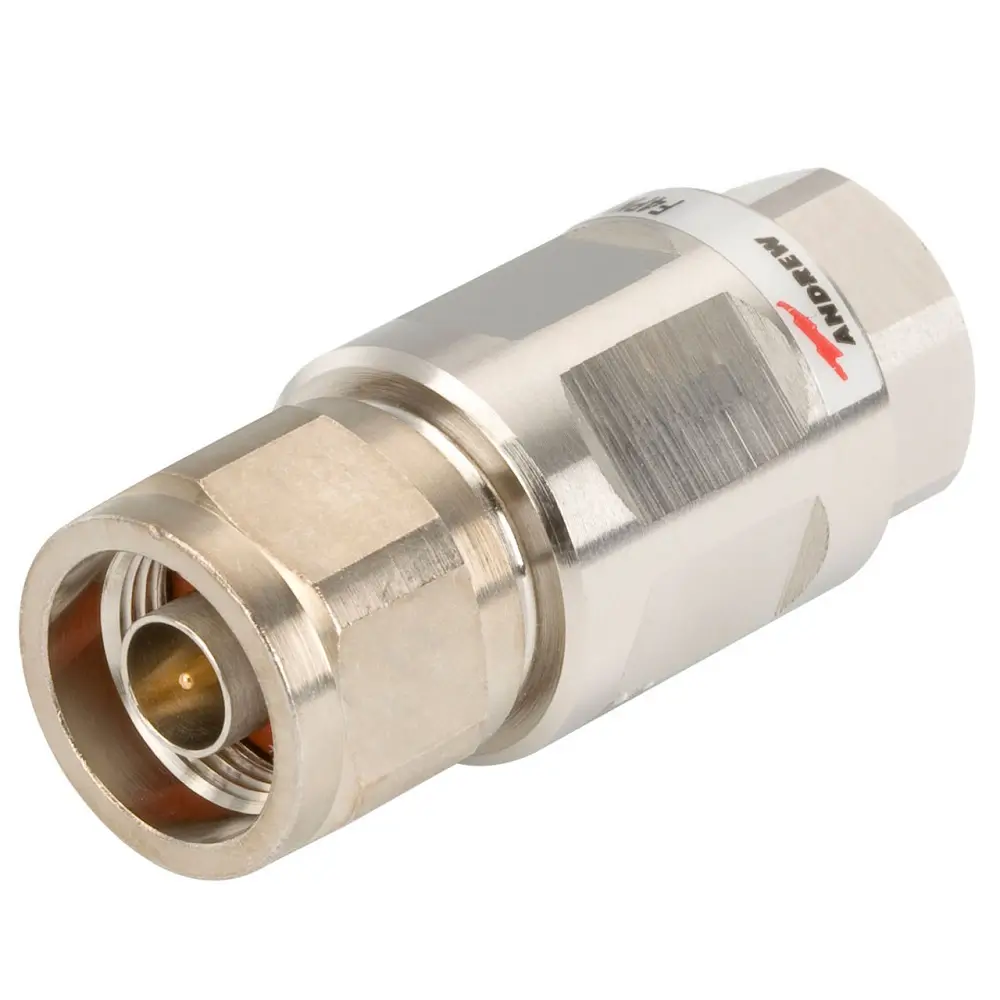

Commscope F4PNMV2-HC adalah konektor N Male yang dibuat khusus untuk dipasang di kabel koaksial Commscope FSJ4-50B berukuran 1/2 inci. Konektor ini berfungsi untuk menjadi ujung sambungan di kabel sehingga kabel dapat dihubungkan ke antena.

Konektor kabel coaxial Commscope ini memiliki impedansi yang sesuai dengan standar kabel sehingga sinyal radio frekuensi dapat mengalir dengan baik.

Spesifikasi

Product Classification
Product Type	Wireless and radiating connector
Product Brand	HELIAX®
Product Series	FSJ4-50B \| FSJ4RK-50B
Ordering Note	ANDREW® standard product (Global)
General Specifications
Body Style	Straight
Cable Family	FSJ4-50B
Inner Contact Attachment Method	Captivated
Inner Contact Plating	Gold
Interface	N Male
Mounting Angle	Straight
Outer Contact Attachment Method	Crush-flare
Outer Contact Plating	Trimetal
Pressurizable	No
Dimensions
Length	54.1 mm \| 2.13 in
Diameter	24.13 mm \| 0.95 in
Nominal Size	1/2 in
Electrical Specifications
3rd Order IMD at Frequency	-120 dBm @ 910 MHz
3rd Order IMD Test Method	Two +43 dBm carriers
Insertion Loss Coefficient, typical	0.05
Average Power at Frequency	0.6 kW @ 900 MHz
Cable Impedance	50 ohm
Connector Impedance	50 ohm
dc Test Voltage	2000 V
Inner Contact Resistance, maximum	2 mOhm
Insulation Resistance, minimum	5000 MOhm
Operating Frequency Band	0 – 12000 MHz
Outer Contact Resistance, maximum	0.3 mOhm
Peak Power, maximum	10 kW
RF Operating Voltage, maximum (vrms)	707 V
Shielding Effectiveness	-110 dB
VSWR/Return Loss
Frequency Band	VSWR \| Return Loss (dB)
0–1000 MHz	1.032 \| 36.06
1010–2000 MHz	1.036 \| 35.05
2010–3000 MHz	1.083 \| 27.99
Mechanical Specifications
Attachment Durability	25 cycles
Connector Retention Tensile Force	889.64 N \| 200 lbf
Connector Retention Torque	5.42 N-m \| 47.998 in lb
Coupling Nut Proof Torque	4.52 N-m \| 39.997 in lb
Coupling Nut Retention Force	444.82 N \| 100 lbf
Coupling Nut Retention Force Method	MIL-C-39012C-3.25, 4.6.22
Insertion Force	66.72 N \| 15 lbf
Insertion Force Method	MIL-C-39012C-3.12, 4.6.9
Interface Durability	500 cycles
Interface Durability Method	IEC 61169-16:9.5
Mechanical Shock Test Method	MIL-STD-202F, Method 213B, Test Condition C
Environmental Specifications
Operating Temperature	-55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature	-55 °C to +85 °C (-67 °F to +185 °F)
Attenuation, Ambient Temperature	20 °C \| 68 °F
Average Power, Ambient Temperature	40 °C \| 104 °F
Corrosion Test Method	MIL-STD-1344A, Method 1001.1, Test Condition A
Immersion Depth	1 m
Immersion Test Mating	Mated
Immersion Test Method	IEC 60529:2001, IP68
Moisture Resistance Test Method	MIL-STD-202F, Method 106F
Thermal Shock Test Method	MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C
Vibration Test Method	MIL-STD-202F, Method 204D, Test Condition B
Water Jetting Test Mating	Mated
Water Jetting Test Method	IEC 60529:2001, IP66
Packaging and Weights
Weight, net	90.72 g \| 0.2 lb
