AVA5 7/8 Inch
Rp170.000
Kabel Heliax AVA5 7/8 inch dengan tipe kabel coaxial, rentang frekuensi 1 – 5000 MHz, impedansi 50 ohm ±1 untuk antena dan perangkat radio komunikasi lain.
In stock

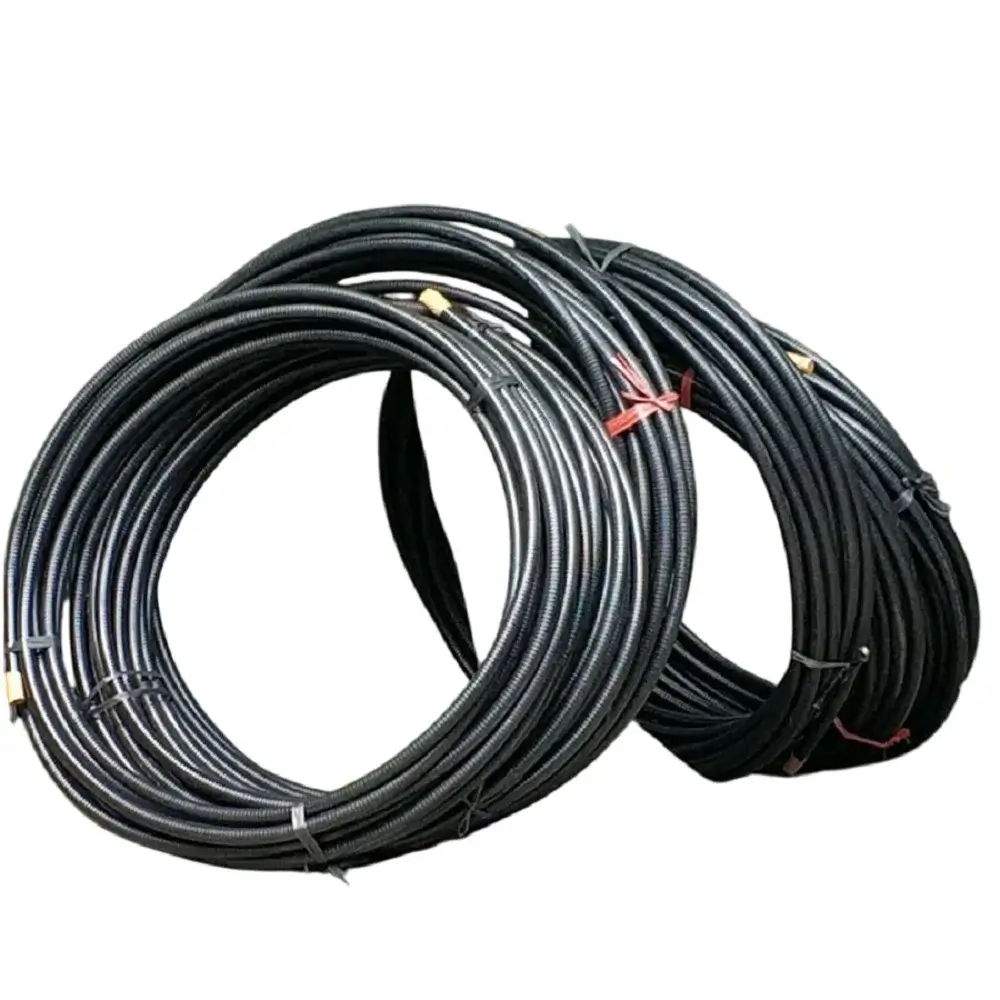

AVA5 7/8 Inch
Andrew CommScope AVA5 hadir sebagai kabel koaksial dari seri HELIAX® Andrew Virtual Air™ untuk kebutuhan transmisi sinyal radio berkinerja tinggi. Kabel ini menggunakan konduktor tembaga bergelombang untuk memberikan efisiensi transmisi optimal, redaman rendah, dan, berkualitas tinggi untuk instalasi jaringan komunikasi.
Dengan diameter 7/8 inci, kabel antena ini cocok ideal digunakan di sistem telekomunikasi, jaringan seluler, dan infrastruktur radio. Lapisan luar berupa jaket PE berwarna hitam dengan material bebas halogen agar lebih aman digunakan di luar ruangan. Meskipun tidak tahan api, kabel Heliax ini tetap kuat dan daya tahan tinggi.
Spesifikasi AVA5 7/8 Inch
| Product Classification | |
| Product Type | Coaxial wireless cable |
| Product Brand | HELIAX® |
| Product Series | AVA5-50 |
| Ordering Note | North America alternative part number is AVA5P-50-C (520093702 /00) | Not available in the United States or Canada |
| General Specifications | |
| Product Number | 520096102/00 | SZ520096102/00 |
| Flexibility | Standard |
| Jacket Color | Black |
| Performance Note | Attenuation values typical, guaranteed within 5% |
| Specification Sheet | Revision Level B |
| Dimensions | |
| Diameter Over Dielectric | 24.13 mm | 0.95 in |
| Diameter Over Jacket | 27.991 mm | 1.102 in |
| Inner Conductor OD | 9.449 mm | 0.372 in |
| Outer Conductor OD | 25.4 mm | 1 in |
| Nominal Size | 7/8 in |
| Electrical Specifications | |
| Cable Impedance | 50 ohm ±1 ohm |
| Capacitance | 73 pF/m | 22.25 pF/ft |
| dc Resistance, Inner Conductor | 1.435 ohms/km | 0.437 ohms/kft |
| dc Resistance, Outer Conductor | 1.116 ohms/km | 0.34 ohms/kft |
| dc Test Voltage | 6000 V |
| Inductance | 0.184 µH/m | 0.056 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 8000 V |
| Operating Frequency Band | 1 – 5000 MHz |
| Peak Power | 91 kW |
| Velocity | 91% |
| VSWR/Return Loss | |
| Frequency Band | VSWR | Return Loss (dB) |
| 680–800 MHz | 1.13 | 24.3 |
| 800–960 MHz | 1.13 | 24.3 |
| 1700–2200 MHz | 1.13 | 24.3 |
Attenuation
| Frequency (MHz) | Attenuation (dB/100 m) | Attenuation (dB/100 ft) | Average Power (kW) |
| 1.0 | 0.113 | 0.034 | 74.43 |
| 1.5 | 0.138 | 0.042 | 60.73 |
| 2.0 | 0.16 | 0.049 | 52.56 |
| 10.0 | 0.359 | 0.11 | 23.37 |
| 20.0 | 0.51 | 0.156 | 16.46 |
| 30.0 | 0.627 | 0.191 | 13.39 |
| 50.0 | 0.814 | 0.248 | 10.32 |
| 85.0 | 1.068 | 0.326 | 7.86 |
| 88.0 | 1.088 | 0.332 | 7.72 |
| 100.0 | 1.162 | 0.354 | 7.23 |
| 108.0 | 1.209 | 0.368 | 6.95 |
| 150.0 | 1.433 | 0.437 | 5.86 |
| 174.0 | 1.548 | 0.472 | 5.43 |
| 200.0 | 1.665 | 0.507 | 5.05 |
| 204.0 | 1.682 | 0.513 | 4.99 |
| 300.0 | 2.059 | 0.628 | 4.08 |
| 400.0 | 2.398 | 0.731 | 3.5 |
| 450.0 | 2.553 | 0.778 | 3.29 |
| 460.0 | 2.583 | 0.787 | 3.25 |
| 500.0 | 2.7 | 0.823 | 3.11 |
| 512.0 | 2.735 | 0.834 | 3.07 |
| 600.0 | 2.977 | 0.907 | 2.82 |
| 700.0 | 3.235 | 0.986 | 2.6 |
| 800.0 | 3.478 | 1.06 | 2.42 |
| 824.0 | 3.534 | 1.077 | 2.38 |
| 894.0 | 3.694 | 1.126 | 2.27 |
| 960.0 | 3.841 | 1.171 | 2.19 |
| 1000.0 | 3.927 | 1.197 | 2.14 |
| 1218.0 | 4.377 | 1.334 | 1.92 |
| 1250.0 | 4.44 | 1.353 | 1.89 |
| 1500.0 | 4.912 | 1.497 | 1.71 |
| 1700.0 | 5.268 | 1.605 | 1.59 |
| 1794.0 | 5.429 | 1.655 | 1.55 |
| 1800.0 | 5.439 | 1.658 | 1.54 |
| 2000.0 | 5.771 | 1.759 | 1.46 |
| 2100.0 | 5.933 | 1.808 | 1.42 |
| 2200.0 | 6.091 | 1.856 | 1.38 |
| 2300.0 | 6.247 | 1.904 | 1.34 |
| 2500.0 | 6.55 | 1.996 | 1.28 |
| 2700.0 | 6.845 | 2.086 | 1.23 |
| 3000.0 | 7.272 | 2.217 | 1.15 |
| 3400.0 | 7.819 | 2.383 | 1.07 |
| 3600.0 | 8.083 | 2.464 | 1.04 |
| 3700.0 | 8.213 | 2.503 | 1.02 |
| 3800.0 | 8.342 | 2.542 | 1.01 |
| 3900.0 | 8.47 | 2.581 | 0.99 |
| 4000.0 | 8.596 | 2.62 | 0.98 |
| 4100.0 | 8.722 | 2.658 | 0.96 |
| 4200.0 | 8.846 | 2.696 | 0.95 |
| 4300.0 | 8.969 | 2.734 | 0.94 |
| 4400.0 | 9.092 | 2.771 | 0.92 |
| 4500.0 | 9.213 | 2.808 | 0.91 |
| 4600.0 | 9.333 | 2.845 | 0.9 |
| 4700.0 | 9.453 | 2.881 | 0.89 |
| 4800.0 | 9.572 | 2.917 | 0.88 |
| 4900.0 | 9.689 | 2.953 | 0.87 |
| 5000.0 | 9.806 | 2.989 | 0.86 |
| Material Specifications | |
| Dielectric Material | Foam PE |
| Jacket Material | PE |
| Inner Conductor Material | Copper tube |
| Outer Conductor Material | Corrugated copper |
| Mechanical Specifications | |
| Minimum Bend Radius, multiple Bends | 254 mm | 10 in |
| Minimum Bend Radius, single Bend | 127 mm | 5 in |
| Number of Bends, minimum | 15 |
| Number of Bends, typical | 30 |
| Tensile Strength | 159 kg | 350.535 lb |
| Bending Moment | 19 N-m | 168.164 in lb |
| Flat Plate Crush Strength | 1.3 kg/mm | 72.797 lb/in |
| Environmental Specifications | |
| Installation temperature | -40°C to +60°C (-40 °F to +140 °F) |
| Operating Temperature | -55°C to +85°C (-67 °F to +185 °F) |
| Storage Temperature | -70°C to +85°C (-94 °F to +185 °F) |
| Attenuation, Ambient Temperature | 68°F | 20°C |
| Average Power, Ambient Temperature | 104 °F | 40°C |
| Average Power, Inner Conductor Temperature | 212°F | 100°C |
| Packaging and Weights | |
| Cable weight | 0.45 kg/m | 0.302 lb/ft |
| Regulatory Compliance/Certifications | |
| Agency | Classification |
| CENELEC | EN 50575 compliant, Declaration of Performance (DoP) available |
| CHINA-ROHS | Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| Weight | 0,3 kg |
|---|
