Commscope FSJ4-50B

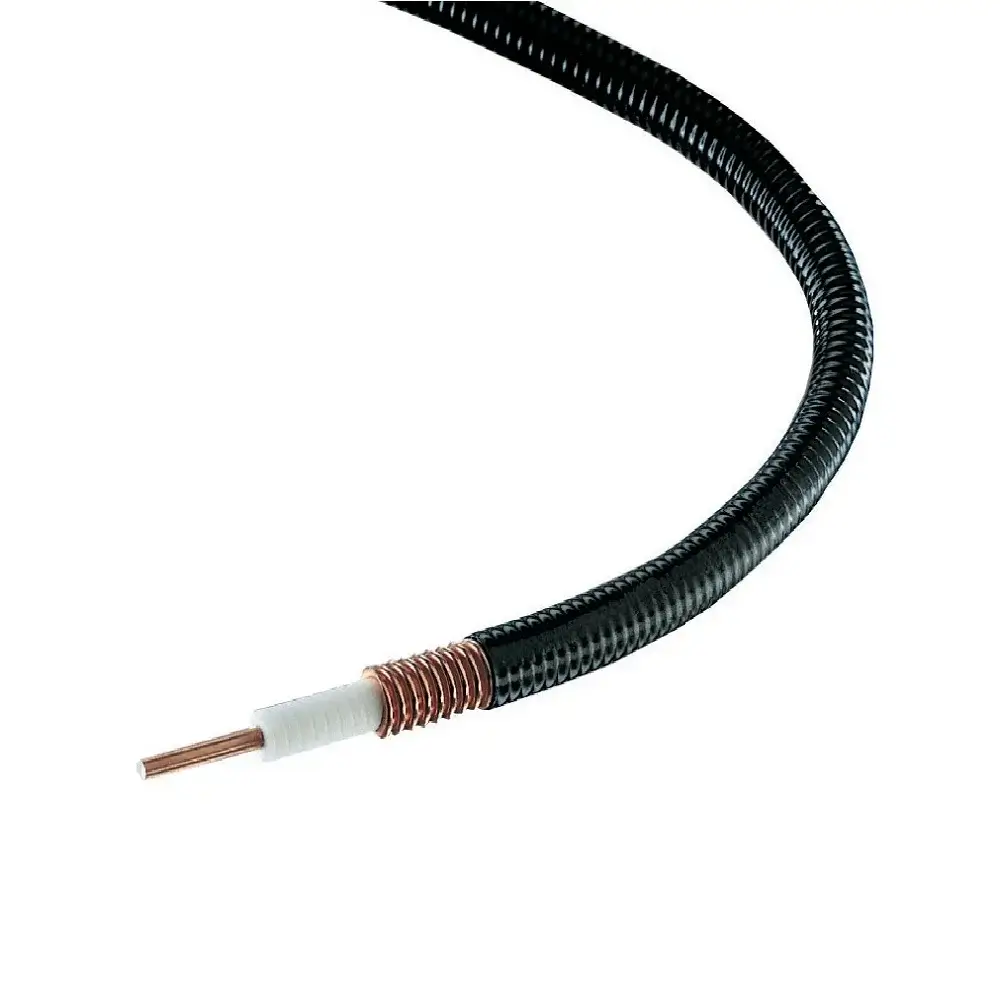

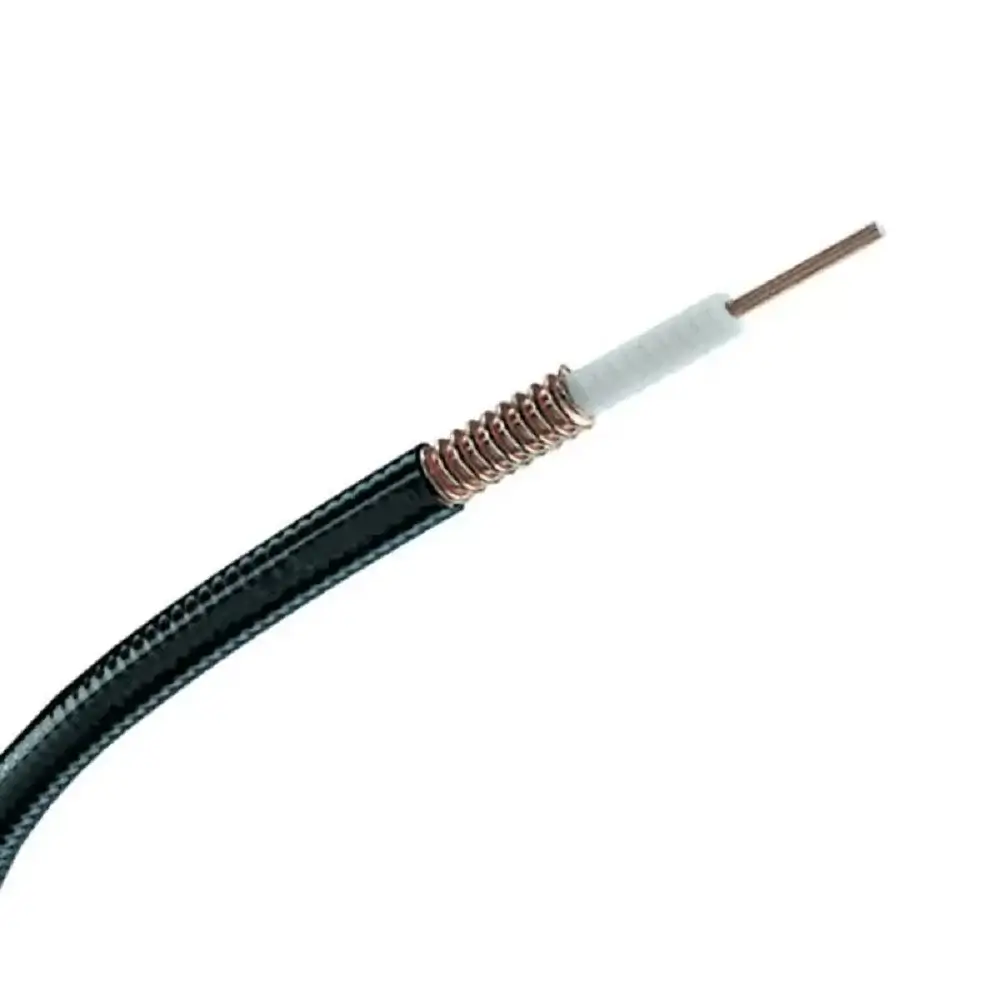

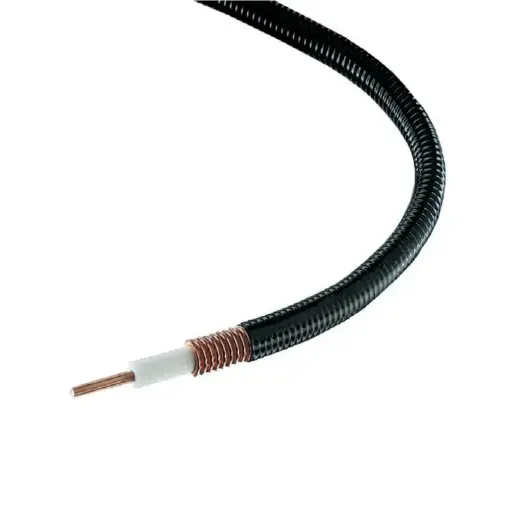

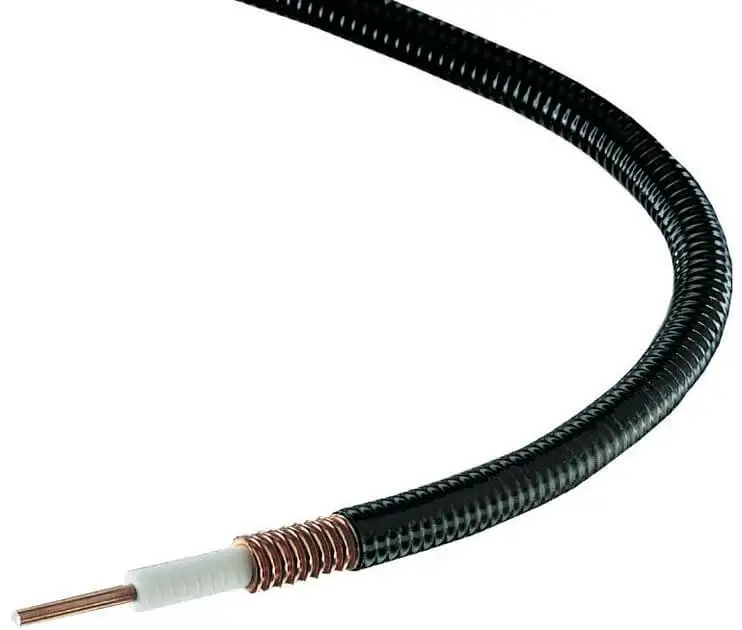

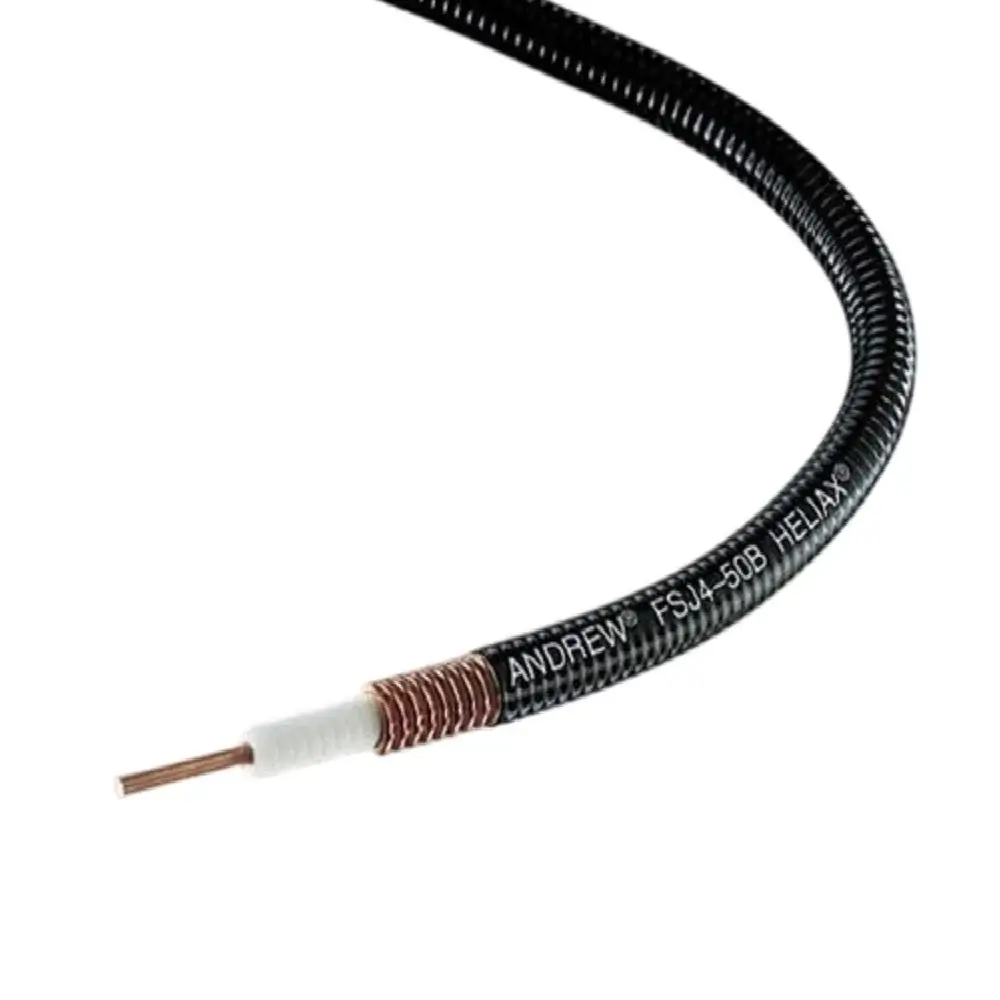

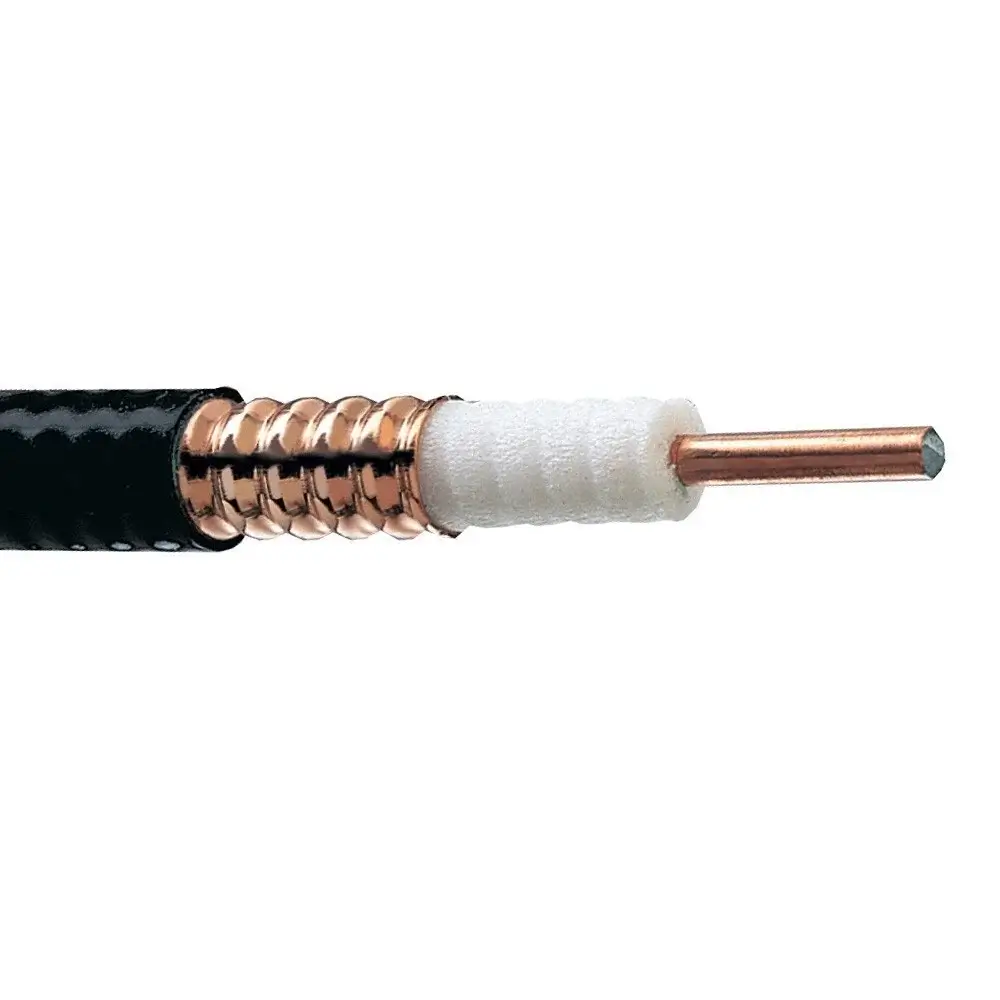

Kabel koaksial Commscope FSJ4-50B adalah kabel superfleksibel dengan inti busa yang dirancang untuk mendukung transmisi sinyal berkualitas tinggi. Konduktor kabel Andrew Commscope ini terbuat dari tembaga yang bergelombang untuk impedansi 50 ohm dengan diameter standar 1/2 inci.
Kabel heliax ini dilapisi dengan lapisan berwarna hitam dari bahan Polietilena (PE) yang bebas dari kandungan halogen. Namun, kabel Andrew tidak memiliki sifat penghambat kebakaran (non-fire-retardant). Dengan struktur yang kuat dan fleksibel, kabel Commscope ini menjadi cocok untuk instalasi sistem jaringan radio telekomunikasi.
Catatan:
Untuk pembelian hanya per 100 meter dan kelipatan.
Spesifikasi
Product Classification | |
Product Type | Coaxial wireless cable |
Product Brand | HELIAX® | SureFlex® |
Product Series | FSJ4-50B |
Ordering Note | ANDREW® standard product (Global) |
General Specifications | |
Product Number | 520093902/00 | SZ520093902/00 |
Flexibility | Superflexible |
Jacket Color | Black |
Performance Note | Attenuation values typical, guaranteed within 5% |
Dimensions | |
Diameter Over Dielectric | 8.89 mm | 0.35 in |
Diameter Over Jacket | 13.462 mm | 0.53 in |
Inner Conductor OD | 3.556 mm | 0.14 in |
Outer Conductor OD | 12.192 mm | 0.48 in |
Nominal Size | 1/2 in |
Electrical Specifications | |
Cable Impedance | 50 ohm ±1 ohm |
Capacitance | 82.7 pF/m | 25.207 pF/ft |
dc Resistance, Inner Conductor | 2.69 ohms/km | 0.82 ohms/kft |
dc Resistance, Outer Conductor | 5.12 ohms/km | 1.561 ohms/kft |
dc Test Voltage | 2500 V |
Inductance | 0.207 µH/m | 0.063 µH/ft |
Insulation Resistance | 100000 MOhms-km |
Jacket Spark Test Voltage (rms) | 5000 V |
Operating Frequency Band | 1 – 10200 MHz |
Peak Power | 22.5 kW |
Velocity | 81% |
