Heliax LDF4-50A
Rp95.000
Kabel antena Repeater LDF4-50A Andrew HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 1/2 in, black PE jacket.
In stock

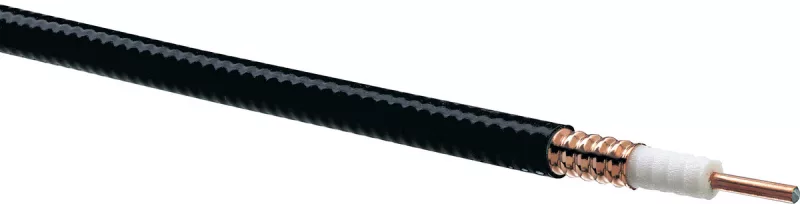

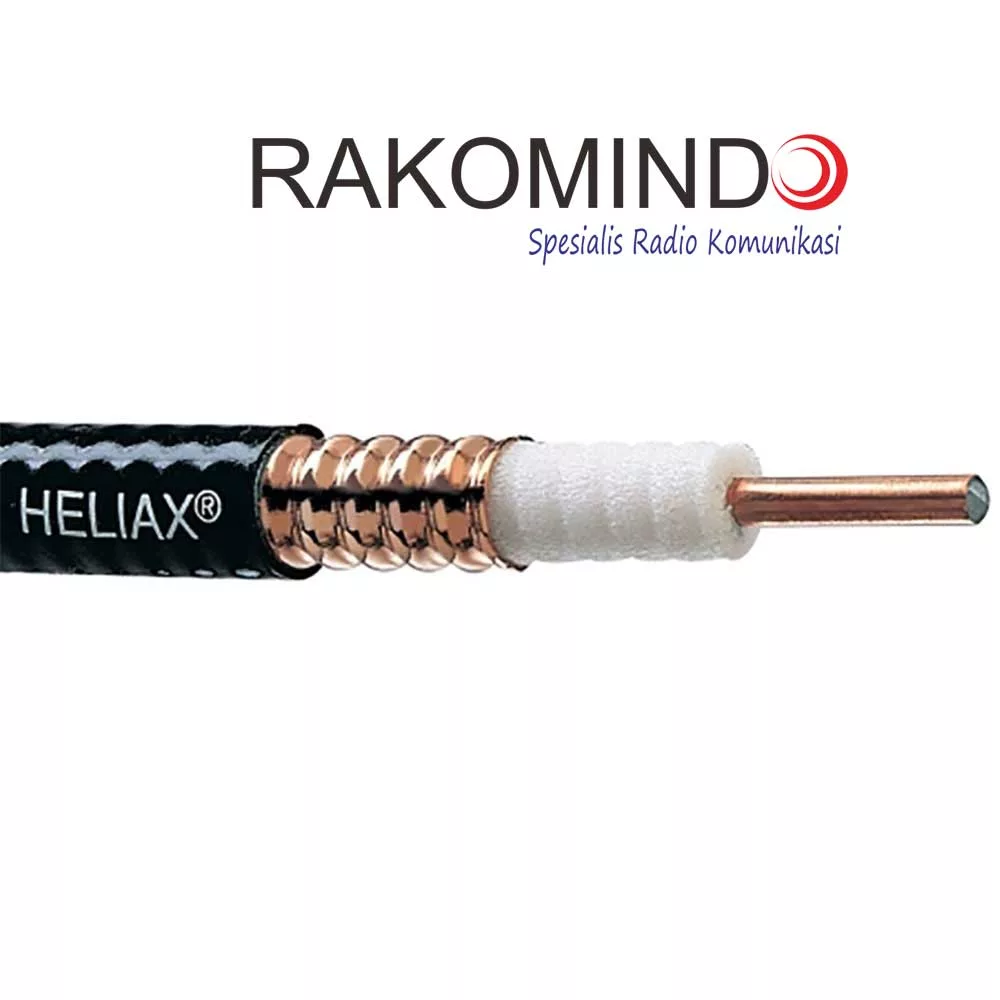

Heliax LDF4-50A
Andrew HELIAX® LDF4-50A Low Density Foam Coaxial Cable, corrugated copper, 1/2 in, black PE jacket
LDF4-50A, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 1/2 in, black PE jacket Halogen free jacketing non-fire-retardant (General propose cable for outdoor use only)
Spesifikasi Heliax LDF4-50A
Product Classification |
|
| Diameter Over Dielectric12.954 mm | 0.51 in |
| Product Type | Coaxial wireless cable |
| Product Brand | HELIAX® |
| Product Series | LDF4-50A |
| Ordering Note | CommScope® standard product (Global) |
General Specifications |
|
| Flexibility | Standard |
| Jacket Color | Black |
| Performance Note | Attenuation values typical, guaranteed within 5% |
Dimensions |
|
| Diameter Over Jacket | 15.875 mm | 0.625 in |
| Inner Conductor OD | 4.826 mm | 0.19 in |
| Outer Conductor OD | 13.97 mm | 0.55 in |
| Nominal Size | 1/2 in |
Electrical Specifications |
|
| Cable Impedance | 50 ohm ±1 ohm |
| Capacitance | 75.8 pF/m | 23.104 pF/ft |
| dc Resistance, Inner Conductor | 1.48 ohms/km | 0.451 ohms/kft |
| dc Resistance, Outer Conductor | 2.69 ohms/km | 0.820 ohms/kft |
| dc Test Voltage | 4000 V |
| Inductance | 0.19 µH/m | 0.058 µH/ft |
| Insulation Resistance | 100000 MOhms-km |
| Jacket Spark Test Voltage (rms) | 8000 V |
| Operating Frequency Band | 1 – 8800 MHz |
| Peak Power | 40 kW |
| Velocity | 88 % |
Material Specifications LDF4-50A |
|
| Dielectric Material | Foam PE |
| Jacket Material | PE |
| Inner Conductor Material | Copper-clad aluminum wire |
| Outer Conductor Material | Corrugated copper |
Mechanical Specifications |
|
| Minimum Bend Radius, multiple Bends | 127 mm | 5 in |
| Minimum Bend Radius, Single Bend | 50.8 mm | 2 in |
| Number of Bends, minimum | 15 |
| Number of Bends, typical | 50 |
| Tensile Strength | 113 kg | 249.122 lb |
| Bending Moment | 3.8 N-m | 33.633 in lb |
| Flat Plate Crush Strength | 2 kg/mm | 111.995 lb/in |
Environmental Specifications LDF4-50A |
|
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -70 °C to +85 °C (-94 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
Packaging and Weights |
|
| Cable weight | 0.22 kg/m | 0.148 lb/ft |
| Weight | 0,1 kg |
|---|
