POLYPHASER IS-B50LN-C2
Rp0
POLYPHASER IS-B50LN-C2
Lightning Protector, 10-1000 MHz

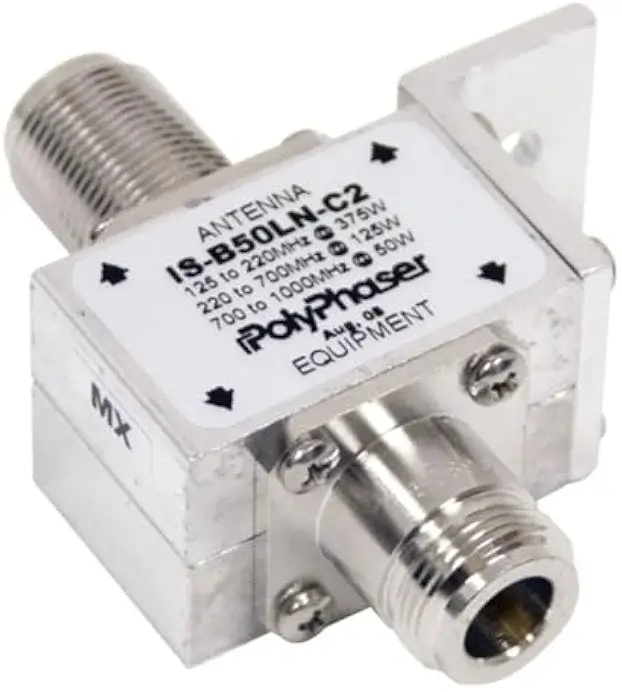

RF surge protector (also known as lightning arrester or surge arrestor) IS-B50LN-C2 from PolyPhaser, integrating a RF blocking capacitor with a gas tube (GT or GDT). This RF surge protector component is manufactured in a coaxial in-line design with wide operating frequency range.
Type: Blocking Cap and Gas Tube
DC Handling: DC Block
Out of stock
POLYPHASER IS-B50LN-C2
POLYPHASER IS-B50LN-C2 Lightning Protector arrester, 10-1000 MHz
Type N F/F Bulkhead Coaxial RF Surge Protector
Electrical Specifications
Surge Protector Type: Blocking Cap and Gas Tube
DC Handling: DC Block
Description
| Minimum
| Typical
| Maximum
| Units
|
Frequency Range | 10 | 1,000 | MHz | |
Impedance | 50 | Ohms | ||
VSWR | 1.1:1 | |||
Insertion Loss | 0.1 | dB | ||
Input Power, CW 1.5kW @ 10 to 50MHz 375W @ 50 to 220MHz 125W @ 220 to 700MHz 50W @ 700 to 1000MHz | 1.5 | kWatts | ||
Surge Current IEC 61000-4-5 8/20µs WAVEFORM MULTIPLE | 20 | kA | ||
Turn On Voltage | 600 ±20% | Volts | ||
Throughput Energy @ 3kA 8/20µs WAVEFORM | 3.5 | mJ |
| Weight | 0,5 kg |
|---|
