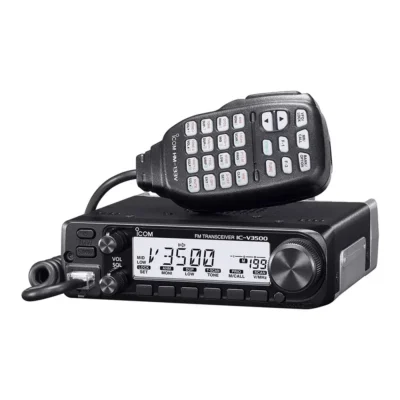

Icom IC-V3500

Icom IC-V3500

Frekuensi TX 144-148 MHz RX: 136-174 MHz

Icom IC-V3500 beroperasi pada pita VHF dengan rentang frekuensi pengiriman 144-148 MHz dan rentang frekuensi penerimaan 136-174 MHz.

Power Output 65W

Radio ini menawarkan beberapa pengaturan daya keluaran, memungkinkan Anda memilih antara 65 W, 25 W, 10 W, atau 5 W daya keluaran saat beroperasi dengan tegangan 13,8 V DC.

Icom IC-V3500 207 Memori

Icom IC-V3500 dilengkapi dengan 207 saluran memori, yang termasuk 1 saluran panggilan dan 6 scan edge

Voltage 13,8 Volt DC

Radio ini memerlukan sumber daya sebesar 13,8 V DC dengan toleransi ±15%.

Current Drain

Pada saat mentransmisikan dengan daya 65 W, radio ini mengkonsumsi arus sekitar 11 A. Saat menerima audio maksimum, konsumsi arusnya adalah 1,5 A dan saat berada dalam mode siaga (stand-by) konsumsi arusnya adalah 0,4 A.

Impedansi Antena Icom IC-V3500

Icom IC-V3500 memiliki impedansi antena sebesar 50 Ohm dan menggunakan konektor SO-239.



Spesifikasi Icom IC-V3500

Frequency coverage		Transmit	144–148 MHz
		Receive	136–174 MHz*
Number of memory channels			207 channels (including 1 call and 6 scan edges)
Type of emission			F2D, F3E (FM)
Frequency stability			±3 ppm
Power supply requirement			13.8 V DC ±15%
Current drain (approximate)	Tx 65 W		11 A
	Rx Max. audio/Stand-by		1.5 A/0.4 A
Antenna impedance			50 Ω (SO-239)
Operating temperature range			–10°C to +60°C; 14°F to +140°F
Dimensions (W × H × D; Projections not included)			140 × 40 × 118 mm; 5.5 × 1.6 × 4.6 in
Weight (approximate)			1.1 kg; 2.4 lb

* Guaranteed range TX/RX: 144–148 MHz.

Transmitter

Output power (13.8 V DC)	65 W, 25 W, 10 W, 5 W
Max. frequency deviation	±5.0 kHz/±2.5 kHz (W/N)
Spurious emissions	Less than –60 dBc
Microphone impedance	600 Ω (8-pin modular)

Receiver

Sensitivity (at 12 dB SINAD)			Less than 0.18 μV
Selectivity	Wide		More than 6 kHz (at 6 dB) Less than 14 kHz (at 60 dB)
	Narrow		More than 3 kHz (at 6 dB) Less than 9 kHz (at 55 dB)
Spurious response			More than 60 dB
Audio output power			4.5 W typ. (10% dist., 4 Ω load)
Ext. speaker connector			2-conductor 3.5 (d) mm (1/8ʺ)/4 Ω

Aksesoris Radio Rig Icom IC-V3500

Microphone

• Icom HM-133V Hand Microphone
• Icom HM-154 Hand Microphone
• Icom HM-209 Active Noise Canceling Microphone

Exsternal Speaker

• Icom SP-35 (Max input power 7 w, Rate input power 5 w, Frequency range 20 khz, cable leght 2 m 6.6 ft)
• Icom SP-35L (Max input power 7 w, Rate input power 5 w, Frequency range 20 khz, cable leght 6 m, 19.7 ft)

Power Suplly Cable

• Icom OPC-1132 DC Power Cable (Cable Length 3 m, 9.8 ft)
• Icom OPC-345 DC Power Cable (Cable Length 3 m, 9.8 ft)

Software

• Icom CS-V3500 Programming Software

Programming / Data Cables

• Icom OPC-478UC Programming Cable (Connector USB to Φ3.5 mm stereo plug, Cable Length 52 cm)
• Icom OPC-478UC-1 Programming Cable (Connector USB to Φ3.5 mm stereo plug, Cable Length 52 cm)
• Icom OPC-478UD Programming Cable (Connector USB to Φ3.5 mm stereo plug, Cable Length 52 cm)

Extension Cables

• Icom OPC-440 Microphone extension cable (Connector Modular connector, Cable Length 5 m, 16.4 ft)

Adapter Cable

• Icom OPC-589 Microphone adapter cable (Connector 8-pin connector microphone to 8-pin modular, Cable Length 30 cm±1.5 cm, 11.8 in±5.9 in)

Cables

• Icom OPC-474 Cloning Cable (Connector Stereo mini plug, Cable Length 55 cm, 21.7 in)
