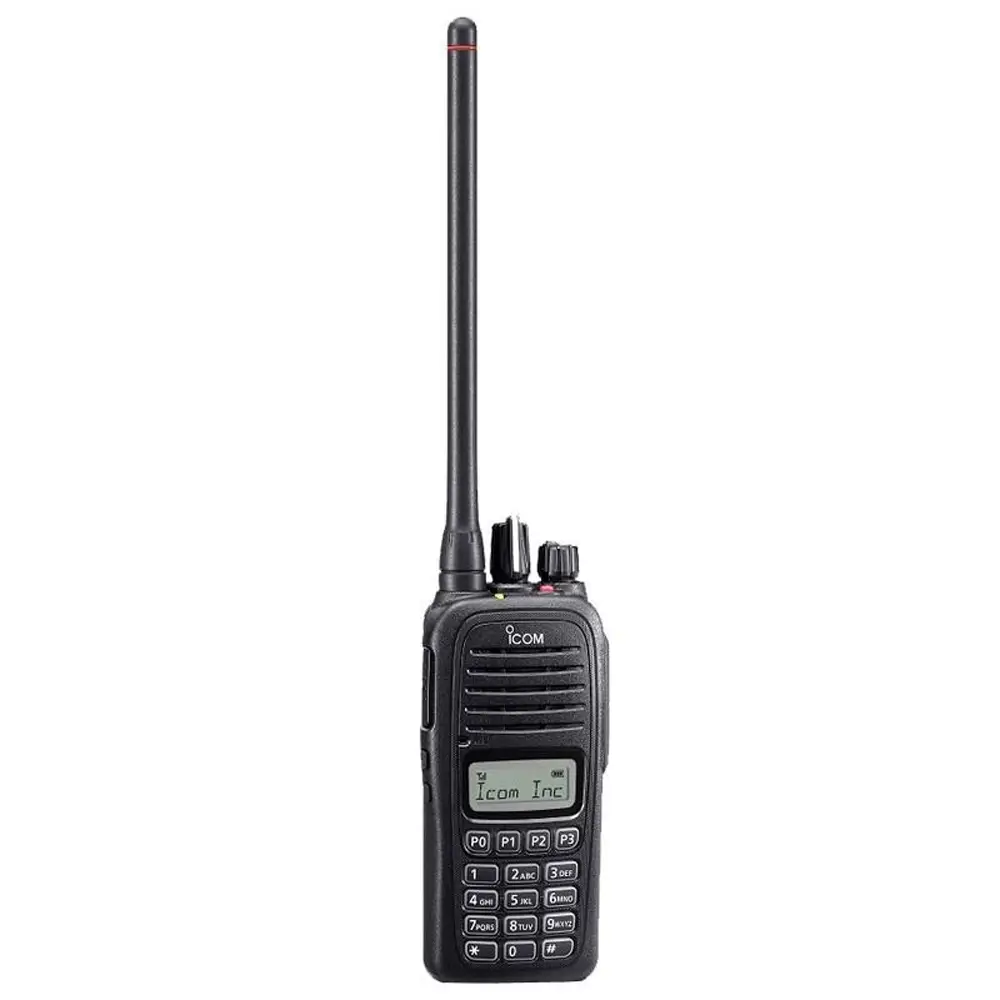

Icom IC-U88 UHF
Icom IC-U88 UHF adalah handy talky atau radio HT yang cocok digunakan dalam berbagai situasi lingkungan kerja. Salah satu kelebihan utama dari handy talky ini adalah audio yang kuat dan jelas dengan power hingga 750mW* yang didukung oleh BTL amplifier dan speaker besar berukuran 36 mm.
Selain itu, HT ini juga memiliki frekuensi UHF 335-380 Mhz, power hingga 4W dan dilengkapi dengan baterai Li-Ion yang kapasitasnya besar sehingga dapat digunakan hingga 17.5 jam*.
HT UHF ini juga memiliki rangka yang kuat dengan sertifikasi IP54 dan MIL-STD-810 sehingga dapat digunakan di lingkungan yang keras.
HT waterproof ini juga dilengkapi dengan berbagai fitur dan fungsi seperti 200 memory channel, 1 call channel, 6 scan edges, built-in CTCSS dan DTCS encoder/decoder serta 16 DTMF autodial memories.
Selain itu, handy talky UHF ini juga dilengkapi dengan fitur seperti repeater lockout dan busy channel lockout, time-out-timer, power save function dan auto power off, serta wide/narrow channel spacing.
Icom IC-U88 juga mudah dikonfigurasi dan diprogram melalui PC menggunakan software opsional CS-U80.
Kelebihan HT ini adalah dapat melakukan transceiver-to-transceiver cloning dengan opsional cloning cable.
Dengan segala kelebihannya, HT Icom pilihan yang tepat untuk komunikasi yang cepat dan jelas dalam berbagai situasi.
Fitur Icom IC-U88 UHF
- Frequency coverage :
- (Differs according to version ) 335-380MHz
- Dimensions
- (WHD; Proj. not included) 5811230 mm
- Weight
- (approx.) 360g
- with antenna and BP-264
- Output power
- (at 7.2V DC) 4.0W, 2.0W, 0.5W
- (typical values)
- Sensitivity
- (at 12dB SINAD) 0.2V typ.
- Audio output power
- (at 10% distortion) 750mW typ. (Internal SP, 16 load)
- 450mW typ. (External SP, 8 load)
- Handy Talky ICOM IC-U88
- Radio HT Icom IC-U88
- Tough body and powerful audio!
- 750mW* loud and intelligible audio with BTL amplifier and large 36mm speaker * Typical value with internal speaker.
- Powerful 4W of output power
- IP54 and MIL-STD-810 rugged construction
- Large capacity Li-Ion battery pack provides 17.5 hours* of operating time.* Typical operation. 5:5:90 duty cycle with auto power save.
- Integrated VOX function.
- 200 memory channels, 1 call channel and 6 scan edges.
- Built-in CTCSS and DTCS encoder/decoder.
- 5 character alphanumeric display.
- Priority, program, memory, skip and tone scanning.
- 16 DTMF autodial memories
- Repeater lockout and busy channel lockout.
- Time-out-timer.
- Power save function and auto power off.
- PC programmable (With optional CS-U80).
- Transceiver-to-transceiver cloning (Optional).
- Wide/narrow channel spacing.
Spesifikasi Icom IC-U88 UHF
IC-V88 |
IC-U88 |
||
|---|---|---|---|
| Frequency coverage |
136MHz–174MHz
|
335MHz–380MHz
|
|
| Type of emission |
16K0F3E, 11K0F3E (25/12.5kHz)
|
||
| Number of channels |
128 channels
|
||
| Antenna impedance |
50Ω
|
||
| Power supply requirement |
7.5V DC
|
||
| Operating temperature range |
−30°C to +60°C (Radio only)
|
||
| Frequency stability |
±2.5ppm
|
||
| Current drain (approx.) |
Tx High | 1.5A | 1.3A |
| Rx Max. audio/Stand-by |
330mA
(Internal SP) /77mA |
300mA
(Internal SP)/80mA |
|
| Dimensions (W×H×D) (Projections not included) |
52.2×111.8×22.3 mm (with BP-278)
|
||
| Weight |
230g (with BP-278)
|
||
Transmitter
IC-V88 |
IC-U88 |
|
|---|---|---|
| Output power (at 7.5V) |
5.5/2.0/0.5W
(Hi/L2/L1) |
4.0W/2.0W/1.0W
(Hi/L2/L1) |
| Max. frequency deviation |
±5.0kHz/±2.5kHz (Wide/Narrow)
|
|
| Spurious emissions |
70dB min.
|
|
| Ext. microphone connector |
3-conductor 2.5(d)mm (1/10″)/2.2kΩ
|
|
Receiver
IC-V88 |
IC-U88 |
||
|---|---|---|---|
| Sensitivity |
0.25μV typ. (at 12dB SINAD)
|
||
| Squelch sensitivity |
0.25μV typ. (at threshold)
|
||
| Adjacent channel selectivity |
76dB/53dB typ.
(Wide/Narrow) |
73dB/56dB typ.
(Wide/Narrow) |
|
| Intermodulation |
74dB typ.
|
73dB typ.
|
|
| Spurious response |
70dB min.
|
||
| Audio output power | Internal SP |
800mW typ. (12Ω load)
|
|
| External SP |
400mW typ. (8Ω load)
|
||
| External speaker connector |
3-conductor 3.5(d)mm (1/8″)/8Ω
|
||
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard | MIL-810 G Method, Proc. |
|---|---|
| Low Pressure Storage |
500.5 I
|
| Low Pressure Operation |
500.5 II
|
| High Temperature Storage |
501.5 I
|
| High Temperature Operation |
501.5 II
|
| Low Temperature Storage |
502.5 I
|
| Low Temperature Operation |
502.5 II
|
| Temperature Shock |
503.5 I-C
|
| Solar Radiation |
505.5 I
|
| Rain Blowing |
506.5 I
|
| Rain Drip |
506.5 III
|
| Humidity Induced |
507.5 II
|
| Salt Fog |
509.5
|
| Dust Blowing |
510.5 I
|
| Immersion |
512.5 I
|
| Vibration |
514.6 I
|
| Shock Functional |
516.6 I
|
| Shock Transit Drop |
516.6 IV
|
Also meets equivalent MIL-STD-810 -C, -D, -E and -F.
| Ingress Protection Standards | |
|---|---|
| Dust & Water |
IP67 (Dust-tight and waterproof protection)
|
Standar Paket Icom IC-U88 UHF
- Baterai – BP-278 Lithium,1190 mAh
- Desktop Charger – BC-213, Adaptor Charger – BC-123
- Antena
- Belt clip
- Manual book
Aksesoris Opsional Icom IC-U88 UHF
- Baterai – BP-279, BP-280
- Antena – FA-SC02U, FA-SC01U
- Multi Charger – BC-157S Adaptor Charger, BC-214N Desktop Multi Charger
- Belt Clip – MB-133
