Icom IC-F62D

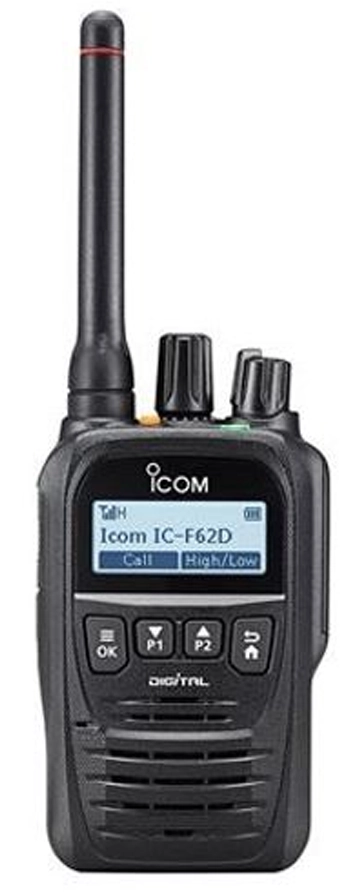

Icom IC-F62D HT Digital UHF

HT Icom IC-F62D adalah handy talky HT digital frekuensi HT UHF single band 350–400 MHz, 400–470 MHz, 450–512 MHz, atau 450–520 MHz. Dengan 512 saluran dan 128 zona, memberikan fleksibilitas tinggi dalam pengaturan saluran. Tampilan dot-matrix penuh, dan beragam fungsi termasuk Bluetooth®, perekaman suara, dan manajemen baterai HT cerdas. HT Waterproof IP67/66/65/54.

Dengan mode operasi serbaguna termasuk NXDN atau dPMR mode konvensional, multi-site konvensional melalui jaringan IP, serta trunking NXDN dan dPMR mode 3.

Mode Operasi Serbaguna

IC-F62D mendukung berbagai mode operasi, termasuk NXDN atau dPMR mode konvensional, multi-site konvensional melalui jaringan IP, serta trunking NXDN dan dPMR mode 3 (tergantung pada wilayah dan lisensi yang diperlukan).

• NXDN or dPMR mode 1/2 conventional
• NXDN or dPMR multi-site conventional over IP network
• Single/multi-site trunking NXDN type-D (License key, ISL-UGMTR required)
• dPMR mode 3 trunking (License key, ISL-UGMD3 required. Not available in all regions.)
• 12.5 kHz digital mode (NXDN conventional)
• Analog mode
• Analog/digital mixed operation

Tampilan Icom IC-F62D Dot-Matrix Penuh

Dilengkapi dengan layar dot-matrix penuh, IC-F62D menampilkan informasi dengan jelas dan mudah dibaca, mempermudah navigasi dan konfigurasi.

Fungsi Bluetooth®, Perekaman Suara, dan Noise Cancelling Aktif

Dengan Bluetooth® bawaan, Icom IC-F62D mendukung koneksi nirkabel. Fungsi perekaman suara dan noise cancelling aktif memberikan kualitas suara yang optimal dalam berbagai kondisi lingkungan.

Fungsi Deteksi Gerak dan Keamanan Pekerja

Deteksi gerak/stasioner, fungsi Man Down, dan Lone Worker, IC-F62D memberikan keamanan tambahan dengan mengirimkan sinyal darurat dalam situasi darurat atau ketika radio tidak digunakan.

Fungsi OTAP dan Manajemen Baterai Cerdas

Dengan fungsi OTAP memudahkan konfigurasi radio di lapangan tanpa perlu sentuhan fisik. Manajemen baterai cerdas membantu memperpanjang masa pakai baterai untuk penggunaan yang lebih efisien.

Fungsi Digital (Suara dan Data)

Berbagai fungsi digital meliputi vocoder AMBE+2™, OTAP, alias Over-the-Air (OAA), pembaruan Over-the-Air (OTAU), komunikasi langsung, panggilan individu, grup, dan semua panggilan, serta beragam mode data dan pengaturan panggilan.

• AMBE+2™ vocoder
• OTAP Over-the-Air Programming function (OTAP manager, CS-OTPM1 required)
• Over-the-Air Alias (OAA) sends own name with a call
• Over-the-Air Update (OTAU) changes the repeater channel data and site code over the air (NXDN type-D trunking)
• Direct mode communication
• Individual, group and all call
• Late entry for group call
• Status call and polling
• Short data messages
• Call alert (NXDN)
• Transparent data mode

Fungsi Analog Terlengkap

IC-F62D tidak hanya mendukung fungsi digital, tetapi juga berbagai fungsi analog seperti CTCSS, DTCS tone, 2-Tone, 5-Tone, MDC functions, BIIS 1200, dan mode LTR™ trunking (tergantung pada versi).

Spesifikasi Icom IC-F62D

GENERAL
	IC-F52D	IC-F62D
Frequency coverage*	136–174 MHz	(NXDN Version)
(* Depending on version)		350–400, 400–470,
		450–512, 450–520 MHz
		(dPMR Version)
		400–470 MHz
Number of channels	512 channels /128 zones
Type of emission*	(NXDN Version)
(* Depending on version)	16K0F3E*, 14K0F3E,
	11K0F3E, 8K50F3E,
	8K30F1E/D, 4K00F1E/D
	(dPMR Version)
	16K0F3E*, 14K0F3E,
	8K50F3E, 4K00F1E/D
Power supply requirement	7.5 V DC nominal
Current drain (approx.)	Tx 1.8 A
	Rx 500 mA /170 mA
	(Max. audio (internal SP)/Standby)
Antenna impedance	50 Ω
Operating temperature range	−30 °C to +60 °C;
	−22 °F to +140 °F
Dimensions	56 × 91.5 × 36.5 mm; 2.2 × 3.6 × 1.4 in
(W × H × D;	(With BP-294)
Projections not included)
Weight (approx.)	125 g; 4.4 oz (main unit)
	270 g; 9.5 oz (BP-294, MBB-3)
TRANSMITTER
	IC-F52D	IC-F62D
Output power (Hi, L2, L1)	5 W, 2 W, 1 W
Frequency stability	±1.0 ppm
Spurious emissions	80 dB typ. (USA)
	0.25 μW (≤ 1 GHz), 1.0 μW (> 1 GHz) (EUR)
FM Hum and noise	57 dB typ. (@25 kHz),	57 dB typ. (@25 kHz),
	55 dB typ. (@12.5 kHz)	56 dB typ. (@12.5 kHz)
	(USA)	(USA)
Audio harmonic distortion	0.4% typ. (AF 1 kHz 40% deviation)
FSK error	1% typ. (@DVN, DN)
RECEIVER
	IC-F52D	IC-F62D
Sensitivity
Analog (12 dB SINAD)	0.23 μV typ.
Analog (20 dB SINAD)	−4.0 dBμV emf typ.	−4.0 dBμV emf typ.
	(@25 kHz),	(@25 kHz),
	−1.4 dBμV emf typ.	−1.1 dBμV emf typ.
	(@12.5 kHz)	(@12.5 kHz)
Digital	−5.0 dBμV emf typ.	−4.0 dBμV emf typ.
(1% BER)	(0.28 μV typ. ) (@DVN),	(0.32 μV typ. ) (@DVN),
	−3.0 dBμV emf typ.	−3.0 dBμV emf typ.
	(0.35 μV typ. ) (@DN)	(0.35 μV typ. ) (@DN)
Adjacent channel
Analog	79 dB typ. (@25/20 kHz),	76 dB typ. (@25/20 kHz),
	77 dB typ. (@12.5 kHz)	73 dB typ. (@12.5 kHz)
Digital	70 dB typ. (@DVN),	66 dB typ. (@DVN),
	72 dB typ. (@DN)	68 dB typ. (@DN)
Spurious response rejection	76 dB typ.	78 dB typ.
Intermodulation rejection
Analog	76 dB typ. (USA)	74 dB typ. (USA)
	68 dB typ. (EUR)	68 dB typ. (EUR)
Digital	73 dBμV emf typ. (@DVN)/−40 dBm typ. (@DN)
Audio output power
Internal SP	1300 mW typ. (at 5% distortion, 8 Ω load)
External SP	1000 mW typ. (at 5% distortion, 8 Ω load)
	1300 mW typ. (at 5% distortion, 8 Ω load) with HM-222H*
Measurements made in accordance with TIA-603, EN300 086, EN301 166, EN300 113.



Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
Standard	MIL-810 G
	Method	Procedure
Low Pressure	500.5	I, II
High Temperature	501.5	I, II
Low Temperature	502.5	I, II
Temperature Shock	503.5	I-C
Solar Radiation	505.5	I
Rain Blowing/Drip	506.5	I, III
Humidity	507.5	II
Salt Fog	509.5	–
Dust Blowing	510.5	I
Immersion	512.5	I
Vibration	514.6	I
Shock	516.6	I, IV
Also meets equivalent MIL-STD-810-C, -D -E and -F.



Applicable IP Rating
Ingress Protection Standard
Dust & Water	IP67/66/55/54
Some functions and options will be available in the future.



Aksesoris Icom IC-F62D

• Baterai Icom BP-290, Li-ion, 2010 mAh, IP67 (Discontinued)
• Antena Icom FA-SC01U, UHF Antenna, 350-400 MHz
• Single Desktop Charger Icom BC-219N, Adapter Charger Icom BC-123SE
• Belt Clip Icom MBB-3

Aksesoris Opsional

• Baterai

  • Icom BP-291, Baterai Case
  • Icom BP-294, Li-ion, 3150 mAh, IP67

• Antena

  • Icom FA-SC25U, UHF, 400-430 MHz
  • Icom FA-SC57U, UHF, 430-470 MHz
  • Icom FA-SC72U, UHF, 470-520 MHz
  • Icom FA-SC26US, UHF Stubby Antenna, 400-450 MHz
  • Icom FA-SC73US, UHF Stubby Antenna, 450-490 MHz
  • Icom FA-SC61UC, UHF Cut Type Antenna, 380-520 MHz

• Charger

  • Single Rapid Charger
    • Desktop Charger Icom BC-225, Adapter Charger Icom BC-123SE
    • Desktop Charger Icom BC-227, Adapter Charger Icom BC-123SE
  • Rapid Multi Charger
    • Desktop Charger Icom BC-214N, Adapter Charger Icom BC-157S
    • Desktop Charger Icom BC-226, Adapter Charger Icom BC-228

• Belt Clip & Leather Case

  • Icom MB-136, Swivel belt clip
  • Icom LC-187, Hard carryng case
  • Icom LC-188, Hard carrying case
  • Icom LC-190, Hard carrying cases

• Speaker Microphone

  • Icom HM-222, Discontinued
  • Icom HM-222H

• Power Supply & Programming Cables

  • Icom CP-23L, Cigarette Lighter Cable
  • Icom OPC-515L, DC Power Cable
  • Icom OPC-656, DC Power Cable (Discontinued)
  • Icom OPC-1870, Programming Cable
  • Icom OPC-2338, Programming Cable
