Icom IC-F1000D
DISCONTINUED
HT VHF Icom IC-F1000D original dengan frekuensi VHF 136-174 MHz, 18 channel memori, power output 5 watt, waterproof, IP54.

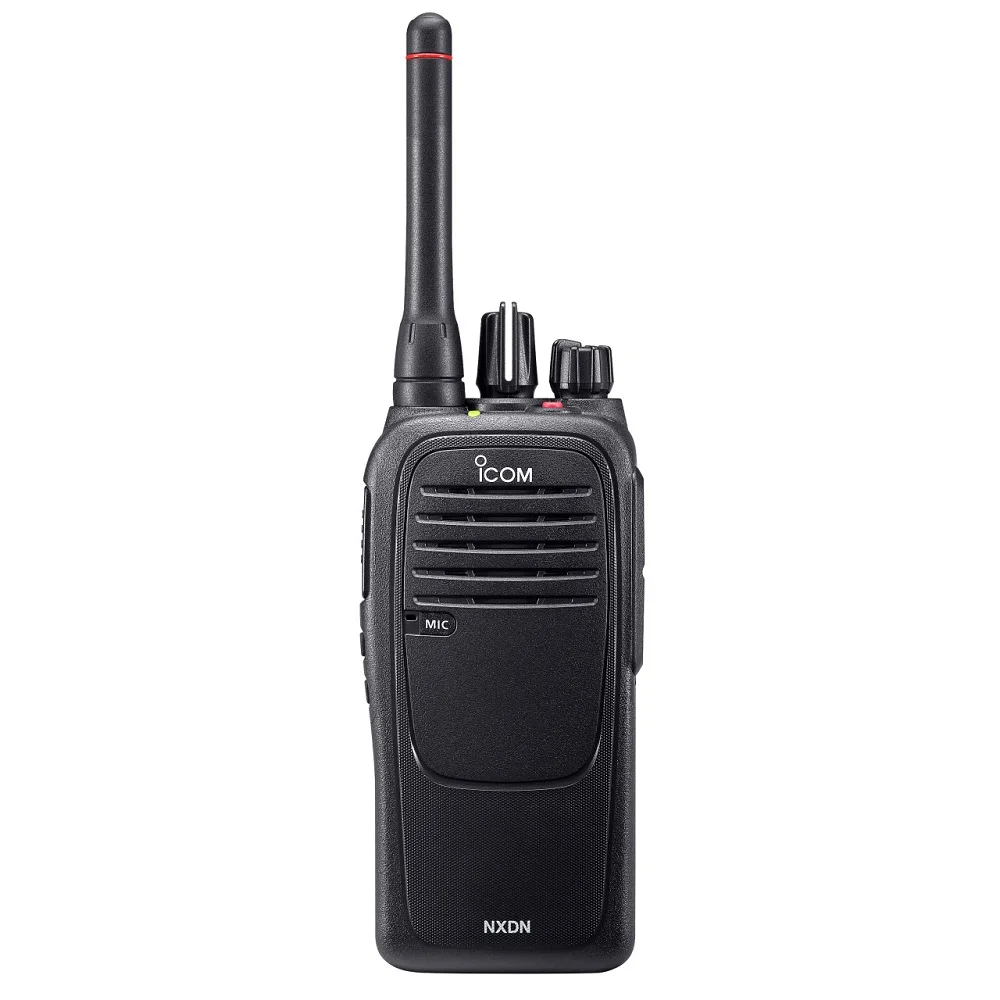

Icom IC-F1000D
Icom IC-F1000D adalah handy talky yang menggunakan teknologi IDAS™ terbaru. Dengan power output audio 1500 mW, radio HT ini menghadirkan kualitas suara yang jelas dan keras. Ukurannya dan material HT ini juga tahan air serta debu sehingga ideal untuk penggunaan di berbagai kondisi.
Fitur-Fitur Icom IC-F1000D
Rentang Frekuensi Luas
HT ini dapat bekerja pada frekuensi VHF 136-174 MHz.
Kualitas Suara Jernih
Radio HT ini memiliki speaker berkualitas tinggi dengan power output audio 1500 mW.
Tahan Air & Tahan Banting
HT Icom ini dibuat dengan sertifikasi IP Rating IP67/55/54 sehingga tahan debu dan percikan air. Selain itu, HT ini juga dibuat dengan standar MIL-STD-810-G sehingga tahan getaran hingga tahan banting.
Ada juga fitur AquaQuake™ yang dapat mencegah masuknya air ke dalam grill speaker.
Pengaturan Mudah
HT VHF ini dibuat dengan pengaturan yang mudah dengan tombol putar/knob 16 posisi dan tombol volume ON/OFF.
Lampu Indikator LED
Terakhir, HT waterproof ini dilengkapi dengan tiga warna LED sebagai indikator status.
Spesifikasi Icom IC-F1000D
| General | |
| Frequency coverage (MHz) | VHF 136–174MHz |
| Number of channels | 16 channels |
| Type of emissions | 16K0F3E, 11K0F3E, 8K50F3E, 4K00F1E/D |
| Channel spacing | 30KHz, 15KHz, 6.25KHz, 25KHz, 12.5KHz, 6.25KHz |
| Power supply requirement | 7.5 VDC nominal |
| Current drain | |
| TX High | 1.3A |
| RX Max. audio/ Sandby | 400mA (Internals SP) / 110mA |
| Antenna Impedance | 50Ω |
| Operating temperature range | -30°C to 60°C; –22°F to +140°F (radio specifications) |
| Dimensions (W×H×D) | |
| (Projections not included) | 52.2 × 111.8 × 30.3 mm; 2.06 × 4.4 × 1.19 in (With BP-280) |
| Weight | 260g; 9.17oz (With MB-133 and BP-280) |
| Transmitter | |
| Output power | 5W, 2W, 1W (Hi, L2, L1) |
| Max. frequency deviation | ± 5.0kHz/±2.5kHz (Wide/Narrow) |
| Frequency stability | ±1.0ppm |
| Spurious emissions | 70dB min. |
| FM hum and noise | 46/40dB typ. (Wide/Narrow) |
| Audio harmonic distortion | 2.0%/1.1% typ. (W/N) |
| (AF 1kHz 40% deviation) | |
| FSK error | 5.0% max. |
| Ext. microphone connector | 3-conductor 2.5 (d) mm (1/10″)/2.2kΩ |
| Receiver | |
| Sensitivity | |
| (at 12dB SINAD) | 0.21µV typ. (Analog)(W/N) |
| (at 5% BER) | –8dBµV emf typ. (Digital) |
| Adjacent channel selectivity | 77/69/59dB typ. (W/N/D) |
| Spurious response | 80dB min. |
| Intermodulation | 75/75/71dB typ. (W/N/D) |
| Hum and noise | 47/43dB typ. (W/N) |
| Ext. speaker connector | 2-conductor 3.5 (d) mm (1/8″)/8O |
| Audio output power (at 5% distortion) | |
| Internal SP (w/12Ω load) | 800mW typ. (at 5% distortion) |
| External SP (w/8Ω load) | 400mW typ. (at 5% distortion) |
Measurements made in accordance with TIA-603.
All stated specifications are subject to change without notice or obligation.
*25kHz bandwidth is no longer available for FCC Part 90 licensees for USA versions.
Ask your dealer if you need 25kHz bandwidth.
Applicable U.S. Military Specifications
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
| Standard | MIL 810 F | |
| Method | Proc | |
| Low Pressure | 500.5 | I, II |
| High Temp. | 501.5 | I, II |
| Low Temp. | 502.5 | I, II |
| Temp. Shock | 503.5 | I |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | – |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Immersion | 512.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
| Ingress Protection Standard | |
| Dust & Water | IP67 (Dust-tight and waterproof protection) |
Aksesoris Original Icom IC-F1000D
- Baterai – BP-279
- Desktop Charger – BC-213
- Adaptor Charger – BC-123SE
- Antena
- Belt clip – MB-133
- Buku Panduan
Aksesoris Opsional Icom IC-F1000D
| Weight | 1,1 kg |
|---|
