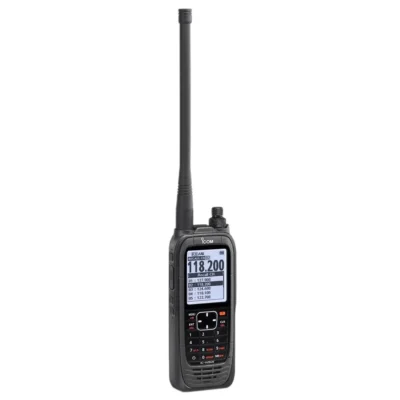

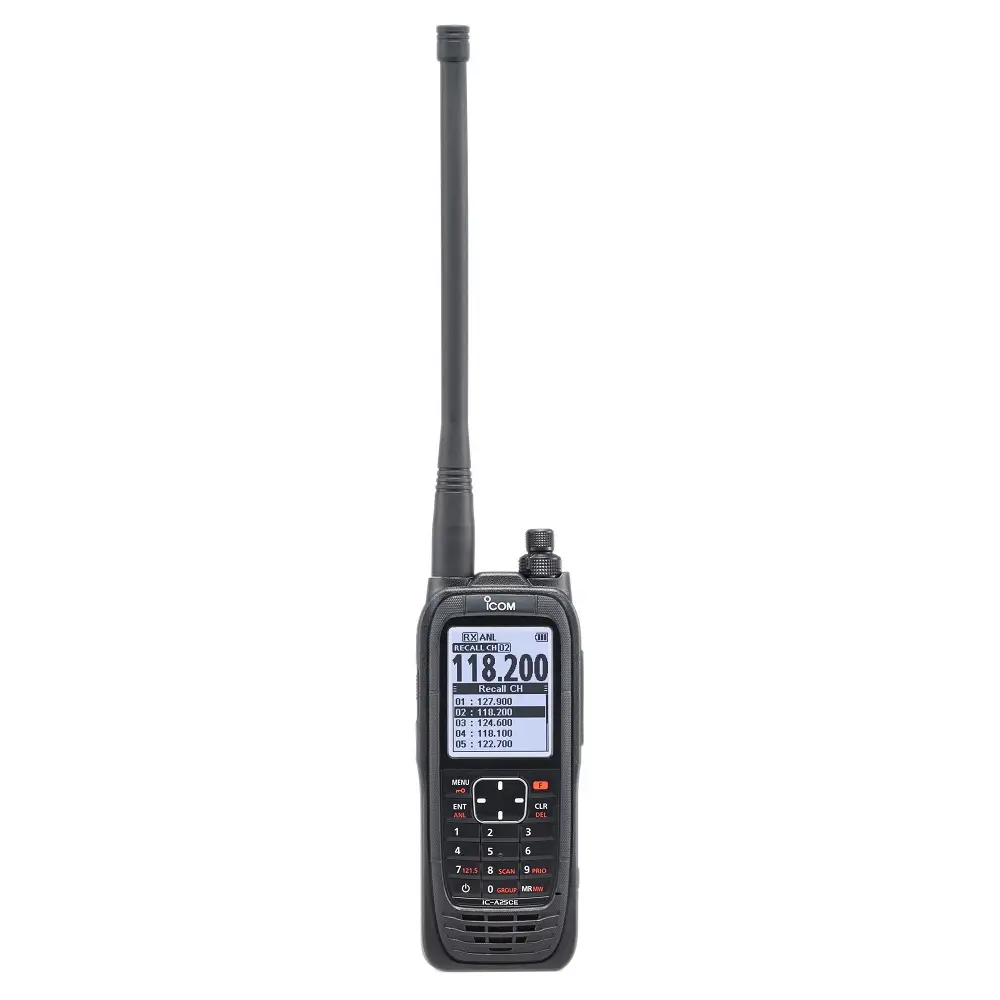

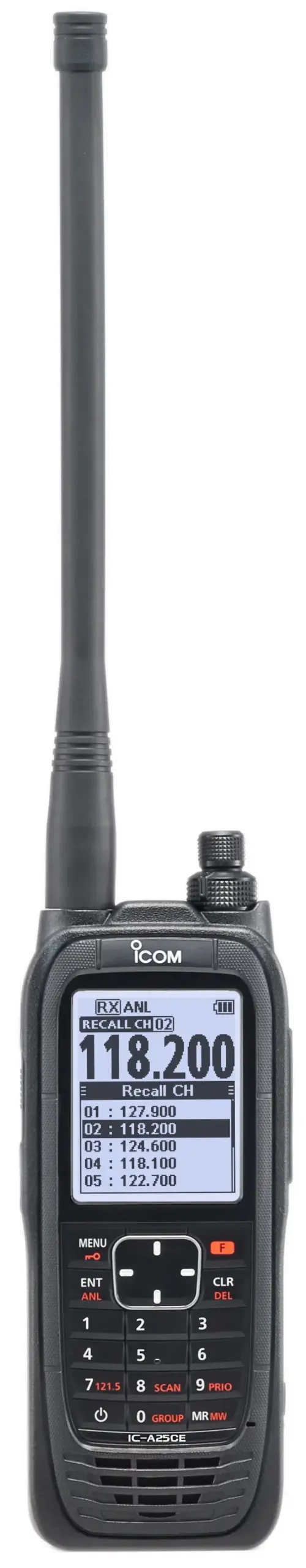

Icom IC-A25CE: HT Airband
Radio penerbangan canggih HT Airband Icom IC-A25CE dengan layar LCD besar 2,3 inci, power output RF 6 watt, antarmuka pengguna yang mudah digunakan memastikan penerbangan yang aman dan nyaman. Baterai HT Icom kapasitas 2350 mAh cerdas, HT Waterproof IP57 tahan debu dan air.
6 Watts High RF Output Power
HT Icom IC-A25CE memiliki power outpu 6W, sehingga jangkauan HT jarak jauh dan lebih luas, sinyal lebih kuat.
Antarmuka Pengguna Icom IC-A25CE IC-A25 Mudah Digunakan
Pengoperasian mudah dengan keypad yang besar, dapat mengakses fungsi-fungsi yang sering digunakan dengan cepat.
Layar LCD Besar 2.3 Inci dengan Keterlihatan Tinggi
Dengan tampilan grafis yang jelas dan kontras tinggi, layar LCD besar 2.3 inci sehingga dapat digunakan di tempat terang. Night mode bisa digunakan sewaktu malam hari dimana intensitas cahaya rendah.

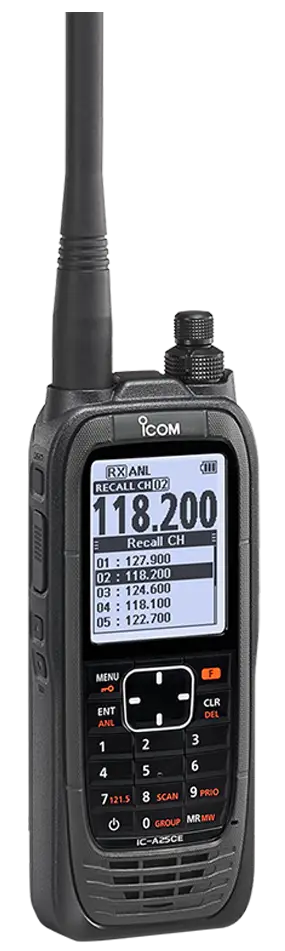

“Flip-Flop” Channel Recall
Icom IC-A25CE dapat menyimpan 10 saluran terakhir yang digunakan. Saluran tersebut dapat dengan mudah dipanggil kembali.
Baterai HT Icom IC-A25CE IC-A25 Cerdas
Dengan baterai HT Icom BP-288 kapasitas 2350 mAh pengoperasian bisa bekerja hingga 10,5 jam. Baterai cerdas dengan layar status baterai untuk memantau kondisi baterai.
Fitur Icom IC-A25CE IC-A25 Lainnya:
- Konstruksi tahan debu dan air HT waterproof IP57
- Operasi dengan enam baterai alkalin ukuran AA dengan casing baterai BP-289
- Antena BNC
- Tombol darurat 121,5 MHz
- Saluran cuaca
- Prioritas watch
- Pemindaian VFO, pemindaian saluran memori, pemindaian prioritas
- ANL (Auto Noise Limiter) untuk pengurangan noise
- Fungsi side tone
- Kemampuan VOX internal
- 300 saluran memori (dalam 15 grup memori) dengan nama 12 karakter
- Spasi saluran 8,33 kHz.
Spesifikasi Icom IC-A25CE IC-A25 VHF Airband
IC-A25CE | |
---|---|
Frequency range | TX: 118.000–136.992 MHz |
RX: 118.000–136.992 MHz | |
Number of memory channels | 300 channels/15 groups |
Channel spacing | 25/8.33 kHz |
Type of emission | 6K80A3E, 5K00A3E |
Power supply requirement | 7.2 V DC (BP-288), 11.0 V DC (External DC Jack) |
Current drain (approximately) | Tx High: Less than 1.8 A |
RX Max. audio/Stand-by: Less than 500 mA, 90 mA typ. (GPS, Bluetooth, Light: OFF) |
|
Antenna impedance | 50 Ω |
Operating temperature range | −20 °C to +55 °C |
Dimensions (W × H × D; projections not included) | 58.9 × 148.4 × 31.8 mm |
Weight (approximately) | 340 g (with BP-288) |
TRANSMITTER |
|
Output power (at 7.2 V DC) | 6.0/1.8 W (PEP/carrier) |
Audio harmonic distortion | Less than 10% (at 85% modulation) |
Harmonics Spurious emissions | Less than −36 dBm (except operating frequency ±1 MHz) |
Frequency stability | ±1 ppm |
RECEIVER |
|
Output power | 6.0/1.8 W (PEP/carrier) |
Audio harmonic distortion | Less than 10% (at 85% modulation) |
Harmonics Spurious emissions | Less than −36 dBm (except operating frequency ±1 MHz) |
Frequency stability | ±1 ppm |
Intermediate frequencies | 46.35 MHz/450 kHz (1st/2nd) |
Sensitivity | NAV (6 dB S/N) |
COM (12 dB SINAD) | |
Squelch sensitivity (at threshold) | Less than 0 dBμ |
Adjacent channel rejection | More than 60 dB |
Spurious response | and More than 70 dB |
Hum and noise | More than 40 dB (at 90% modulation) |
Audio output power | External speaker: 530 mW typical (AM 8 Ω/60% Mod at 10% distortion) |
Internal speaker: 1200 mW typical (AM 8 Ω/60% Mod at 10% distortion) | |
Ext. speaker connector | 3-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω |
Pengukuran dilakukan sesuai dengan EN300 676-2. Semua spesifikasi yang disebutkan dapat berubah tanpa pemberitahuan atau kewajiban.
Applicable U.S. Military Specifications
Standard: MIL-810 G
Standard | Method | Procedure |
---|---|---|
Low Pressure | 500.5 | I, II |
High Temperature | 501.5 | I, II |
Low Temperature | 502.5 | I, II |
Temperature Shock | 503.5 | I-C |
Solar Radiation | 505.5 | I |
Rain Blowing/Drip | 506.5 | I, III |
Humidity | 507.5 | II |
Salt Fog | 509.5 | – |
Dust Blowing | 510.5 | I |
Immersion | 512.5 | I |
Vibration | 514.6 | I |
Shock | 516.6 | I, IV |
Rating IP yang berlaku
Ingress Protection Standard | Water |
---|---|
IP Rating | IP57 (Dust-protection and Waterproof* protection) |
Waterproof Depth | One meter |
Duration of Immersion | 30 minutes |
Note | *Waterproof for 30 minutes at a depth of 1 meter |

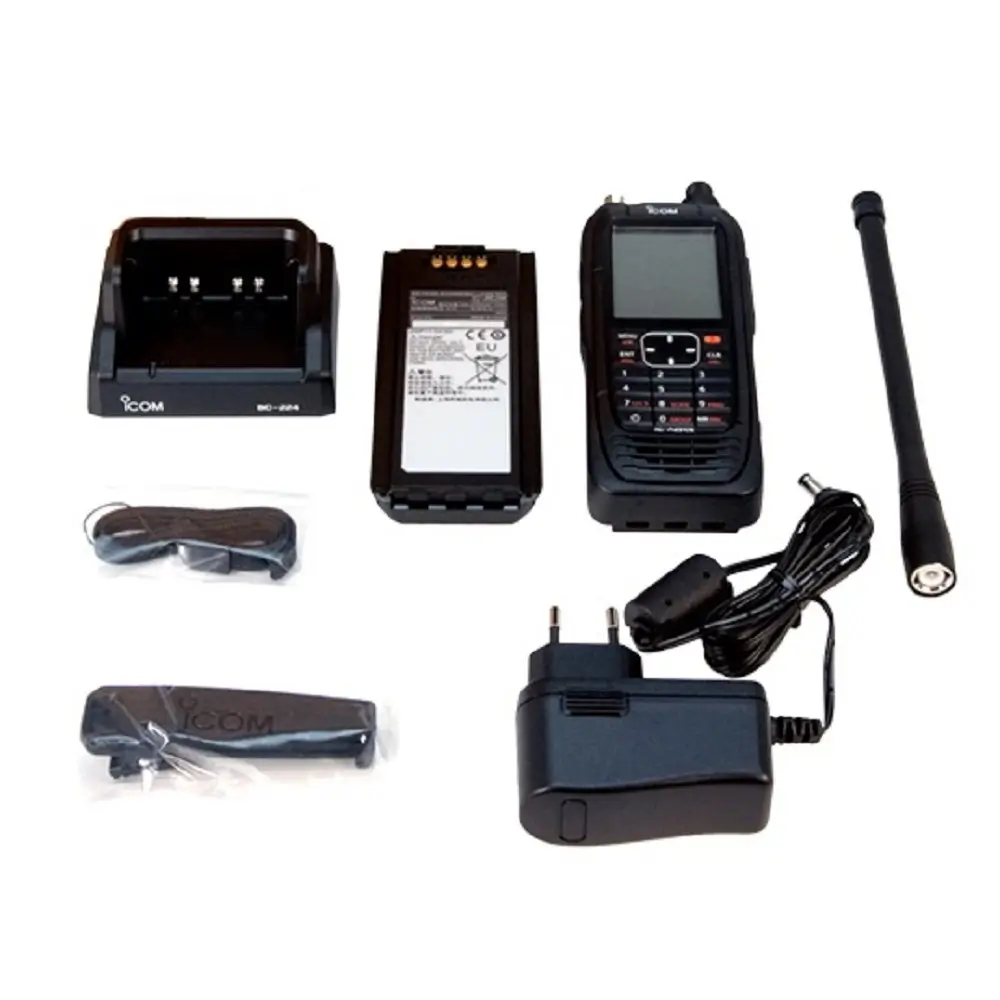

Aksesoris Icom IC-A25/IC-A25CE
-
Baterai Icom IC-A25/IC-A25CE, BP-288 Li-ion 2350 mAh
-
Charger Icom IC-A25/IC-A25CE, BC-124 (Adaptor Charger), BC-224 (Desktop Charger)
-
Antena Icom IC-A25/IC-A25CE, FA-B02AR VHF 118 MHz–137 MHz
- Belt Clip IcomIC-A25/IC-A25CE, MB-133
Aksesoris Opsional
-
Baterai
- Casing Baterai ICOM IC-A25/IC-A25CE, BP-289
- Cable
- Cigarrate Lighter Cable CP-20
- Programming Cable OPC-478UC
-
Microphone
- Microphone Waterproof, HM-231
