Icom IC-M802
DISCONTINUED

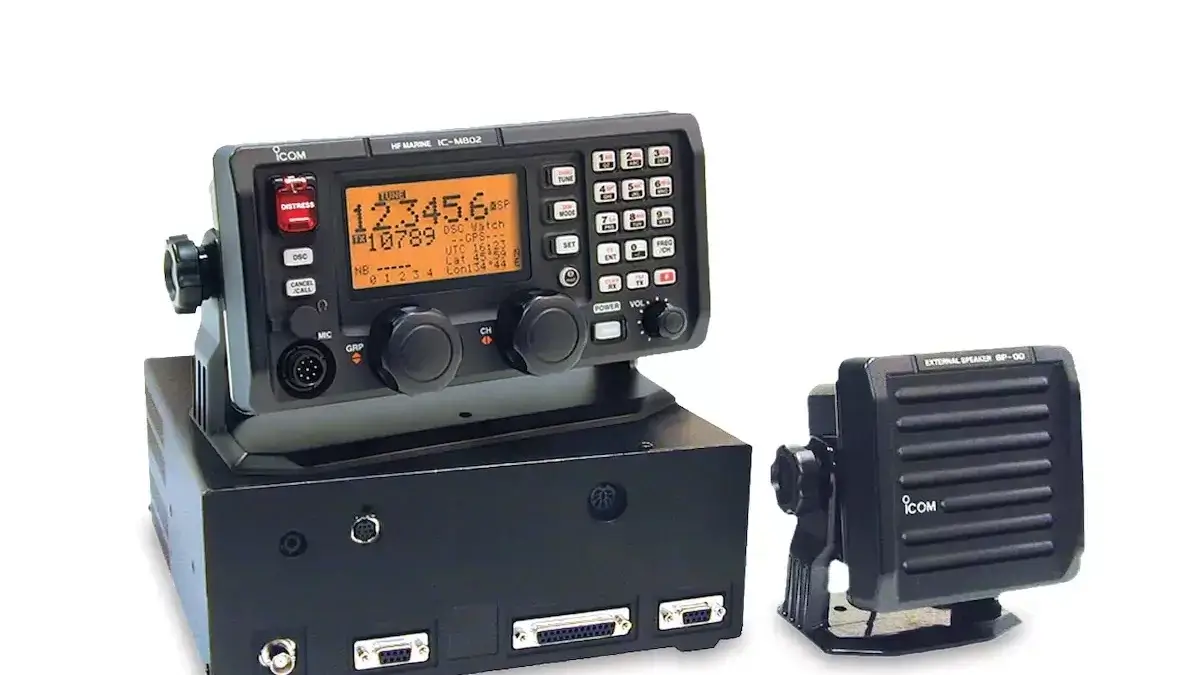

ICOM IC-M802 For added safety at sea, the IC-M802 offers the latest in one-touch DSC emergency communications technology.
ICOM IC-M802 The latest ICOM Digital Signal Processor technology with a compact remote head
Read a Quick Reference Guide for the M802 here!
*Click the image below to view the PDF review
Standard 4×8 remote controller
The IC-M802 offers an industry-standard 4-inch tall (10.16 cm) remote controller. When set up with the IC-M502 / IC-M504 VHF radio, Icom offers you a complete communications station.
Large LCD with dot matrix characters
You can easily read the alphanumeric name of any of the 1355 ITU channels at a glance with the large LCD display. Nighttime operation is no problem with 10 levels (plus OFF) adjustable backlit display and keypad.
Easy to use in all conditions
The IC-M802 offers two large dials – bank and channel – for easy channel selection. Up to 16 banks of 20 (max.) each for user channels, and 17 banks for ITU channels are available.
Built-in digital selective calling
For added safety at sea, the IC-M802 offers the latest in one-touch DSC emergency communications technology. (ITU Class E standard.) The emergency button is covered by a red, spring loaded hatch to avoid accidental DSC activation.
Learn how to register your DSC radio
Digital signal processor advantage
The speech compressor, utilizing DSP, increases average talk power. Flexible filter settings provide for narrow band signals like e-mail, SITOR, FSK and other operation without an optional filter.
150W (PEP) of powerful output
150 Watts of power offers superior worldwide communications. A one piece, die cast aluminum chassis and a large cooling fan allow continuous transmission at full output power– very important for data communications, like e-mail.
One-touch e-mail access
An SSB first! The IC-M802 can be set to memorize your HF e-mail access frequency, mode and bandwidth settings. At sea e-mail has never been easier.
* Please consult with an HF e-mail provider for details.
Automatic antenna tuner, AT-140
An optional automatic antenna tuner, AT-140, easily connects to the IC-M802. When the tuner cannot tune the antenna, the IC-M802 bypasses the tuner and displays a warning indicator on the LCD.
Other features
- Wide band receive coverage (0.5 – 29.9999MHz)
- Remote control mic allows you to select channels directly
- Accessory RS-232C port allows connection of modem, etc.
- GPS input, NMEA 0183 version 3.01
- A headphone jack in front of the controller
Specifications
| General | |
|---|---|
|
Frequency coverage Rx Tx |
(unit: MHz) 1.6– 2.9999, 4.0– 4.9999, 6.0– 6.9999 8.0– 8.9999, 12.0– 13.9999, 16.0– 17.9999 18.0– 19.9999, 22.0– 22.9999, 25.0– 27.5000 |
| Type of emission |
J3E (SSB), J2B (AFSK), F1B *Rx only |
| Number of channels | 1355 (max.) (160 programmable channels; 249 ITU SSB duplex; 72 ITU SSB simplex; 662 ITU FSK duplex; 160 e-mail; 21 ITU 4MHz simplex; 31 ITU 8MHz simplex) |
| Antenna impedance | 50Ω (SO-239) |
| Power supply requirement | 13.6V DC ±15% |
|
Max. current drain (at 13.6V DC) |
Tx (Max. power) 30A (typ.) Rx (Max. audio) 3.0A |
| Operating temp. range Guaranteed range |
–30°C to +60°C; –22°F to +140°F –20°C to +55°C; –4°F to +131°F |
| Frequency stability | ±10 Hz (at –20°C to +55°C) |
|
Dimensions Main unit |
240×94×238.4mm; 97⁄16×31116×93⁄8in 220×110×84.4mm; 821⁄32×411⁄32×35⁄16in 110×110×84.4mm; 411⁄32×411⁄32×35⁄16in |
|
Weight |
4.7kg; 10.36lb 570g; 1.26lb 370g; 0.81lb |
| Transmitter | |
|---|---|
| Output power | 150, 60, 20W PEP (Selectable) |
| Spurious emissions | –62dB |
| Unwanted sideband | 55dB |
| Carrier suppression | 40dB |
| Microphone impedance | 2.4kΩ |
| Receiver | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Sensitivity (at 10dB S/N) |
|
||||||||||||||||||||
|
Spurious response rejection ratio |
|
||||||||||||||||||||
| Audio output power | 4.0W at 10% distortion with a 4Ω load | ||||||||||||||||||||
| Audio output impedance: | 4–8Ω | ||||||||||||||||||||
| Clarity variable range | ±150 Hz | ||||||||||||||||||||
| GPS interface | NMEA 0183 version 3.01 | ||||||||||||||||||||
All stated specifications are subject to change without notice or obligation.
Supplied accessories
- Separation cable, OPC-1106 (5m; 16.4ft)
- Hand microphone, HM-135
- External speaker, SP-24
- Mounting bracket kits
- Microphone hanger
- DC power cables
- ACC plugs
- Spare fuse
System Overview
| Weight | 12 kg |
|---|
