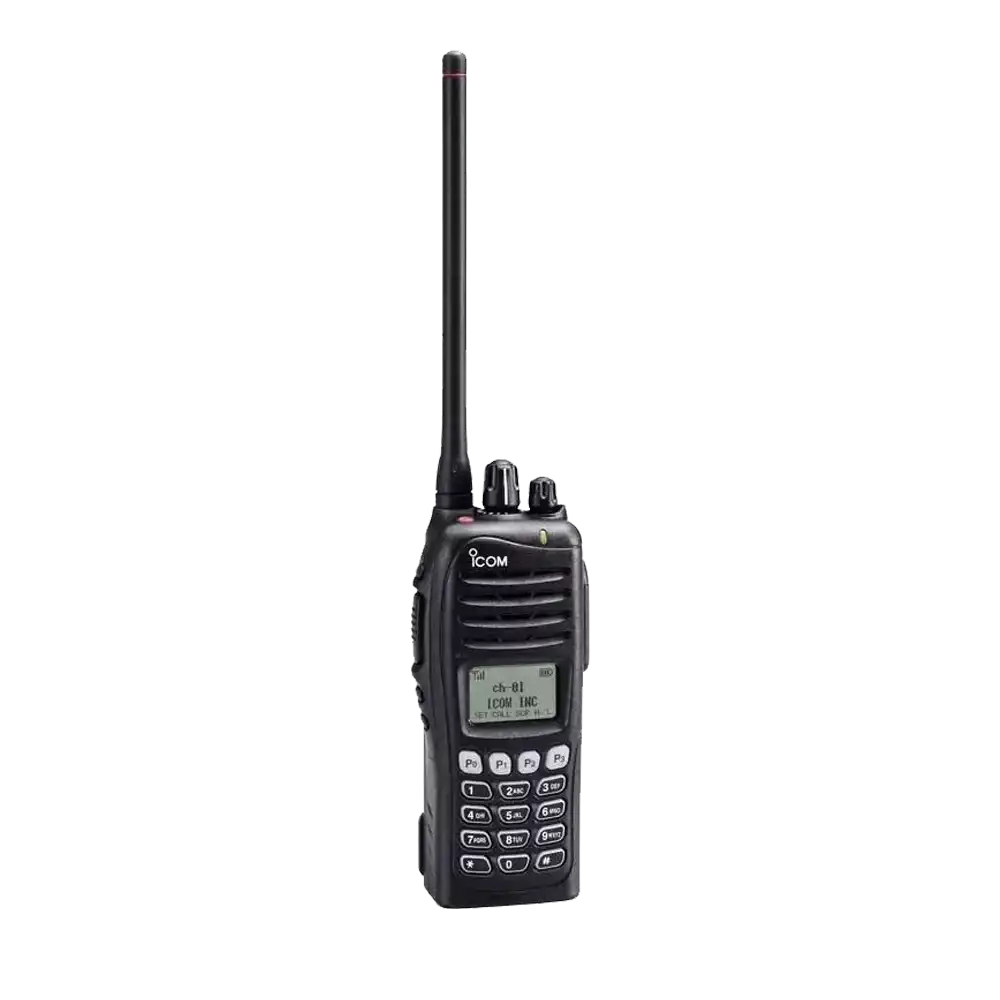

Icom IC-F4161DT

DISCONTINUED

ICOM IC-F4161DT  IDAS (Icom Digital Advanced System) is Icom’s digital conventional and trunking system based on the NXDN™ common air interface.

HT Icom IC-F4161DT

CONVENTIONAL / IDAS™DIGITAL / IDAS™ TRUNKING / LTR™ – MULTI-MODE LAND MOBILE!

IDAS™ digital mode ready

The IDAS (Icom Digital Advanced System) is Icom’s digital conventional and trunking system based on the NXDN™ common air interface.
It has useful calling features including selective calling, status message, radio stun/kill/revive, etc.

IP55 dust-protection and water jet resistance

The IC-F3161D series meets IP55 requirements for dust-protection and water jet resistance. Its durable construction is backed up by the aluminum die-cast chassis and polycarbonate casing, allowing reliable operation under harsh weather and environmental conditions.

Lithium-Ion battery pack

The 2000 mAh (typ.) Li-Ion battery pack BP-232FM, used in the intrinsically safe (FM-approved) configuration, provides 12 hours* of operating time.
* Typical operation Tx:Rx:Stand-by=5:5:90, power save on

Most popular signalings built-in

The 2-Tone, 5-Tone, CTCSS, DTCS and MDC signaling capabilities are built-in for group communication or selective calling. The radio can decode ten 2-Tone codes or eight 5-Tone codes on a channel. When a matched tone is received, the following actions are programmable for each code.

• Beep sound
• Bell icon
• Answer back call
• Auto TX
• Radio stun/kill/revive
• Scan

Basic LTR™/conventional mode operation

Both LTR™ trunking and conventional channels are programmable on a radio. Group, selective (DTMF), and phone call are available in LTR™ mode.

MDC 1200 Compatible

The following selective calling and ANI features are available with the built-in MDC signaling.

• PTT ID
• SelCall
• Radio check
• Radio stun/revive
• 500 Aliases
• Status message/request
• Call alert
• Emergency, emergency mic monitoring

Voting mode scanning

The voting mode scanning detects the signal strength level of repeater stations and automatically selects the strongest station, useful for roaming between 2 or more repeater sites. Once you program the voting mode to a memory zone, you can easily start voting mode operation by changing the zone setting.

Full dot-matrix LCD

 Using a large full dot-matrix LCD (32 × 18 mm), the IC-F3161D series shows upper and lower case characters clearly. The display setting is selectable from 1 line, 12 characters or 2 lines 24 characters via programming. The bottom row shows assigned functions to the [P0] to [P3] buttons.

Enhanced audio

The IC-F3161D series employs a BTL amplifier that increases the audio output and the built-in audio compander provides clear, low noise communications.

Lone worker function

When the radio is not operated for a preset period, a beep sounds and a button push is required. If no button is pushed within that preset time, an emergency signal automatically transmits and alerts your co-worker or dispatcher to any potential trouble.

Intrinsically safe

The intrinsically safe version (radios displaying the FM marking on the label) is approved by FM Approvals. It is suitable for use in hazardous areas where flammable gasses or liquids are used.

Intrinsically safe: Class I, II, III, Division 1, Groups D, E, F, G
Nonincendive: Class I, Division 2, Groups A, B, C, D

Special condition for use Must be used with the BP-232FM battery attached, and either the jack cover or the HM-169IS must be attached to the speaker-microphone connector. The BP-232FM and HM-169IS conform to the intrinsically safe ratings of the FM Approvals. Any other options, except the antenna, VOX/PTT case (VS-1SC), headset (HS-94, HS-95, HS-97), belt clip and belt hanger, cannot be used in explosive atmosphere areas.

Never charge the BP-232FM (with/without the transceiver) in an explosive atmosphere. The optional battery chargers are not approved as intrinsically safe.

Other features

• 512 memory channel with 128 zones
• 8 DTMF autodial memories
• Built-in inversion type voice scrambler
• 2 step reduced power setting
• Busy, repeater lockout functions
• Escalating alarm
• Mode dependent scan
• Surveillance function temporarily turns off the LED backlight and beep sound
• Powerful 5W output both in VHF and UHF
• Flash CPU for future upgrade and more…

• IDAS and IDAS logo are trademarks of Icom Incorporated.
• NXDN is a trademark of Icom Incorporated and JVC KENWOOD Corporation.
• LTR is a trademark of E.F. Johnson Technologies Inc.
• All other trademarks are the properties of their respective holders.

Spesifikasi

Aksesoris Icom IC-F4161DT

• Baterai Icom BP-232FM — baterai yang digunakan pada konfigurasi intrinsically safe/FM-approved ini, Li-ion, 2000 mAh (typ.)
• Regular Charger, Icom BC-171 (Desktop charger), Icom BC-147SE (Adaptor Charger)
• Antena Icom FA-SC25U, UHF 400-430 MHz
• Belt Clip Icom MB-93

Aksesoris Opsional

• Antena

  • Icom FA-SC73US, UHF 450-490 MHz
  • Icom FA-SC61UC, UHF 380-520 MHz
  • Icom FA-SC57U, UHF 430-470 MHz
  • Icom FA-SC72U, UHF 470-520 MHz
  • Icom FA-SC03U, UHF 380-430 MHz
  • Icom FA-SC04U, UHF 330-380 MHz

• Charger

  • Rapid Single Charger,
    • Icom BC-160 (Desktop Charger), Icom BC-123SE (Adapter Charger)
  • Multi Charger
    • Icom BC-197 (Desktop Charger), Icom BC-157S (Adapter Charger)

• Cable

  • Cigarette Lighter Cable, Icom CP-23L
  • DC Power Cable (Multi Charger), Icom OPC-656 (Discontinued)

• Microphone

  • Icom HM-169IS — speaker-microphone untuk konfigurasi intrinsically safe/FM-approved
  • Icom VS-1SC (VOX/PTT case) + headset HS-94, HS-95, atau HS-97

Di area berbahaya, BP-232FM wajib terpasang dan konektor speaker-microphone harus tertutup jack cover atau terpasang HM-169IS. Selain antena, VS-1SC + headset, belt clip, dan belt hanger, aksesori lain (termasuk charger dan kabel) tidak boleh digunakan di area berbahaya. Pengisian baterai dilakukan di luar area berbahaya sesuai petunjuk Icom.
