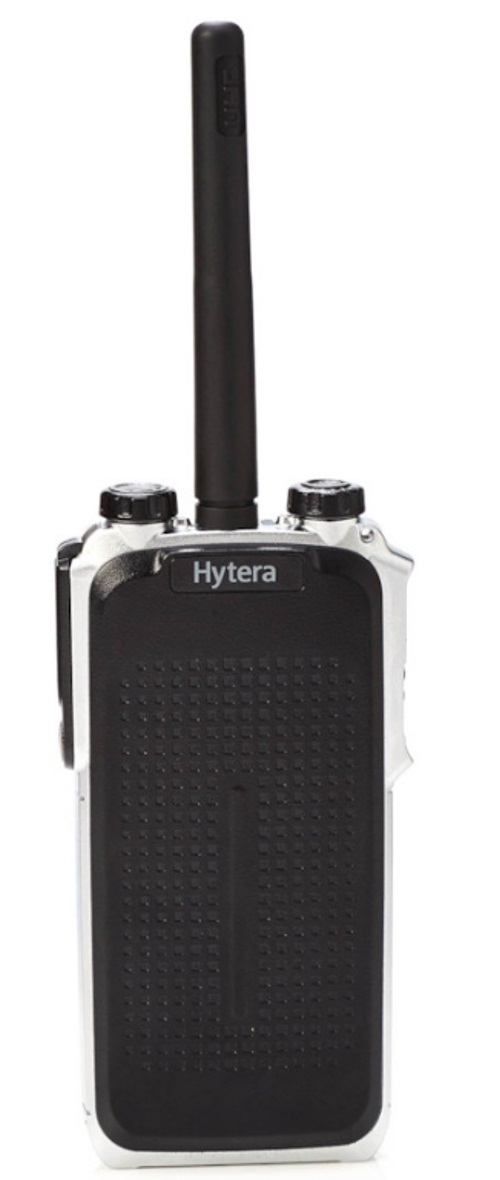

Hytera X1e

Hytera X1e

Hytera X1e adalah handy talky yang tangguh dan mudah digunakan. Dengan bobot yang ringan dan tombol yang mudah dijangkau, pengguna dapat berkomunikasi dengan jelas bahkan saat menggunakan sarung tangan. Radio HT ini tahan air dan debu sehingga cocok digunakan di berbagai kondisi cuaca.

Fitur-Fitur Hytera X1e

Antena

Antena radio dan GPS yang terhubung pada radio HT ini memberikan kenyamanan lebih bagi pengguna serta meningkatkan kemampuan GPS secara signifikan.

Konsep Pemakaian Unik

Dua tombol pada radio HT Hytera ini dipisahkan oleh antena sehingga pemakaian mudah bahkan saat pengguna memakai sarung tangan.

Waterproof

Radio HT ini dibuat dengan rating IP67 sehingga tahan debu dan air. Bahkan HT ini dapat bertahan di dalam air dengan kedalaman hingga satu meter selama minimal 30 menit.

Mudah Digunakan

Dengan ketebalan yang hanya 20 mm, HT VHF ini memiliki desain yang ringan dan mudah digunakan. Pengguna juga dapat menggabungkannya dengan headset tanpa kabel, microphone kerah atau extra mic (aksesoris opsional) agar mudah digunakan.

Tahan Banting

HT waterproof ini telah memenuhi standar militer Amerika MIL-STD-810 C/D/E/F/G tahan benturan dan aman jika terjatuh. Selain itu, HT ini juga cocok digunakan di lokasi dengan aktivitas berat.

Spesifikasi Hytera X1e

General
Frequency range	VHF: 136 – 174 MHz UHF: 400 – 470 MHz UHF2: 450 – 520 MHz UHF3: 350 – 400 MHz
Supported operating modes	DMR Tier II in acc. with ETSI TS 102 361-1/2/3 Simulcast DMR Tier III via chargeable license in acc. with ETSI TS 102 361-1/2/3/4 XPT Digital Trunking Analogue, MPT 1327
Channel capacity	1024
Number of zones	16 (with max.16 channels each)
Channel spacing	12.5/20/25 kHz (analogue) 12.5 kHz (digital)
Operating voltage	7.4V (nominal)
Standard battery	1400 mAh (lithium-ion battery)
Battery life (digital, with lithium-ion batteries) (5-5-90 duty cycle, high transmitting power)	approx. 10 h (with 1100 mAh battery) approx. 12 h (with 1400 mAh battery) approx. 15 h (with 1800 mAh battery)
Frequency stability	± 1.5 ppm
Antenna impedance	50 Ω
Dimensions (H x w x D) (with battery, without antenna)	119.5 x 57 x 18 mm (1100 mAh battery) 119.5 x 57 x 20 mm (1400 mAh battery) 119.5 x 57 x 23 mm (1800 mAh battery)
Weight (with antenna and battery)	approx. 220 g (with 1100 mAh battery) approx. 240 g (with 1400 mAh battery) approx. 260 g (with 1800 mAh battery)
Ambient Data
Operating temperature range	– 30 °C to + 60 °C
Storage temperature range	– 40 °C to + 85 °C
ESD	I EC 61000-4-2 (Level 4), ± 8 kV (contact), ± 15 kV (air)
Dust and water protection	IP67
Shock and vibration resistance	MIL-STD-810 C/D/E/F/G
Relative humidity	MIL-STD-810 C/D/E/F/G
GPS
Time to first position recognition (TTFF) cold start	< 1 minute
Time to first position recognition (TTFF) warm start	<10 seconds
Horizontal accuracy	< 10 metres
Transmitter
Transmitting power	VHF: 1 / 5 W UHF: 1 / 4 W
Modulation	11 K0F3E at 12.5 kHz 14 K0F3E at 20 kHz 16 K0F3E at 25 kHz
4FSK digital modulation	12.5 kHz (data only): 7K60FXD 12.5 kHz (data and voice): 7K60FXW
Interfering signals and harmonics	-36 dBm (< 1GHz) -30 dBm (> 1GHz)
Modulation limiting	± 2.5 kHz at 12.5 kHz ± 4.0 kHz at 20 kHz ± 5.0 kHz at 25 kHz
Hum and noise	40 dB at 12.5 kHz 43 dB at 20 kHz 45 dB at 25 kHz
Adjacent channel selectivity	60 dB at 12.5 kHz 70 dB at 20 / 25 kHz
Audio sensitivity	+ 1 to – 3dB
Nominal audio distortion	£ 3 %
Digital vocoder type	AMBE+2TM
Receiver
Sensitivity (analogue)	0.3 pV (12 dB SINAD) 0.22 pV (typical) (12 dB SINAD) 0.4 pV (20 dB SINAD)
Sensitivity (digital)	0.3 pV / BER 5 %
Adjacent channel selectivity TIA-603 ETSI	60 dB at 12.5 kHz/75 dB at 20/25 kHz 60 dB at 12.5 kHz/70 dB at 20/25 kHz
Intermodulation TIA-603 ETSI	70 dB at 12.5/20/25 kHz 65 dB at 12.5/20/25 kHz
Spurious response rejection TIA-603 ETSI	70dB at 12.5/20/25kHz 70dB at 12.5/20/25kHz
Hum and noise	40 dB at 12.5 kHz 43 dB at 20 kHz 45 dB at 25 kHz
Nominal audio distortion	£3% (500 mW)
Nominal audio power output	0.5W
Conducted spurious emission	<- 57 dBm
All technical information was determined at the factory and in accordance with the corresponding standards. Subject to change on the basis of continuous development.

Aksesoris Hytera X1e

• Baterai – BL1401
• Desktop Charger – CH10L16
• Adaptor Charger – PS1044
• Antena
• Handstrap
• Buku Panduan

Aksesoris Offline Hytera X1e

• Baterai – BL1809
• Power Adapter Mobil  – CHV09
• Kabel Program, – PC45
• Speaker – SM26N1
• Bluetooth Earpiece – EHW02
