Avanti AVO-350DII UHF 330-340MHz

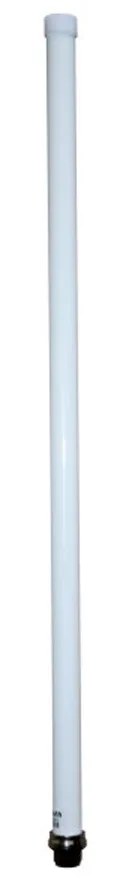

Avanti AVO-350DII UHF 330-340MHz Fiberglass Omni Antenna

Avanti AVO-350DII UHF 330-340MHz is a high frequency Fiberglass Vertical Omnidirectional Antenna. It can be used in UHF 330-340MHz repeater / radio base station communication system. Using the high intensity fiberglass omni seal, it features high gain, wide bandwidth, fine hurricane lamp, damp proof as well as good reliability.

All antenna are strictly tested by HP network analyzer before delivery.

Features

• Fiberglass
• Overlapping outer shells for added strength
• Strong waterproof joint couplings
• Stainless steel hardware
• Wide band performance
• Factory adjusted, no tuning required
• Highest gain
• High wind rating
• DC grounded

Avanti AVO-350DII UHF 330-340MHz Specifications

• Model: AVO-350DII
• Freq range: UHF 330-340MHz
• Bandwidth: 14MHz
• Gain: 12.1dBi
• Vertical Beamwidth: 14.5°
• VSWR: ≤1.5
• Input Impedance: 50Ω
• Polarizations is Vertical
• Max. Power: 100W
• Connector Type: S116 or N Female
• Antenna Length is 7.3m
• Weight is 15kg
• Rated wind Velocity: 60m/s
