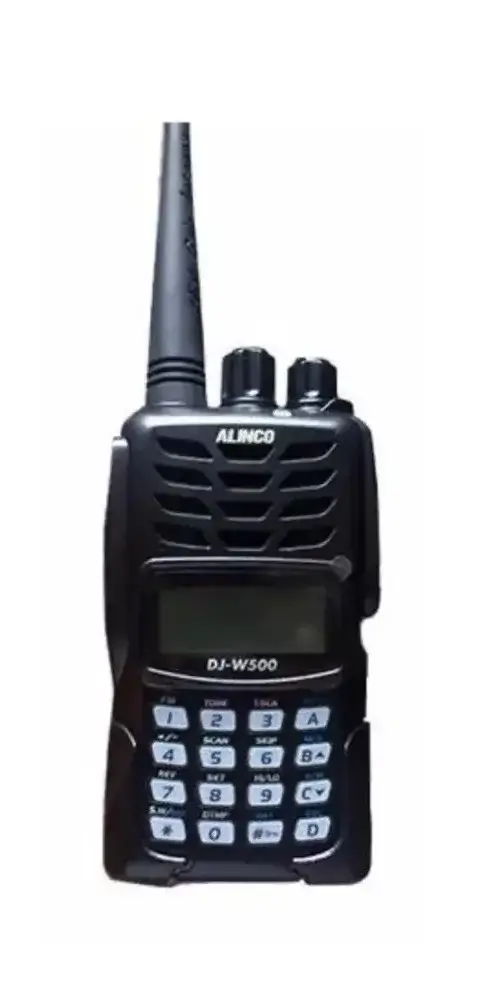

Alinco DJ-W500
DISCONTINUED
Alinco DJ-W500 merupakan HT murah Dual Band yang tahan debu dan tahan percikan air. Dirancang dengan body polycarbonate yang kuat untuk menahan tantangan tersebut dan sudah dilengkapi dengan sertifikasi IP54 (Dust & splash proof compatible). DJ-W500 memiliki spesifikasi kelas profesional, mampu beroperasi pada kisaran frekuensi 136-174MHz dan 400-480 MHz.
Features of Alinco DJ-W500
- Large, dot-matrix, 3 color-selectable (orange,white,cherry-blossom) display and keypad
- Semi-Duplex dualband, V/V-U/U and FM broadcast receiver
- 200 memory channels, any mix of VHF/UHF
- Internal VOX
- Alphanumeric channel labels
- Direct frequency input from keypad
- Landmobile-grade signaling features
- Variety of scanning modes
- IP54 dust/splash proof, MILSPEC (STD810) vibration/shock compliant
- Wide and narrow FM TX/RX
- 12Vdc input using an optional cigar-socket adapter.
- High power Li-Ion battery pack, stand charger and beltclip included
- PC cloning capability (optional ERW-4/7 required, free utility software)
STANDARD ACCESSORIES
EA-228 Whip antenna
EBP-87 Li-ion 7.4V 1500mAh battery pack
SPECIFICATIONS Alinco DJ-W500
General
Frequency range: [T: RX] 136 – 174MHz, 400 – 480MHz
Modulation: F3E (FM)
Frequency step: 2.5, 5, 6.25, 8.33, 10, 12.5, 20, 25, 30 and 50KHz
Memory channel: 200 memory channels in total
Antenna impedance: 50ohm unbalanced
Frequency stability: +/- 2.5ppm
Supply voltage: DC 7.4V (Battery)
Dimensions: 59.0W X 98.0HX 5.0D mm
Weight: approx.227g or 8.01oz inclusive of battery pack and antenna
Transmitter
Power output : 5 / 2.5 / 1W
Modulation : Variable reactance FM
Spurious emission: -60dB or less
Max. deviation : FM : +/- 5KHz NFM: +/- 2.5KHz
Receiver
System : Direct-conversion
Sensitivity : Wide -12dBu / Narrow -9dBu
Intermediate frequency : 1st IF 38.85MHz 2nd IF 450kHz
Selectivity : -6dB : Wide 12kHz /Narrow 10kHz or more
-60dB :Wide 30kHz / Narrow 24kHz or less
AF output : 1W (10% distortion)
Specifications subject to change without notice or obligation. Specifications apply to Amateur Radio bands only. Permits required for MARS use. Product intended for use by properly licensed operators.
