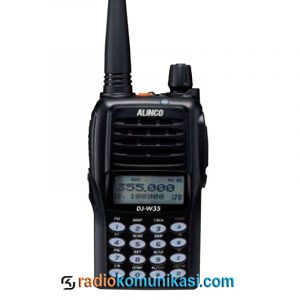

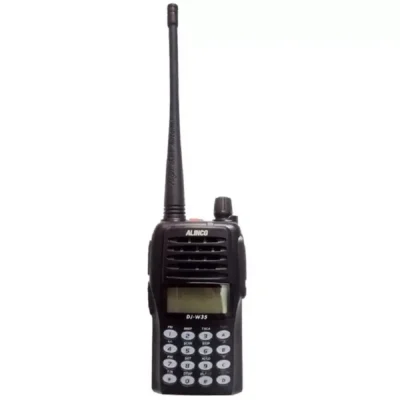

Alinco DJ-W35 UHF

Jual ht harga murah Alinco DJ-W35 power 4 Watt menggunakan battery Lithium / Li-Ion kapasitas 1700mAh dan bekerja pada frekwensi 350-400MHz ukuran kecil 59x98x35 mm berat sangat ringan 227 gram

Specifications Alinco DJ-W35

• Frequency coverage : (TX/RX) 350.000-399.995MHz (RX only) 76-108MHz
• Mode : F3E(16K0F3E / 11K0F3E / RX only WFM)
• Programmable channels : 128 channels
• Frequency stability : ±2.5ppm
• Power supply requirement : 7.4V DC±20% (negative ground)
• Current drain (Approx.) : 1400mA TX / 300mA receive at Max audio output / 70 mA squelched
• Usable temperature range : -20~ +55°C(-4~131°F)
• Dimensions (Projections not included/approx.) : 59×98×35 mm
• Weight : approx.227g or 8.01oz inclusive of battery pack and antenna

Transmitter (ETSI EN300 086 compliant)

• Output power : Approx.4 / 2 / 0.5W
• Modulation system : Variable reactance FM
• Spurious emissions : Less than -36dBm
• Max. frequency deviation : ±5kHz / ±2.5kHz
• Receiver :(ETSI EN300 086 compliant)

Receive system : Double conversion superheterodyne

• Intermediate frequencies : 26.45MHZ
• Sensitivity(12dB SINAD Wide/Narrow) : -12dBµ or better (0.25µV/0.35µV) or better
• Selectivity : -6dB : -6dB : Wide 12kHz /Narrow 10kHz or more -60dB :Wide 30kHz / Narrow 24kHz or less
• Audio output power : 1000mW(10% distortion)
