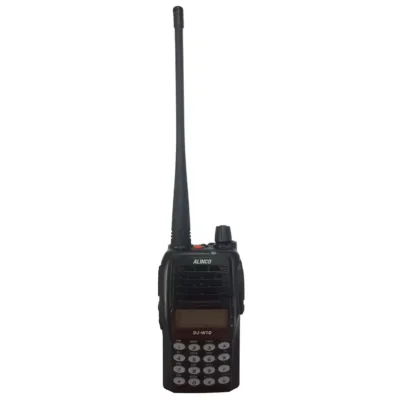

Alinco DJ-W10
Alinco DJ-W10 Handy Talky HT dengan frekwensi kerja di VHF 136 – 174 MHz dilengkapi dengan penerima radio FM 76-108 MHz Dan beragam spesifikasi canggih untuk pekerjaan Anda.
*MIL-STD-810G shock/vibration compliant
*IP54 Dust & Splash-proof compatible.
*MIL-STD-810G shock/vibration compliant
*IP54 Dust & Splash-proof compatible.
FITUR-FITUR
- 128 channels to program operating parameters via PC utility software
- Channel, Name tag and VFO (Frequency) display modes selectable
- Comes with a rechargeable Li-Ion pack, desktop quick-charger and high-performance whip antenna
- Dimension 59.0W x 98.0H x 35.0D mm or 2.32W x 3.86H x 1.38D inches (w/o projections, approx.),
- Weighs approx.227g or 8.01oz inclusive of battery pack and antenna
- 3 types of Scan functions (VFO/Memory channels/Priority), 50 CTCSS, 116 DCS and 4 Tone-burst tones
- Backlit, Dot Matrix LCD screen with alphanumeric name tag
- Microphone and speaker ports
- FM radio receiver
- Internal VOX
- Voiceprompt in English
- Remote-Kill/Stun/Waken
- Analog scrambling
- Voice Compander
- Narrow FM
- Repeater-reverse
- Auto-Power-OFF
- Busy-ChannelLockout
- Time-Out-Timer
Spesifikasi Alinco DJ-W10
| Specification | Value |
|---|---|
| Frequency | [TX/RX] 136.000 – 173.995 MHz, [RX Only] 76-108 MHz |
| Mode | F3E (16K0F3E/11K0F3E / RX Only WFM) |
| Programmable Channels | 128 Channels |
| Frequency Stability | 2.5ppm |
| Power Supply Requirement | 7.4V DC |
| Dimensions | 59W x 98H x 35D mm |
| Transmitter: | |
| Output Power | Approx. 5/2/0.5W |
| Modulation System | Variable Reactance FM |
| Spurious Emissions | Less Than -36 dB |
| Max Frequency Deviation | 5kHz / 2.5kHz |
| Receiver: | |
| Receive System | Double Conversion Superheterodyne |
| Intermediate Frequencies | 38.85MHz |
| Sensitivity (12dB SINAD wide/Narrow) | – |
| Selectivity | -6dB: Wide12kHz / Narrow 10kHz |
| Audio Output Power | 1000mW (8Ohm / Max) |
| Weight | 2,1 kg |
|---|
