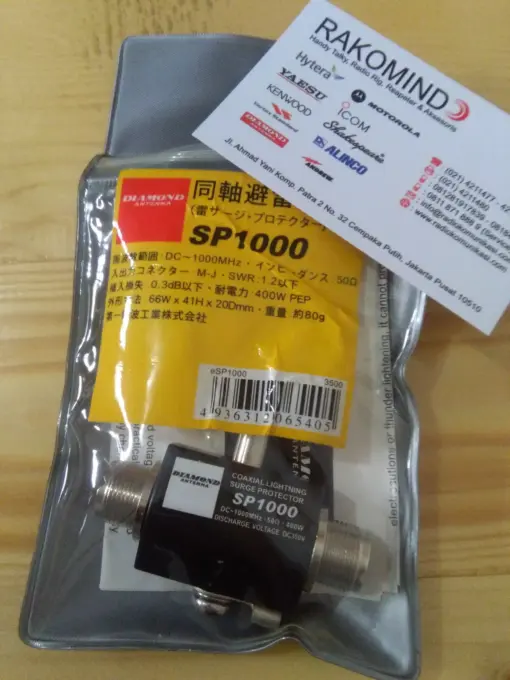

Diamond SP1000PW

Diamond Antenna SP-Series Lightning Arresters SP1000PW

During the lightning season every spring and summer, these Diamond Antenna SP-Series Lightning Arresters save many pieces of ham equipment around the world! Lightning is every radio operator’s nemesis, professional or amateur. To protect your precious radio equipment, you need quality lightning protection.

Available with several coaxial connection schemes and with multiple RF power ratings, these arresters are even offered in waterproof models! They’re designed to pass DC current, so you can install these arresters in-line with external devices requiring coaxial DC power-feed.

Then, when the thunder-boomers approach, you can sit back, relax, and let these Diamond Antenna SP-Series Lightning Arresters take the hit for you!

Diamond SP1000PW Specifications

Frequency Range:    DC – 1,000 MHz
SWR:    less than 1.2
Insertion Loss:    less than 0.3 dB
Max Power Rating:    400w PEP
Connector:    UHF male – UHF female
Impulse Wave Discharge Voltage:    800v
Impulse Wave Discharge Capacity:    6000A
Impulse Wave Retention Discharge Capacity:    DC350v ± 20%
Insulating Resistance DC100v:    Over 10,000M ohms
Weight:     130g
Dimensions:    78Wx55Hx26D mm
Impedance:    50 ohms
