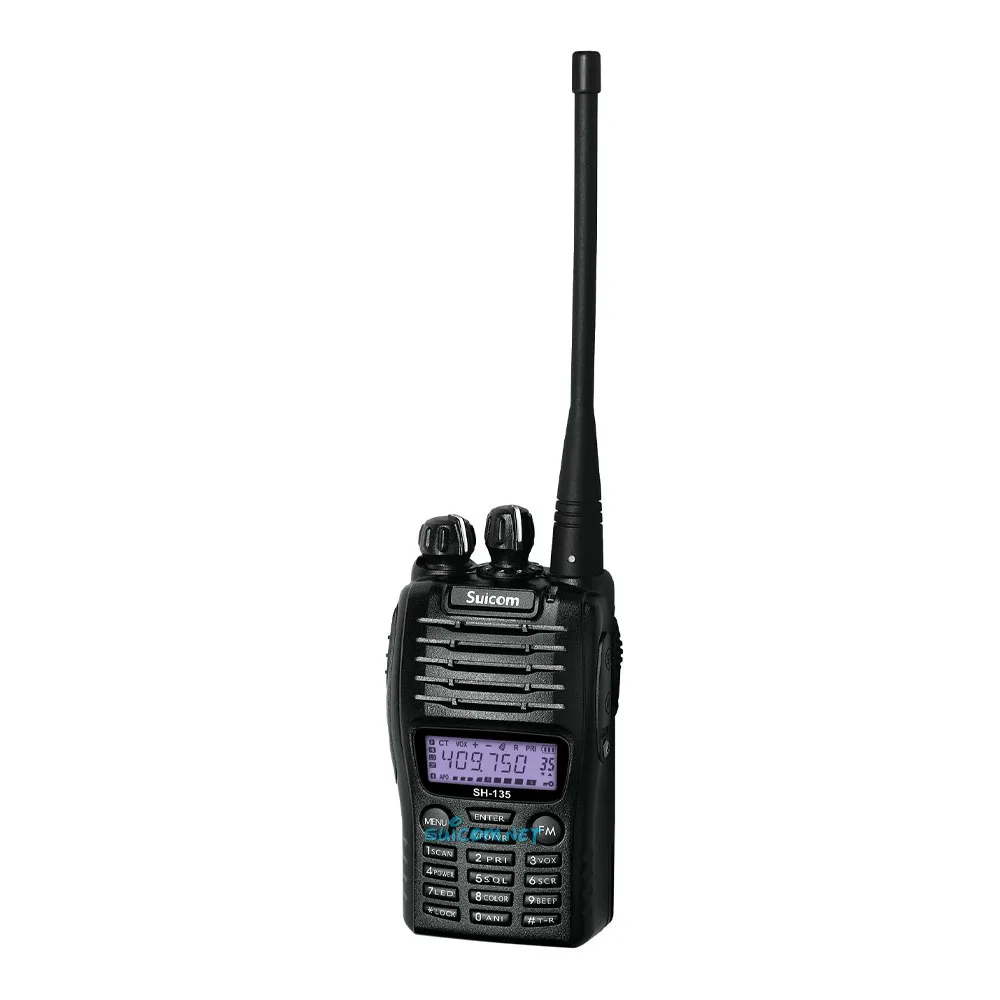

Suicom SH 135

• VHF, Model SH-135 : Frekuensi 135 – 174 MHz (5W Output Power)
• UHF, Model SH-430 : Frekuensi 400 – 470 MHz (4W Output Power)

Features

• VHF 5W / UHF 4W Output Power
• 128 Groups of memory channels
• 25KHz (WIDE) / 12.5KHz (NARROW) Channel spacing compatible
• Scan function
• Automatic Numbering Identification (ANI) code
• Built-in Voice Operate Transmit (VOX) function
• All channels scan and priority channel scan
• Scrambler
• Three colour LCD backlight adjustable (Blue, Orange, Purple)
• Emergency Alarm
• Programmable by PC with Software
• 50 CTCSS and 104 DCS Normal/Inverted selectable
• Time-out Timer (TOT)
• Busy channel lockout
• 2 Tone/5 Tone Code

Specifications

Frequency Range
• Model SH-135 (VHF): 135-174MHz
• Model SH-430 (UHF): 400-470MHz

General
• Working Temperature: -20°C ~ +50°C
• Operating Voltage: DC 7.2V
• Operating Mode: Simplex or Semi-Duplex
• Antenna Impedance: 50Ω
• Weight: 220g (including battery)
• Unit Dimensions (WxDxH): 55mmx 32mm x 100mm (not included antenna)

Transmitter (TX)
• Frequency Stability: ±2.5ppm
• Output Power: ≤5W
• Max Freq Deviation: ≤5KHz
• Audio Distortion: ≤3%
• Modulation Character: +3dB ~ -3dB
• Adjacent Channel Power: ≥65dB
• Spurious Radiation: ≤7.5μW
• Occupied Bandwith: ≤16KHz

Receiver (RX)
• RF Sensitivity: <0.2μV
• Audio Distortion: ≤3%
• Audio Response: +2dB ~ -10dB
• Adjacent Channel Selectivity: ≥60dB
• Intermodulation Rejection: ≥60dB
• Spurious Response: ≥60dB
• Blocking: ≥85dB

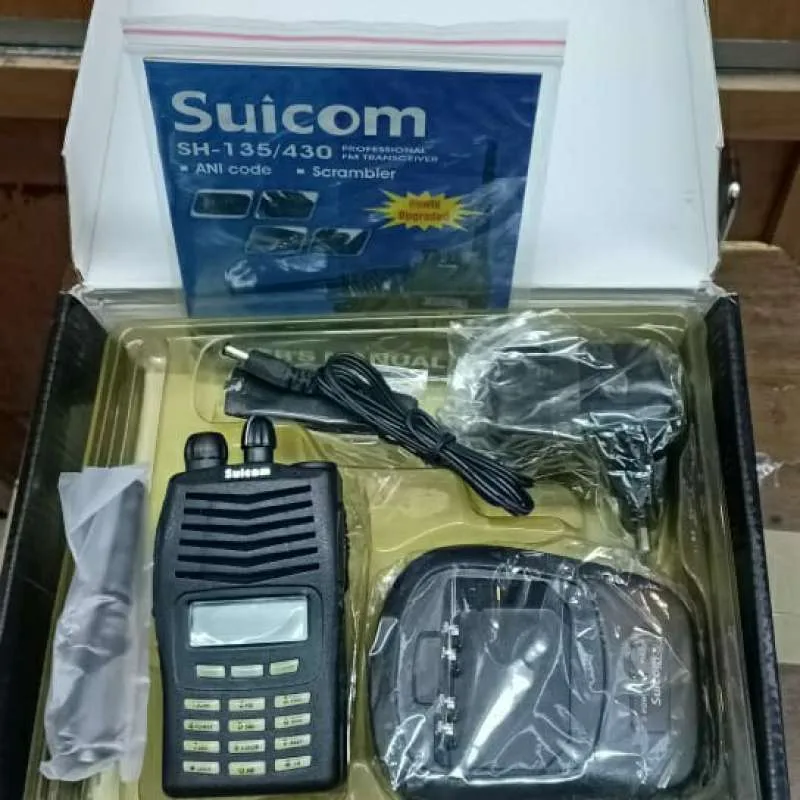

Package Contents

• Main Unit Radio HT (1 unit)
• Antenna
• Battery Li-ion 7.4V/1200mAH
• Rapid Desktop Charger. Input: DC12V – Output: DC8.4V 450mA + AC Adaptor Input: 220V – Output: 12.5VDC
• Belt Clip
• User’s Manual
