Kenwood NX-3820HG

Kenwood NX-3820HG – Mobile Radio Base Digital UHF

Kenwood NX-3820HG radio mobil UHF 400-470 MHz dengan Power Output 45 W. Radio base digital DMR yang mendukung Conventional & LTR Trunking, DMR Tier II Conventional, dan DMR Tier III Trunking. Radio digital dengan Built in GPS dan Bluetooth, kapasitas 512 channel dan 128 zona.

Fitur-Fitur Kenwood NX-3820HG

Radio Rig UHF 400-470 MHz

Jangkauan Radio Rig UHF 400-470 MHz yang lebih luas dan stabil.

Radio Digital NXDN dan DMR

Radio digital dengan fitur canggih, termasuk DMR Tier III Trunking radio yang lebih efisien.

Mixed Digital & Analog Radio Rig

Memungkinkan transisi yang lancar antara komunikasi digital dan analog sesuai kebutuhan.

512 Channel dan 128 Zona

Memudahkan pengorganisasian frekuensi yang fleksibel dan terstruktur.

Power Output 45 W

Dengan power output 45 W memastikan kekuatan sinyal yang kuat.

IP Rating IP54/IP55

Radio base Kenwood NX-3820HG waterproof. Dengan IP Rating IP54 untuk RF Deck dan IP55 untuk Remote Control Head.

Built-in GPS

Pelacakan lokasi radio rig yang akurat untuk mendukung kebutuhan operasional di lapangan.

Bluetooth Bawan

Memudahkan konektivitas nirkabel radio rig dengan perangkat lain.

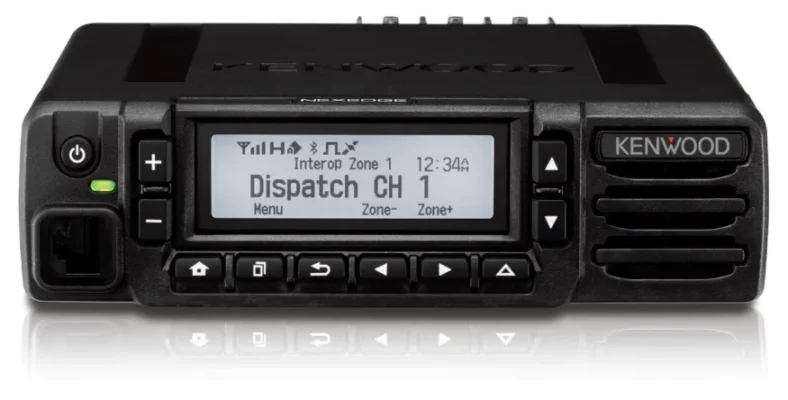

Layar LCD Kenwood NX-3820HG Full Dot dengan Backlit Putih

Layar LCD Full Dots Matrix (256(W) x 82(H) dots, monochrome) dengan 4-Line Basic Frame dan 4-Line Text Message Frame.

Mode Digital DMR

• DMR Tier III Trunking
• DMR Tier II Conventional
• Auto Slot Select DMR
• Site Roaming
• 12.5 kHz Two slot TDMA channels
• Call Interruption
• Dual-slot Direct Mode
• Enhanced Encryption
• Energy Efficient

Mode Digital NXDN

• NXDN Type C & Gen2 Trunked
• NXDN Conventional
• 6.25 & 12.5 kHz Channels
• All Group Call
• Over the Air Alias (OAA)
• Over the Air Programming (OTAP)

Mode Radio Analog

• Conventional & LTR Trunking
• FleetSync/II: PTT ID ANI / Caller ID Display, Selective Group Call, Emergency Status / Text Messages
• MDC-1200: PTT ID ANI / Caller ID Display, Emergency, Radio Check / Inhibit
• QT / DQT, DTMF, 5-tone
• Built-in Voice Inversion Scrambler

Fitur Lainnya Kenwood NX-3820HG

• Audio Output Power 4 Watts
• Paging Call
• Emergency Call
• Status / Text Message
• Remote Stun / Kill / Check

Spesifikasi Kenwood NX-3820HG

GENERAL
Frequency Range	UHF 400-470 MHz
Max. Channels per Radio	Up to 1000 channels with option
Number of Channels	512
Number of Zones	128
Channel Spacing:
Analog	12.5 / 15 / 25 * / 30 * kHz
Digital	6.25 / 12.5 kHz
Power Supply	13.6 V DC +-15 %
Current Drain:
Standby	0.45 A
RX	2.3 A
TX	12 A
Operating Temperature	-22°F to +140°F (-30°C to +60°C)
Frequency Stability	+- 1.0 ppm (-22°F to +140°F)
Antenna Impedance	50 Ohms
Dimensions (W x H x D)	6.30 x 1.69 x 6.30 in (160 x  43 x 160 mm)
Radio with Control Head
* Projections not included
Weight (net) *2	2.65lbs (1.2 kg)
FCC ID:
Type 1	K44479300
Type 2	K44479301
IC Certification:
Type 1	–
Type 2	282F-479301
RECEIVER
Sensitivity:
NXDN 6.25 kHz Digital, 3 % BER	0.20 μV
NXDN 12.5 kHz Digital, 3 % BER	0.25 μV
DMR 12.5 kHz Digital, 5 % BER	0.30 μV
DMR 12.5 kHz Digital, 1 % BER	0.45 μV
Analog, 12 dB SINAD	0.25 μV
Selectivity:
Analog @ 12.5 kHz	68 dB
Analog @ 25 kHz	78 dB
Intermodulation	70 dB
Spurious Rejection	80 dB
Audio Distortion	2%
Audio Output	4 W/4 Ohms
TRANSMITTER
RF Power Output (H / M / L)	45 W/30 W/5 W
Spurious Emission	-75 dB
FM Hum & Noise	Analog @ 25 kHz
	Analog @ 12.5 kHz
Audio Distortion	2%
Digital Protocol	ETSI TS 102 361-1, -2, -3
Emission Designator	16K0F3E *1, 11K0F3E, 8K30F1E, 8K30F1D, 8K30F7W, 7K60FXD, 7K60FXE, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D
APPLICABLE MIL-STD	MIL-STD-810 C / D / E / F / G
IP Rating	IP54
