PRODUCT DESCRIPTION
ENTRY LEVEL VHF/DSC MARINE TRANSCEIVER

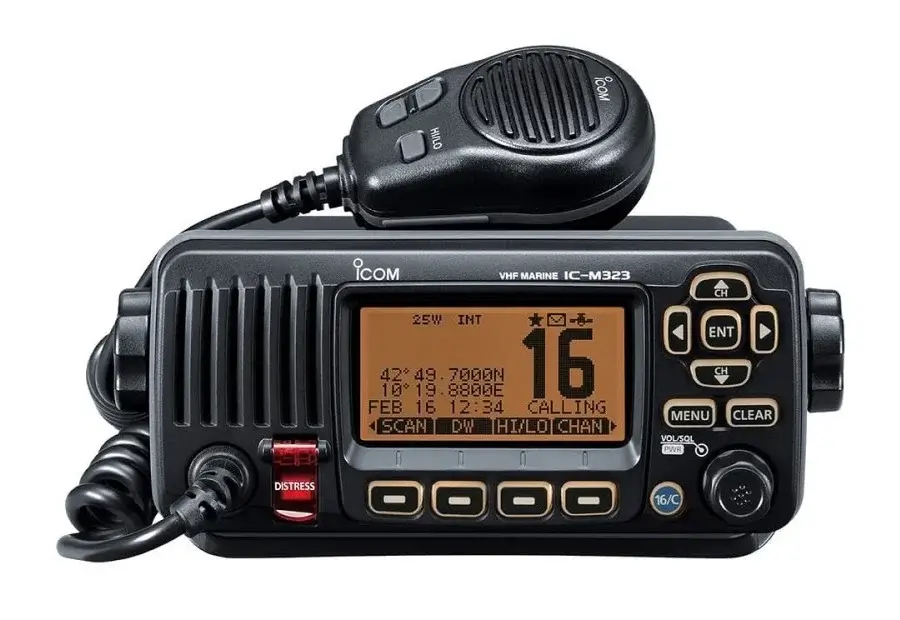

Icom’s IC-M323 VHF/DSC has the same common user interface that has been adopted on the latest Icom radios including intuitive “soft-keys” permitting faster access to radio functions. As a result of simplifying the technical features offered, Icom has managed to produce a set that offers really good value!
New, easy to use Icom Marine User Interface
The new marine family user interface provides simple operation for the boat owner. A rotary selector, directional keypad provides intuitive operation.
Large Full Dot-Matrix Display
The large, high definition dot matrix display (38×73mm) allows all information to be clearly viewed.
Meets the Latest Class D DSC Specifications
The IC-M323 meets the latest Class D regulation (ITU-R M493-13 and EN 300 338-3). The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report*, polling request* and DSC test calls.
*Available upon request.
NMEA 0183 Input/ Output for Common GPS/NAV Interface
When connected to an external GPS receiver, current position and time are shown on the IC-M323’s display. When receiving position information from another vessel, the IC-M323 can transfer it to a navigational device via NMEA 0183 connectivity.
AIS Target Call
When connected to an optional MA-500TR Class B AIS transponder, the AIS target call function allows you to set up an individual DSC call from the MA-500TR without having to manually input an MMSI number.
MarineCommander Compatible
When connected to the MarineCommander, the received DSC message pops up on the multi-function display.
IPX7 Waterproof Protection (1.0m depth for 30 minutes)
The IC-M323 withstands submersion in up to 1.0m depth of water for 30 minutes.
Favourite Channel Function
This function allows for quicker channel selection. Set the “Tag” channel to the channels used most often. When pushing the up/down buttons on the hand microphone, only the tagged channels are selected, while untagged channels are skipped.
Other Features
• AquaQuake draining function
• Dual/tri-watch function for monitoring Ch.16 and/or call channel
• Black and super white versions available.
• 2W audio output power
• LCD and keypad backlighting
• This product comes complete with a simple plastic flush mount kit. Stainless steel flush mount kits are available as an option.
SPECIFICATION
- New, easy to useIcom Marine User Interface
- Large Full Dot-Matrix Display
- Meets the Latest Class D DSC Specifications
- NMEA 0183 Input/ Output for Common GPS/NAV interface
- IPX7 Waterproof Protection (1m depth for 30 minutes)
- AquaQuake draining function
- Available in Black or Super White
IC-M323G, IC-M323 |
||
---|---|---|
Frequency range | Tx | 156.000–161.450MHz |
Rx | 156.000–163.425MHz | |
CH70 | 156.525MHz | |
Power supply requirement | 13.8V DC nominal (10.8–15.6V DC) |
|
Dimensions (W×H×D) (Projections not included) |
180×82×119.9 mm | |
Weight (approx.) | 1.2kg | |
Current drain | Tx 25W output | 5.5A |
Rx Max. audio | 1.5A | |
Sensitivity | Main | −5dBμ emf typ. (20dB SINAD) |
DSC | −4dBμ emf typ. (1% BER) | |
Intermodulation | Main | More than 68dB |
DSC | More than 68dBμ emf (1% BER) | |
Audio output power (at 10% distortion, 4Ω load) |
More than 2W | |
RF output power | 25W, 1W |
Applicable IP Rating
Ingress Protection Standards | |
---|---|
Water |
IPX7 (Waterproof protection)
|
OPTIONAL
HAND MICROPHONE
HM-200B/SW |
FLUSH MOUNT KIT
MB-132 |
CLASS B AIS TRANSPONDER
MA-500TR |
