Commscope CNT-400
Rp65.000

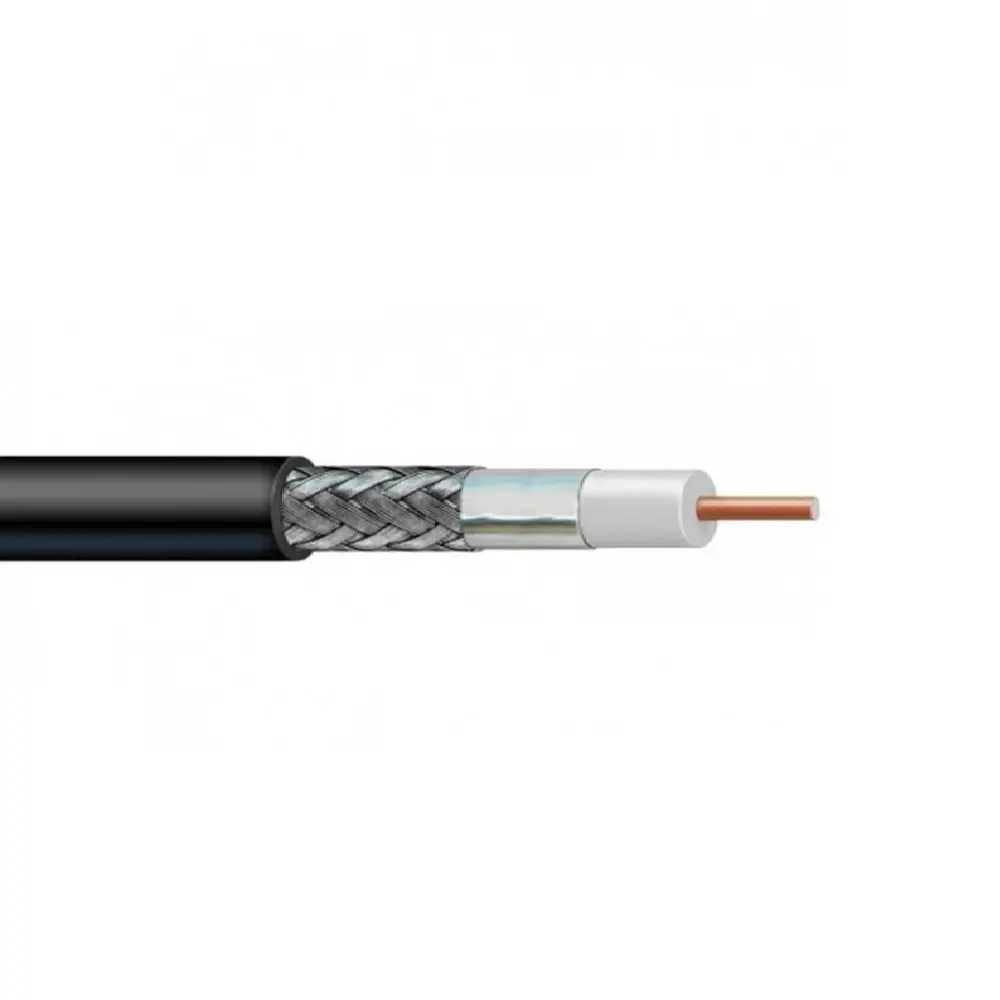

Kabel Coaxial RG8 Commscope CNT-400 dengan impedansi 50 ohm, dilapisi dengan jaket pelindung berwarna hitam dari bahan Polyethylene (PE).
Commscope CNT-400

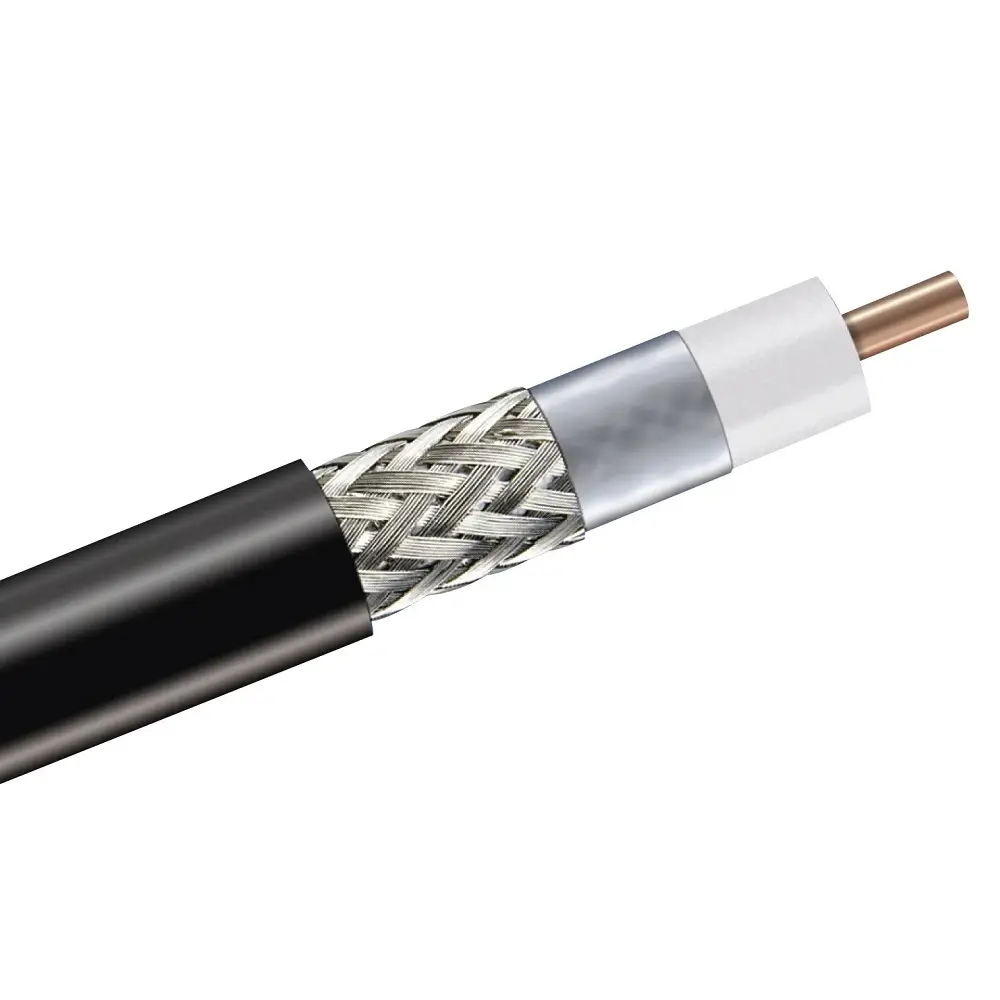

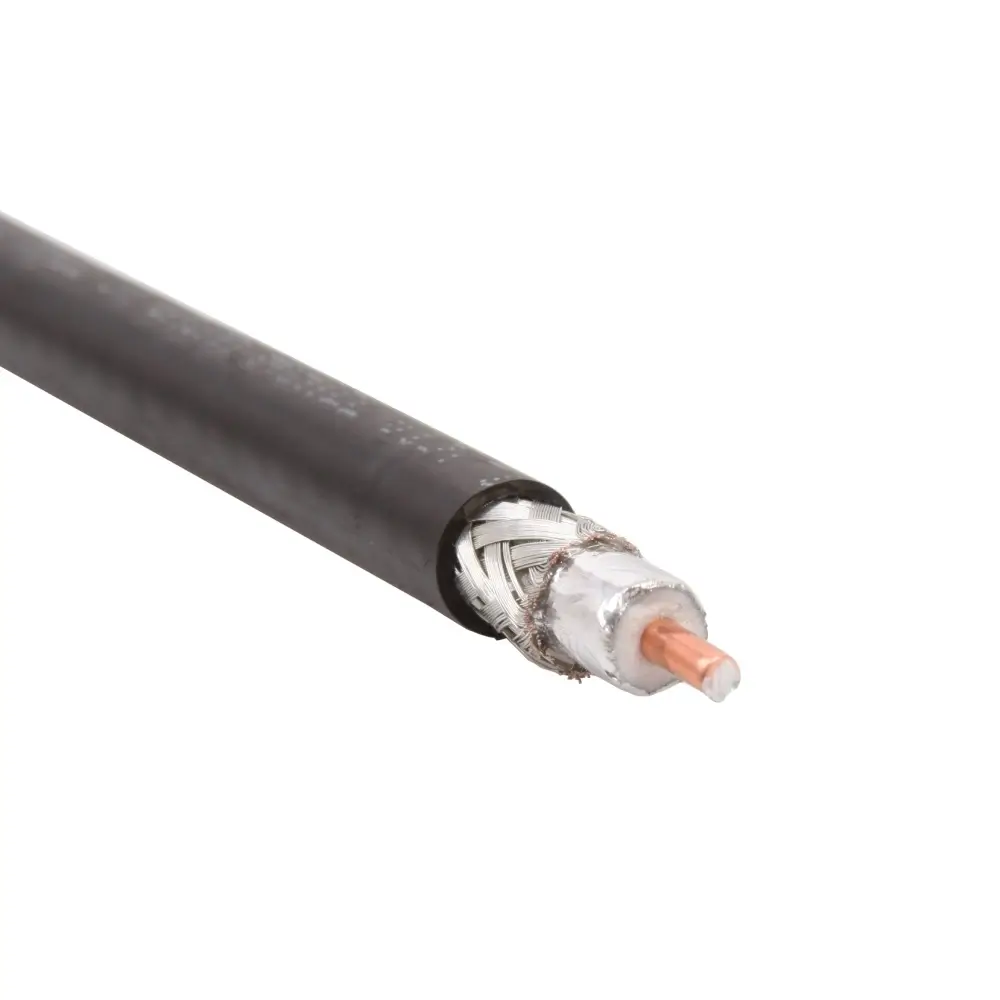

Kabel koaksial Commscope CNT-400 adalah kabel fleksibel dengan inti (konduktor) berisolasi yang dilindungi oleh lapisan tembaga (braided shield). Kabel Andrew ini memiliki impedansi 50 ohm dan dilapisi dengan jaket pelindung berwarna hitam berbahan Polyethylene (PE) yang tahan cuaca. Desain kabel ini juga lentur sehingga mempemudah instalasi terutama untuk kebutuhan telekomunikasi frekuensi radio (RF).
Catatan:
Untuk pembelian hanya per 100 meter dan kelipatan.
Spesifikasi
| Product Classification | |
| Product Type | Braided coaxial cable |
| Product Brand | CNT® |
| Product Series | CNT-400 |
| General Specifications | |
| Braid Coverage | 90% |
| Cable Type | CNT-400 |
| Jacket Color | Black |
| Dimensions | |
| Diameter Over Dielectric | 7.24 mm | 0.285 in |
| Diameter Over Jacket | 10.29 mm | 0.405 in |
| Diameter Over Tape | 7.391 mm | 0.291 in |
| Inner Conductor OD | 2.74 mm | 0.108 in |
| Outer Conductor OD | 8.08 mm | 0.318 in |
| Nominal Size | 0.400 in |
| Electrical Specifications | |
| Cable Impedance | 50 ohm |
| Capacitance | 78 pF/m | 23.774 pF/ft |
| dc Resistance, Inner Conductor | 4.69 ohms/km | 1.43 ohms/kft |
| dc Resistance, Outer Conductor | 5.61 ohms/km | 1.71 ohms/kft |
| dc Test Voltage | 2500 V |
| Jacket Spark Test Voltage (rms) | 4000 V |
| Maximum Frequency | 16.2 GHz |
| Operating Frequency Band | 30 – 6000 MHz |
| Peak Power | 16 kW |
| Shielding Effectiveness | 90 dB |
| Velocity | 85% |
| Material Specifications | |
| Braid Material | Tinned copper |
| Dielectric Material | Foam PE |
| Jacket Material | Non-halogenated PE |
| Inner Conductor Material | Copper-clad aluminum wire |
| Shield Tape Material | Aluminum |
| Mechanical Specifications | |
| Minimum Bend Radius, single Bend | 25.4 mm | 1 in |
| Tensile Strength | 73 kg | 160.937 lb |
| Bending Moment | 0.7 N-m | 6.196 in lb |
| Flat Plate Crush Strength | 0.7 kg/mm | 39.198 lb/in |
| Environmental Specifications | |
| Installation temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature | -70°C to +85°C (-94°F to +185°F) |
| Packaging and Weights | |
| Cable weight | 0.1 kg/m | 0.067 lb/ft |
