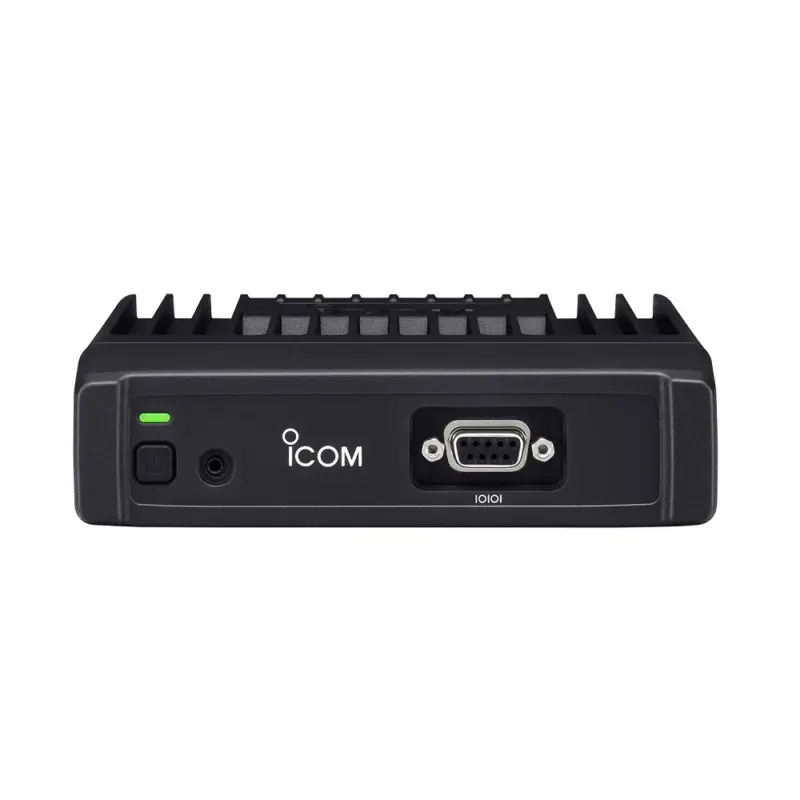

Icom IC-F6122DD UHF Data Transceivers
DISCONTINUED
Icom IC-F6122DD UHF Data Transceiver Modem data untuk field monitoring dan remote system management. Untuk aplikasi point to point, point to multi point telemetry, SCADA.
Penerapan:
Kendaraan perkebunan.
Meteran Air/Listrik.
Kendaraan Bandara.
Aplikasi Gate Control.
Perminyakan (pipa atau pengeboran).
Lalu lintas jalan tol.
Monitoring cuaca/lingkungan.
Monitoring lalu lintas.
Icom IC-F6122DD UHF Data Transceivers
Features
- 9600bps (at 12.5kHz) and 4800bps (at 6.25kHz) data mode programmable
- RS-232 and RS-232 + Ethernet versions
- Fast data transfer using 4-level FSK modulation suitable for real-time data monitoring
- 25W, 10W and 2.5W three-step RF output power
- BNC antenna connector
- Individual, group and all calls
- Data encryption function (500 codes)
- Memory channel selection via PC control command
- Optional CS-F5120DD, Programming Software and OPC-2218LU, USB type Programming Cable
Specifications
General |
|
|
Frequency coverage |
400–470MHz |
|
Number of channels |
128 channels |
|
Type of emission |
8K30F1D, 4K00F1D (4FSK) |
|
Channel spacing |
12.5/6.25kHz |
|
Over-the-air data rate |
9600/4800bps |
|
Power supply requirement |
13.6V DC |
|
Current drain (approx.) |
6A |
|
Antenna impedance |
50Ω (BNC) |
|
Operating temperature range |
–30°C to |
Transmitter |
|
|
Output power (at 13.6V DC) |
25W, 10W, 2.5W (Hi, L2, L1) |
|
Spurious emissions |
70dB min. |
|
FSK error |
2.5% typ. (DN/DVN) |
|
Frequency stability |
±1.0ppm |
Receiver |
|
|
Sensitivity (at 1% BER) |
–4dBμV/–5dBμV emf typ. (DN/DVN) |
|
Adjacent channel selectivity |
64dB/60dB typ. (DN/DVN) |
|
Spurious response |
76dB/70dB typ. (DN/DVN) |
|
Intermodulation |
68dB/66dB typ. (DN/DVN) |
Applicable U.S. Military Specifications
Meets equivalent MIL-STD-810-C, -D, -E , -F and -G.
Icom makes rugged products that meet MIL-STD requirements and strict environmental standards as follows.
|
Standard |
MIL 810 G |
|
|
Method |
Proc |
|
|
Low Pressure |
500.5 |
I, II |
|
High Temp. |
501.5 |
I, II |
|
Low Temp. |
502.5 |
I, II |
|
Temp. Shock |
503.5 |
I-C |
|
Solar Radiation |
505.5 |
I |
|
Rain Blowing/Drip |
506.5 |
I, III |
|
Vibration |
514.6 |
I |
|
Shock |
516.6 |
I, IV |
| Weight | 2 kg |
|---|
