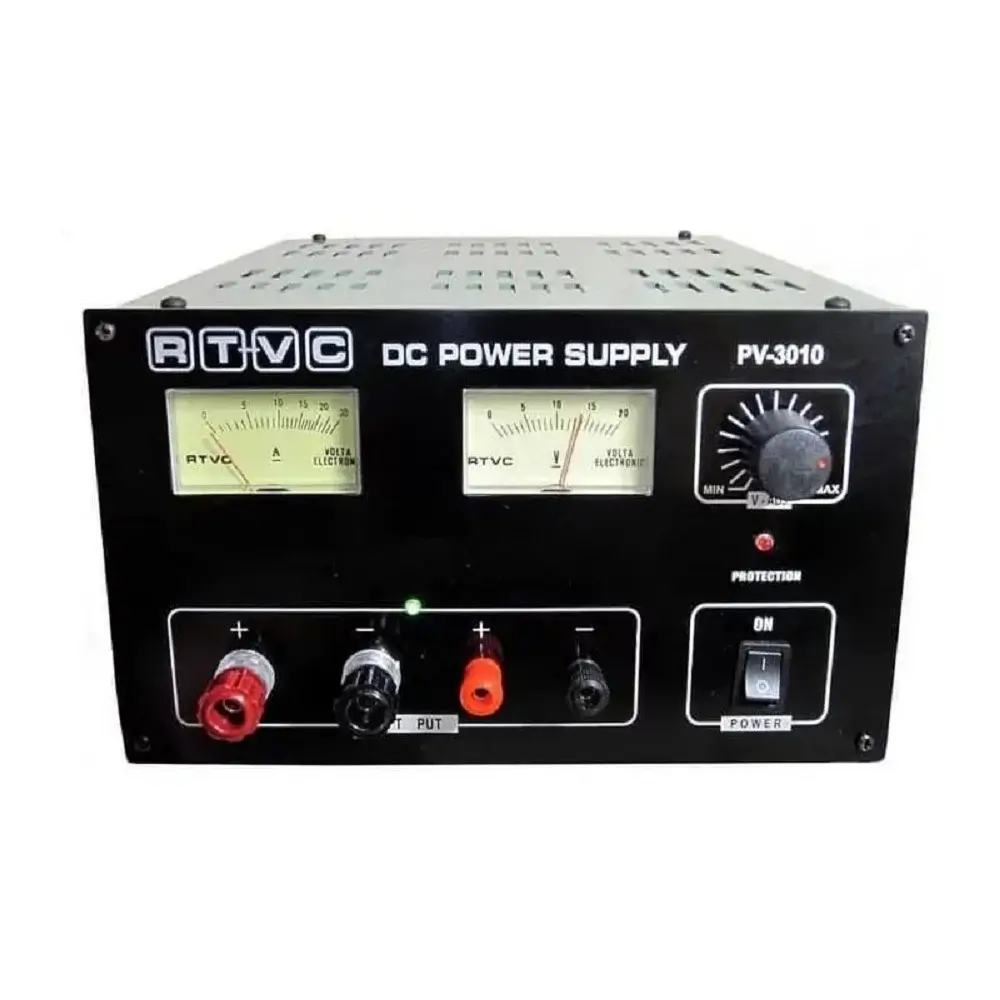

RTVC PV3010

SPESIFIKASI

AC INPUT VOLTAGE : 110 VAC ( 50 / 60 Hz )
: 220 VAC ( 50 / 60 Hz )
DC OUTPUT VOLTAGE : 13.8 VDC center variable
5 – 15 VDC adjustable

DC OUTPUT CURRENT : Less than 1 % – rated output

RIPPLE VOLTAGE : Less than 10 Mv – rated output

AC POWER CONSUMPTION : Max.450 Watt

AC INPUT POWER FUSE : 8 A – 110 VAC
5 A – 220 VAC

DIMENSIONS : W 175 X H 160 X D 255 mm

WEIGHT : 10 kg. ( Approx)

+ PROTECTIO SYSTEM
DC OVER CURRENT WARNING LED Over 30A – DC WARNING LED INDICATOR

+ PROTECTION CONTROLLER
DC SHORT CIRCUIT WARNING LED PROTECTION CONTROLLER

+ PROTECTION SYSTEMS
Led indicator lights-on and the main DC output should be automatically shut-off ( 0 Volt)
