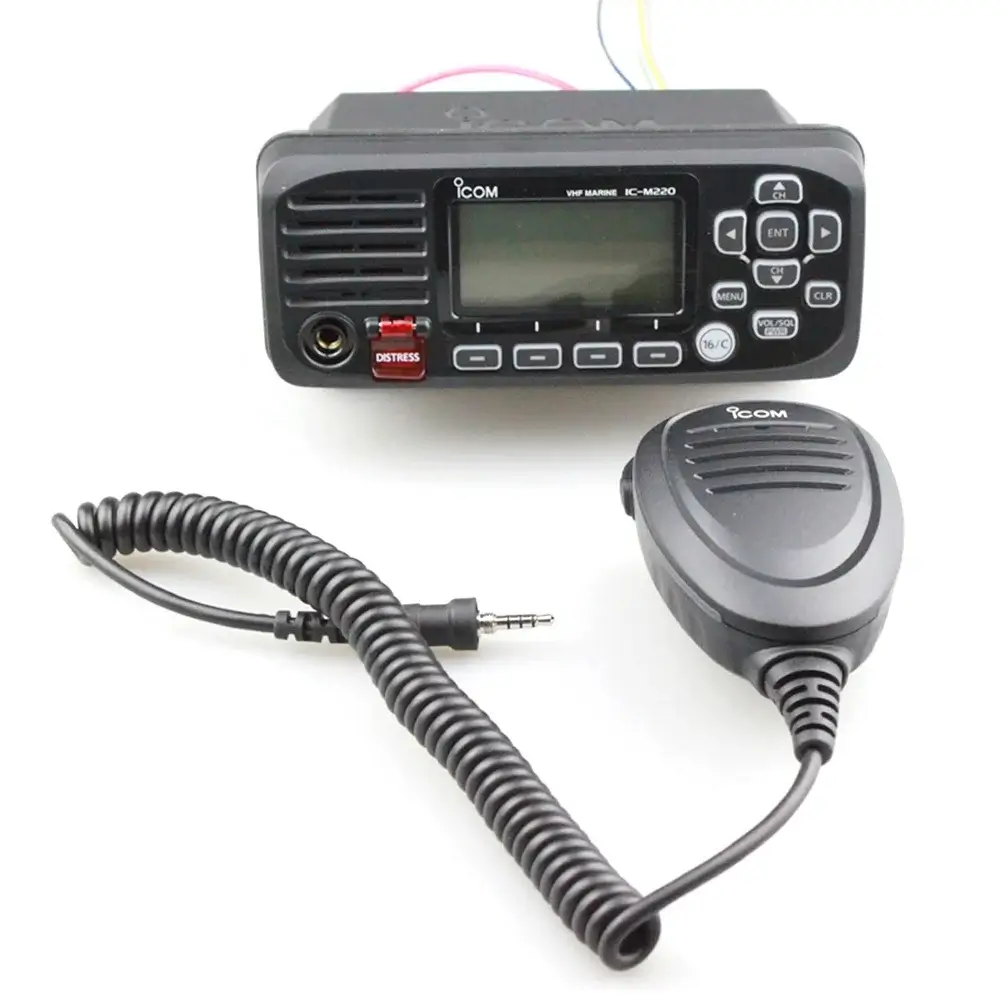

HT ICOM IC-M220 VHF Marine Transceiver
- Compact Body
- Powerful Front Mount Speaker
- Built-in Class D DSC with a CH70
- Intuitive Operation
- Easy-to-Read Full Dot-Matrix Display
- HM-237B Detachable
- IPX7 Submersible Construction
- (1 m depth of water for 30 minutes)
- AquaQuake™ Prevents Audio Degradation
- Made in Japan Quality and Reliability
HT ICOM IC-M220 VHF Marine Transceiver
- Compact Body (W × H × D; 156.5 × 66.5 × 110.1 mm; 6.2 × 2.6 × 4.3 in): Easy Installation in Limited Space
- Powerful Front Mount Speaker: Delivers Loud and Clear Audio
- Built-in Class D DSC with a CH70; Dedicated Receiver
- Intuitive Operation with Icom’s Marine User Interface
- Easy-to-Read Full Dot-Matrix Display
- HM-237B Detachable: Hand Microphone Supplied
- IPX7 Submersible Construction: (1 m depth of water for 30 minutes)
- AquaQuake™ Prevents Audio Degradation from a Water-Logged Speaker
- Made in Japan Quality and Reliability
Other Features
- Common NMEA interface for external GPS/NAV connection
- MA-500TR Class B AIS transponder compatible
- Tag scan and favorite channel functions
- Dual/tri-watch function for monitoring CH16 and/or call channel
- Priority scan function
- Display and keypad backlighting
- External speaker connection
- Weather channel with weather alert
SPECIFICATION
General
Frequency range
|
TX
|
156.025–157.425 MHz |
RX
|
156.050–163.275 MHz |
|
CH70
|
156.525 MHz |
|
Usable channels
|
USA, CAN, INT, WX channels |
|
Type of emission
|
16K0G3E (FM), 16K0G2B (DSC) |
|
Power supply requirement
|
13.8 V DC nominal |
|
Current drain
|
TX 25W output
|
5 A |
RX AF max.
|
1.2 A |
|
Operating temperature range
|
–20°C to +60°C; –4°F to +140°F |
|

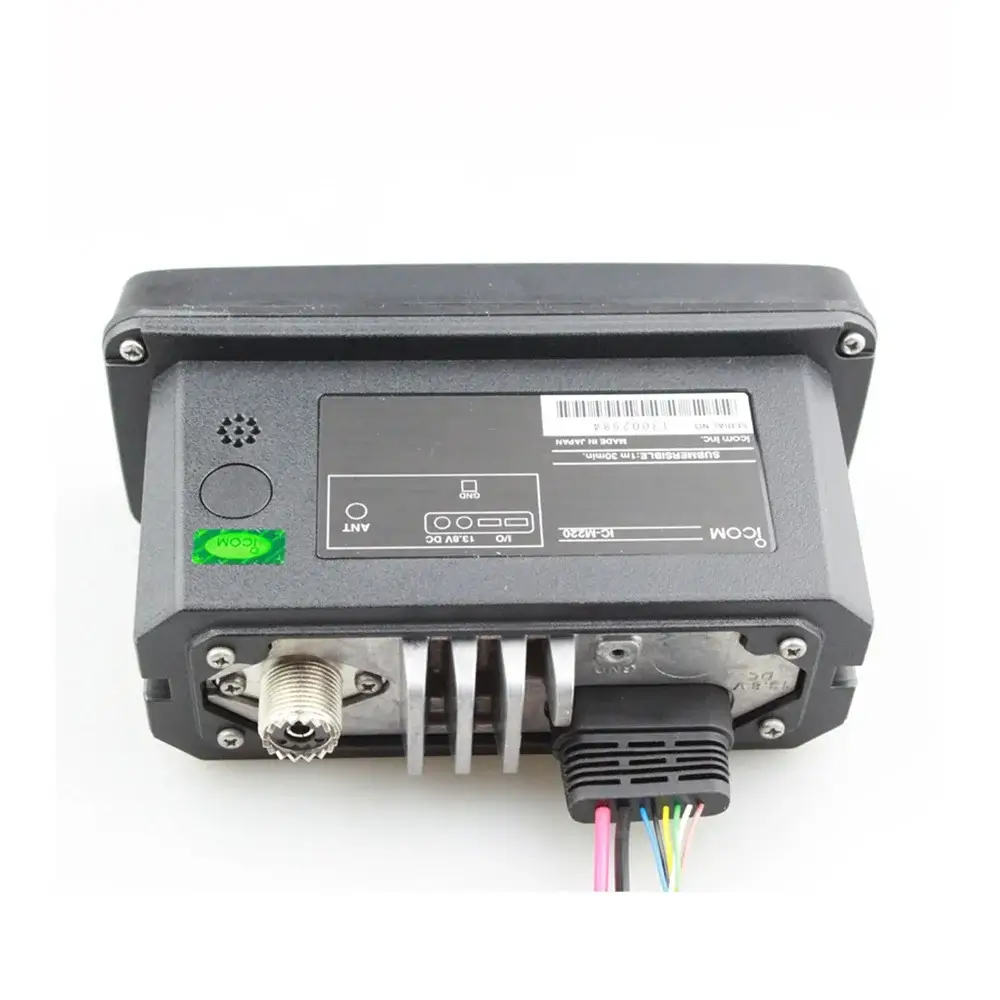

Antenna impedance
|
50 Ω(SO-239) |
|
Dimensions (W×H×D)
|
156.5×66.5×110.1 mm; |
|
Weight (approx.)
|
700 g; 1.5 lb (with HM-237B) |
|
NMEA formats
|
Input
|
RMC, GGA, GNS, GLL, VTG |
Output
|
DSC, DSE, RMC, GSA, GSV |
Transmitter
Output power (at 13.8 V DC)
|
25 W, 1 W |
Max. frequency deviation
|
±5 kHz |
Frequency tolerance
|
±5 ppm |
Spurious emissions
|
Less than –60 dBc |
Receiver
Sensitivity
|
Main
|
–13 dBµ typ. (12 dB SINAD) |
DSC
|
–5 dBµ emf typ. (1% BER) |
|
Squelch sensitivity
|
Less than –10 dBμ |
|
Adjacent channel
|
Main
|
More than 68 dB |
DSC
|
More than 68 dBμ emf (1% BER) |
|
Intermodulation
|
Main
|
More than 63 dB |
DSC
|
More than 55 dBμ emf (1% BER) |
|
Sensitivity
|
–14 dBμ typ. (at 12 dB SINAD) |
|
Hum and noise
|
More than 40 dB |
|
Audio output power
|
4.5 W typical |
Measurements made in accordance with TIA/EIA 603. All stated specifications are subject to change without notice or obligation.
Applicable IP Rating
Ingress Protection Standard
|
|
Water
|
IPX7 (Waterproof protection) |
