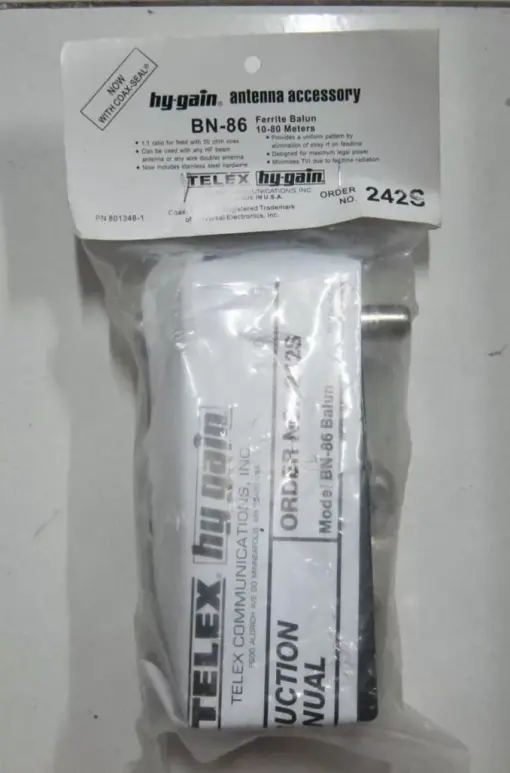

The BN-86 Broadband Balun is a device that is used to convert an unbalanced signal (coaxial cable) to a balanced signal (twin-lead wire) or vice versa. This is useful when you need to connect an unbalanced device, such as a coaxial cable, to a balanced device, such as a dipole antenna.

The BN-86 Balun has several advantages:

1. Wide frequency range: The BN-86 Balun is designed to work across a wide frequency range, typically from 1.8 to 40 MHz, making it suitable for use with a variety of antennas.
2. Low insertion loss: The device has low insertion loss, which means that it does not significantly reduce the signal strength or quality as it passes through the device.
3. High power handling capacity: The BN-86 Balun is designed to handle high power levels, typically up to 2 kW, making it suitable for use with high-power transmitters.
4. Compact and lightweight: The device is small and lightweight, making it easy to install and transport.
5. Durable and weather-resistant: The BN-86 Balun is designed to be durable and weather-resistant, making it suitable for outdoor use in a variety of weather conditions.

Overall, the BN-86 Broadband Balun is a useful device for converting unbalanced signals to balanced signals, and it offers a wide frequency range, low insertion loss, high power handling capacity, compact size, and durability.

SPESIFIKASI

Electrical

• Impedance 50 Ohms
• Frequency Range 3 – 30 Mhz
• Insertion Loss less than 1dB
• Power Handling Capabilities 2kW PEP at less than 2:1 VSWR , 500 W PEP at less than 3:1 VSWR

Mechanical

• Weight 1 lb (1 Kg)
• Dimensions 8.3 x 15.9 Cm
• Input Receptacle SO 239
• Output Receptacle Standard Terminal Lugs
• Weather Protection weatherproof housing with condensing drain opening
• Housing Material hight impact injection molded, Cycolac Plastic
