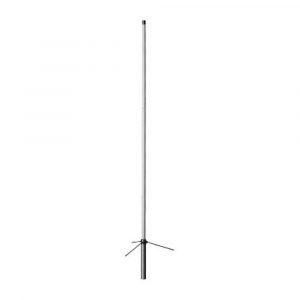

D Antenna BC200LL UHF

The D Antenna BC200LL UHF 320-380 MHz is a variant of the BC200LL antenna that is designed to operate specifically in the UHF frequency range of 320-380 MHz. Here are some of its advantages:

1. Wide frequency range: The BC200LL UHF antenna covers a wide frequency range, from 320 to 380 MHz, making it suitable for a variety of communication applications within this range.
2. High gain: The antenna has a high gain, which means that it can receive weak signals and transmit strong signals over a long distance within the UHF frequency range.
3. Low VSWR: The antenna has a low Voltage Standing Wave Ratio (VSWR), which means that it has a good impedance match with the transmitter or receiver, resulting in less signal loss within the UHF frequency range.
4. Durable and weather-resistant: The BC200LL UHF antenna is designed to be durable and weather-resistant, making it suitable for outdoor use in a variety of weather conditions within the UHF frequency range.
5. Easy to install: The antenna is easy to install and can be mounted on a variety of surfaces, including poles, towers, and walls, within the UHF frequency range.

Overall, the D Antenna BC200LL UHF 320-380 MHz is a high-performance broadband log-periodic dipole array antenna that offers a wide frequency range, high gain, low VSWR, durability, and ease of installation specifically within the UHF frequency range of 320-380 MHz.

Features:

• Fiberglass radomes
• Overlapping outer shells for added strength
• Strong waterproof joint couplings
• Stainless steel hardware
• Wide band performance
• Factory adjusted – no tuning required
• Highest gain
• High wind rating
• DC grounded

Specifications D Antenna  BC200LL

• BC200LL: 320 to 380MHz with Cutting Chart
• Length:1.7m
• Weight:0.9kg
• Gain:5.5dB
• Max.power rating:200W
• Impedance:50ohms
• VSWR:Less than 1.5:1
• Rated wind velocity:60m/sec.
• Mast diameter accepted:30-62φ
• Connector:MJ PL Female
• Type:omnidirectional 2×5/8λ,FRP outershel
