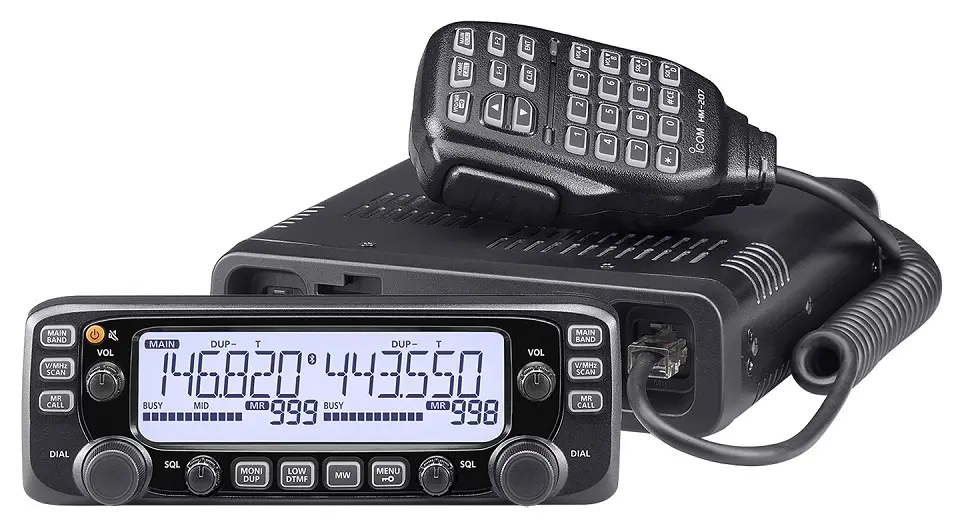

Icom IC-2730A radio rig mobil dual band bekerja pada frekwensi VHF 136 – 174 dan UHF 400 – 470 MHz Dual Wacth dengan power 50 Watt
Practical Dual Band 50 Watt with Optional Bluetooth® Headset
VHF/VHF, UHF/UHF Simultaneous Receive
The IC-2730A provides VHF/VHF, UHF/UHF simultaneous receive capability as well as VHF/UHF receive. Main dials, volume, squelch knobs and primal buttons are symmetrically laid out for each band.
Optional VS-3 Bluetooth® Headset
Optional VS-3 Bluetooth® headset
The optional VS-3 Bluetooth® headset can wirelessly control the IC-2730A with three programmable keys and a PTT button. It also provides VOX operation for hands-free communication.
Easy-to-See Large White Backlit LCD
The display size of the IC-2730A is 1.5 times larger than its predecessor, the IC-2720H. Frequency display and channel names are larger, and the white backlit provides higher contrast.
Easy Controller Mounting with the Optional MBF-1
Photo includes optional MBF-1 and MBA-5
The combination of the optional MBF-1 suction cup mounting base and MBA-5 controller bracket provides easy tilt and swivel adjustments. The large suction cup can be mounted on flat surfaces and can be removed easily.
50 watts of output on VHF and UHF
The IC-2730A employs a durable PA module and delivers 50 watts of high power operation on both VHF and UHF bands.
Built-in 50 CTCSS and 104 DTCS tones with Split Tone Function
The CTCSS and DTCS tones are built-in for quiet stand-by and repeater access. The split tone function allows you to set CTCSS/DTCS tones separately for repeater uplink and downlink on a per channel basis.
Controller Attachment to the Main Unit with Optional MBA-4
With the optional MBA-4 combination bracket, the controller can be attached to the main unit. The microphone jacks are mounted on both the controller and main unit.
The IC-2730A covers 118–174 and 375–550MHz. You will be able to listen to aviation, marine, weather channels and other utility communications.
Optional Active Noise Canceling Microphone
The optional active noise canceling microphone HM-209 can automatically reduce noise in extremely noisy environments and assist in transmitting clear and accurate audio.
|Frequency coverage||USA Version||Transmit: 144–148, 430–450MHz
Receive: 118–174, 375–550MHz*1
|Export Version||Transmit: 137–174, 400–470MHz*2
Receive: 118–174, 375–550MHz*2
|No. of memory channels||1052 channels
(including 50 scan edges and 2 Call)
|Type of emission||F2D, F3E (FM, FM-N)|
|Power supply requirement||13.8V DC ±15%|
|Antenna impedance||50Ω (SO-239)|
|Operating temperature range||−10°C to +60°C; 14°F to +140°F|
(W×H×D Projections are not included.)
|Main unit||150×40×151 mm;
|Weight (approx.)||Main unit||1.2 kg; 2.65 lb|
|Controller||140 g; 4.94 oz|
|Output power (at 13.8V DC)||50W, 15W, 5W|
|TPE version||25W, 15W, 5W|
|Max. frequency deviation||±5.0kHz/±2.5kHz (W/N)|
|Spurious emissions||Less than −60dBc|
|Microphone impedance||600Ω (8-pin modular)|
|Intermediate frequencies||A band||38.85MHz/450kHz|
|Sensitivity (at 12dB SINAD)||Less than 0.18μV|
|Selectivity||More than 60dB/55dB (W/N)|
|Spurious response rejection||A band||More than 60dB/55dB (V/U)|
|B band||More than 60dB/60dB (V/U)|
|Audio output power||More than 2W (10% dist. 8Ω)|
|External speaker connector||2 conductor 3.5 (d) mm (1/8″)/8Ω|
(Not guaranteed, for your reference only)
|137–159.995MHz*: Less than 0.32μV
160–174.000MHz: Less than 0.56μV
375–399.995MHz: Less than 0.56μV
400–499.995MHz*: Less than 0.32μV
500–550.000MHz: Less than 0.56μV
|118–136.991MHz: Less than 1μV|
Applicable U.S. Military Specifications
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
|High Temperature||501.5||I, II|
|Low Temperature||502.5||I, II|
Also meets equivalent MIL-STD-810-C, -D -E and -F.
All stated specifications are subject to change without notice or obligation.
